Search › Compare › ACR30 × ACU30
ACR30
Toyota ESTIMA-EMINA-LUCIDA — 24 of 6,221 shared
ACU30
Toyota HARRIER — 24 of 5,987 shared

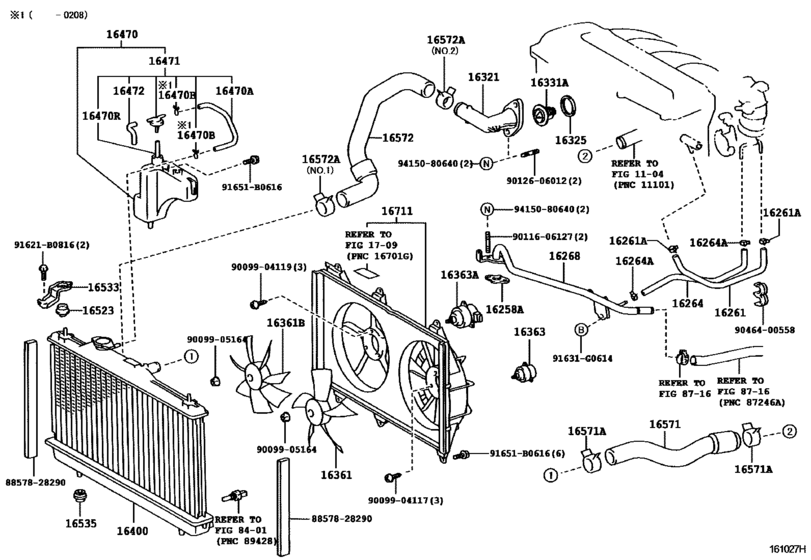

Radiator & Water Outlet ([02.2000 - 04.2003] (0002-0304)2AZFE) 24 / 58
| # | OEM | ACR30 | ACU30 |
|---|---|---|---|
| 16258 | 16258-28010 | Gasket(For Heater Return) | Gasket(For Heater Return) |
| 16258 | 16258-28030 | Gasket(For Heater Return) | Gasket(For Heater Return) |
| 16261 | 16261-28020 | Hose, Water By-Pass | Hose, Water By-Pass |
| 16261 | 96135-41300 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 16261 | 96135-51300 | Clamp, Hose | Clamp, Hose |
| 16264 | 16264-28020 | Hose, Water By-Pass, No.2 | Hose, Water By-Pass, No.2 |
| 16268 | 16268-28010 | Pipe, Water By-Pass, No.1 | Pipe, Water By-Pass, No.1 |
| 16325 | 16325-28010 | Gasket, Water Inlet Housing, No.1 | Gasket, Water Inlet Housing, No.1 |
| 16325 | 16325-62010 | Gasket, Water Inlet Housing, No.1 | Gasket, Water Inlet Housing, No.1 |
| 16331 | 90916-03084 | Thermostat | Thermostat |
| 16331 | 90916-03129 | Thermostat | Thermostat |
| 16331 | 90916-03136 | Thermostat | Thermostat |
| 16400 | 16492-21050 | Ring, O(For Oil Cooler Drain Cock) | Ring, O(For Oil Cooler Drain Cock) |
| 16470 | 90467-11085 | Clamp Or Clip(For Radiator Breather Hose) | Clamp Or Clip(For Radiator Breather Hose) |
| 16535 | 16535-74210 | Support, Radiator, Lower | Support, Radiator, Lower |
| 91621 | 91621-B0816 | BOLT WWASHER | BOLT WWASHER |
| 91631 | 91631-G0614 | BOT WWASHER | BOT WWASHER |
| 91651 | 91651-B0616 | BOLT WWASHER | BOLT WWASHER |
| 9009904117 | 90099-04117 | Bolt, Radiator Side Support Plate | Bolt, Radiator Side Support Plate |
| 9009904119 | 90099-04119 | BOLT WASHER HEAD | BOLT WASHER HEAD |
| 9009905164 | 90099-05164 | Nut | Nut |
| 9011606127 | 90116-06127 | Bolt, Stud(For Oil Pan) | Bolt, Stud(For Oil Pan) |
| 9046400558 | 90464-00558 | Clip Or Clamp (For Heater Water Hose) | Clip Or Clamp (For Heater Water Hose) |
| 9415080640 | 94150-80640 | NUT FLANGE | NUT FLANGE |
| # | OEM | ACR30 | ACU30 |
|---|---|---|---|
| 16258 | 16258-28010 | Gasket(For Heater Return) | Gasket(For Heater Return) |
| 16258 | 16258-28030 | Gasket(For Heater Return) | Gasket(For Heater Return) |
| 16261 | 16261-28020 | Hose, Water By-Pass | Hose, Water By-Pass |
| 16264 | 16264-28020 | Hose, Water By-Pass, No.2 | Hose, Water By-Pass, No.2 |
| 16268 | 16268-28010 | Pipe, Water By-Pass, No.1 | Pipe, Water By-Pass, No.1 |
| 16325 | 16325-28010 | Gasket, Water Inlet Housing, No.1 | Gasket, Water Inlet Housing, No.1 |
| 16325 | 16325-62010 | Gasket, Water Inlet Housing, No.1 | Gasket, Water Inlet Housing, No.1 |
| 16400 | 16492-21050 | Ring, O(For Oil Cooler Drain Cock) | Ring, O(For Oil Cooler Drain Cock) |
| 16535 | 16535-74210 | Support, Radiator, Lower | Support, Radiator, Lower |
| 9009904117 | 90099-04117 | Bolt, Radiator Side Support Plate | Bolt, Radiator Side Support Plate |
| 9009904119 | 90099-04119 | BOLT WASHER HEAD | BOLT WASHER HEAD |
| 9009905164 | 90099-05164 | Nut | Nut |
| 9011606127 | 90116-06127 | Bolt, Stud(For Oil Pan) | Bolt, Stud(For Oil Pan) |
| 9046400558 | 90464-00558 | Clip Or Clamp (For Heater Water Hose) | Clip Or Clamp (For Heater Water Hose) |
| 16470 | 90467-11085 | Clamp Or Clip(For Radiator Breather Hose) | Clamp Or Clip(For Radiator Breather Hose) |
| 16331 | 90916-03084 | Thermostat | Thermostat |
| 16331 | 90916-03129 | Thermostat | Thermostat |
| 16331 | 90916-03136 | Thermostat | Thermostat |
| 91621 | 91621-B0816 | BOLT WWASHER | BOLT WWASHER |
| 91631 | 91631-G0614 | BOT WWASHER | BOT WWASHER |
| 91651 | 91651-B0616 | BOLT WWASHER | BOLT WWASHER |
| 9415080640 | 94150-80640 | NUT FLANGE | NUT FLANGE |
| 16261 | 96135-41300 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 16261 | 96135-51300 | Clamp, Hose | Clamp, Hose |
