Search › Compare › ACR30 × ACU30
ACR30
Toyota ESTIMA-EMINA-LUCIDA — 21 of 6,221 shared
ACU30
Toyota HARRIER — 21 of 5,987 shared

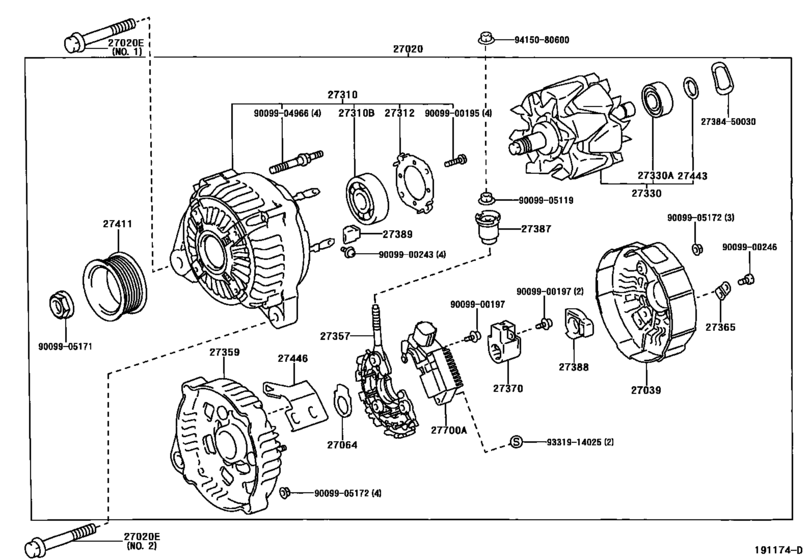

Alternator ([02.2000 - 04.2003] 12V 100A (0002-0304)2AZFE) 21 / 43
| # | OEM | ACR30 | ACU30 |
|---|---|---|---|
| 27020 | 27060-28190 | Alternator Assy | Alternator Assy |
| 27020 | 91511-60840 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91511-J0840 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91512-81085 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91551-80840 | Bolt(For Head To Camshaft Bearing Cap) | Bolt(For Head To Camshaft Bearing Cap) |
| 27039 | 27039-27060 | Cover, Alternator Rear End | Cover, Alternator Rear End |
| 27064 | 27064-42010 | Seal, Alternator Plate | Seal, Alternator Plate |
| 27310 | 27310-28120 | Frame Assy, Drive End, Alternator | Frame Assy, Drive End, Alternator |
| 27310 | 90099-10142 | Bearing(For Alternator Drive End Frame) | Bearing(For Alternator Drive End Frame) |
| 27312 | 27312-72100 | Plate, Bearing Retainer, Alternator | Plate, Bearing Retainer, Alternator |
| 27330 | 27330-30070 | Rotor Assy, Alternator | Rotor Assy, Alternator |
| 27330 | 90099-10140 | Bearing(For Alternator Rotor) | Bearing(For Alternator Rotor) |
| 27370 | 27370-58460 | Holder Assy, Alternator Brush | Holder Assy, Alternator Brush |
| 27387 | 27387-20130 | Insulator, Terminal | Insulator, Terminal |
| 27411 | 27411-28060 | Pulley, Alternator | Pulley, Alternator |
| 27443 | 27443-63020 | Cover, Alternator Bearing | Cover, Alternator Bearing |
| 27446 | 27446-28120 | Clip, Alternator Cord | Clip, Alternator Cord |
| 2738450030 | 27384-50030 | Holder, Alternator Brush, A | Holder, Alternator Brush, A |
| 9009900197 | 90099-00197 | Screw | Screw |
| 9009905171 | 90099-05171 | Nut(For Alternator Pulley) | Nut(For Alternator Pulley) |
| 9415080600 | 94150-80600 | NUT FLANGE | NUT FLANGE |
| # | OEM | ACR30 | ACU30 |
|---|---|---|---|
| 27039 | 27039-27060 | Cover, Alternator Rear End | Cover, Alternator Rear End |
| 27020 | 27060-28190 | Alternator Assy | Alternator Assy |
| 27064 | 27064-42010 | Seal, Alternator Plate | Seal, Alternator Plate |
| 27310 | 27310-28120 | Frame Assy, Drive End, Alternator | Frame Assy, Drive End, Alternator |
| 27312 | 27312-72100 | Plate, Bearing Retainer, Alternator | Plate, Bearing Retainer, Alternator |
| 27330 | 27330-30070 | Rotor Assy, Alternator | Rotor Assy, Alternator |
| 27370 | 27370-58460 | Holder Assy, Alternator Brush | Holder Assy, Alternator Brush |
| 2738450030 | 27384-50030 | Holder, Alternator Brush, A | Holder, Alternator Brush, A |
| 27387 | 27387-20130 | Insulator, Terminal | Insulator, Terminal |
| 27411 | 27411-28060 | Pulley, Alternator | Pulley, Alternator |
| 27443 | 27443-63020 | Cover, Alternator Bearing | Cover, Alternator Bearing |
| 27446 | 27446-28120 | Clip, Alternator Cord | Clip, Alternator Cord |
| 9009900197 | 90099-00197 | Screw | Screw |
| 9009905171 | 90099-05171 | Nut(For Alternator Pulley) | Nut(For Alternator Pulley) |
| 27330 | 90099-10140 | Bearing(For Alternator Rotor) | Bearing(For Alternator Rotor) |
| 27310 | 90099-10142 | Bearing(For Alternator Drive End Frame) | Bearing(For Alternator Drive End Frame) |
| 27020 | 91511-60840 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91511-J0840 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91512-81085 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91551-80840 | Bolt(For Head To Camshaft Bearing Cap) | Bolt(For Head To Camshaft Bearing Cap) |
| 9415080600 | 94150-80600 | NUT FLANGE | NUT FLANGE |
