Search › Compare › AA34S × AF34S
AA34S
Suzuki CULTUS — 23 of 2,924 shared
AF34S
Suzuki CULTUS — 23 of 3,665 shared

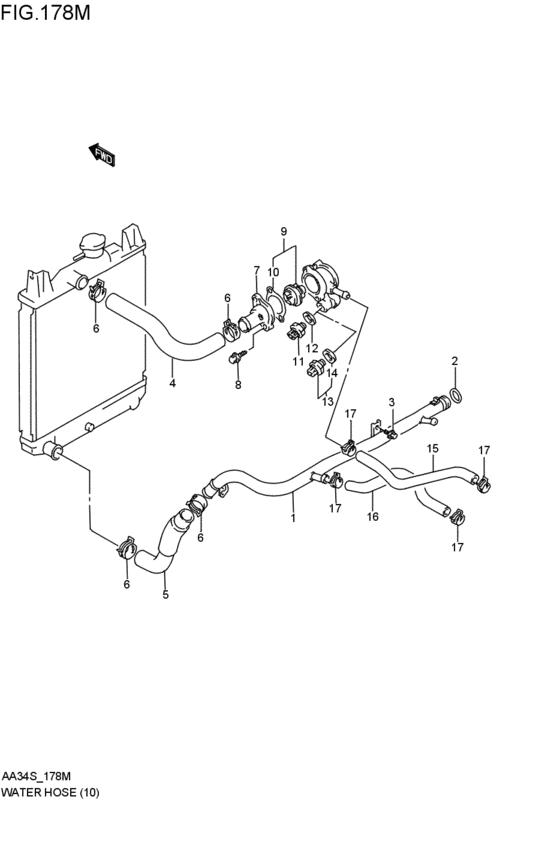

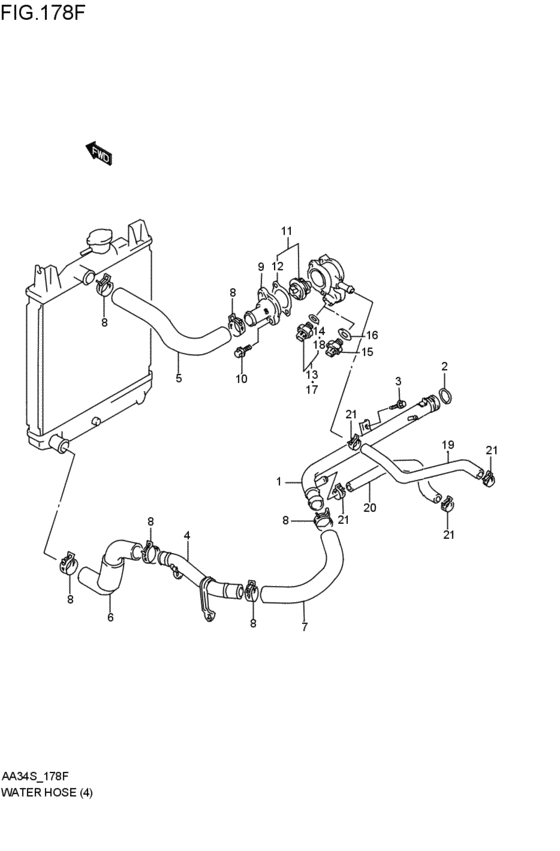

water hose (2WD:MT:DOHC; 1988-08-01~) 23 / 32
| # | OEM | AA34S | AF34S |
|---|---|---|---|
| 2 | 09280-28008-000 | O RING(D:3.5,ID:27.7) | O RING(D:3.5,ID:27.7) |
| 3 | 01550-06103-000 | Bolt, front | Bolt, front |
| 3 | 01550-0610B-000 | Bolt | Bolt |
| 3 | 01550-0610A-000 | Bolt | Bolt |
| 5 | 17852-64B00-000 | HOSE,RADIATOR INLET | HOSE,RADIATOR INLET |
| 8 | 09401-30403-000 | CLIP | CLIP |
| 8 | 09401-30405-000 | CLIP | CLIP |
| 9 | 17561-60B00-000 | CAP,WATER THERMOSTAT | CAP,WATER THERMOSTAT |
| 10 | 01550-08253-000 | Bolt, rear | Bolt, rear |
| 10 | 01550-0825B-000 | Bolt | Bolt |
| 10 | 01550-0825A-000 | Bolt | Bolt |
| 11 | 17600-85811-000 | THERMOSTAT SET,WATER 82 DEG | THERMOSTAT SET,WATER 82 DEG |
| 11 | 17600-85821-000 | THERMOSTAT SET,WATER 88 DEG | THERMOSTAT SET,WATER 88 DEG |
| 12 | 17569-82001-H17 | GASKET,WTR THERMO CAP | GASKET,WTR THERMO CAP |
| 13 | 17600-70821-000 | SWITCH SET,COOLING FAN | SWITCH SET,COOLING FAN |
| 15 | 17600-70811-000 | SWITCH SET,COOLING FAN | SWITCH SET,COOLING FAN |
| 16 | 09168-16009-000 | GASKET(16X22X0.8) | GASKET(16X22X0.8) |
| 17 | 17680-50F10-000 | SWITCH,FAN THERMO | SWITCH,FAN THERMO |
| 17 | 17680-50F11-000 | Switch Comp,rdtr Fan | Switch Comp,rdtr Fan |
| 18 | 17689-50F00-000 | O-RING | O-RING |
| 19 | 17871-64B01-000 | ホース,ヒータ,インレット | ホース,ヒータ,インレット |
| 19 | 17871-64BV0-000 | HOSE ASSY,HEATER | HOSE ASSY,HEATER |
| 21 | 09401-18403-000 | CLIP - Clip, heater hose | CLIP - Clip, heater hose |
| # | OEM | AA34S | AF34S |
|---|---|---|---|
| 17 | 01550-06103-000 | Bolt, front | Bolt, front |
| 17 | 01550-0610A-000 | Bolt | Bolt |
| 17 | 01550-0610B-000 | Bolt | Bolt |
| 26 | 01550-08253-000 | Bolt, rear | Bolt, rear |
| 26 | 01550-0825A-000 | Bolt | Bolt |
| 26 | 01550-0825B-000 | Bolt | Bolt |
| 16 | 09168-16009-000 | GASKET(16X22X0.8) | GASKET(16X22X0.8) |
| 12 | 09280-28008-000 | O RING(D:3.5,ID:27.7) | O RING(D:3.5,ID:27.7) |
| 21 | 09401-18403-000 | CLIP - Clip, heater hose | CLIP - Clip, heater hose |
| 8 | 09401-30403-000 | CLIP | CLIP |
| 8 | 09401-30405-000 | CLIP | CLIP |
| 9 | 17561-60B00-000 | CAP,WATER THERMOSTAT | CAP,WATER THERMOSTAT |
| 11 | 17569-82001-H17 | GASKET,WTR THERMO CAP | GASKET,WTR THERMO CAP |
| 15 | 17600-70811-000 | SWITCH SET,COOLING FAN | SWITCH SET,COOLING FAN |
| 13 | 17600-70821-000 | SWITCH SET,COOLING FAN | SWITCH SET,COOLING FAN |
| 11 | 17600-85811-000 | THERMOSTAT SET,WATER 82 DEG | THERMOSTAT SET,WATER 82 DEG |
| 11 | 17600-85821-000 | THERMOSTAT SET,WATER 88 DEG | THERMOSTAT SET,WATER 88 DEG |
| 17 | 17680-50F10-000 | SWITCH,FAN THERMO | SWITCH,FAN THERMO |
| 17 | 17680-50F11-000 | Switch Comp,rdtr Fan | Switch Comp,rdtr Fan |
| 18 | 17689-50F00-000 | O-RING | O-RING |
| 5 | 17852-64B00-000 | HOSE,RADIATOR INLET | HOSE,RADIATOR INLET |
| 19 | 17871-64B01-000 | ホース,ヒータ,インレット | ホース,ヒータ,インレット |
| 19 | 17871-64BV0-000 | HOSE ASSY,HEATER | HOSE ASSY,HEATER |
