Search › Compare › AA34S × AF34S
AA34S
Suzuki CULTUS — 19 of 2,924 shared
AF34S
Suzuki CULTUS — 19 of 3,665 shared

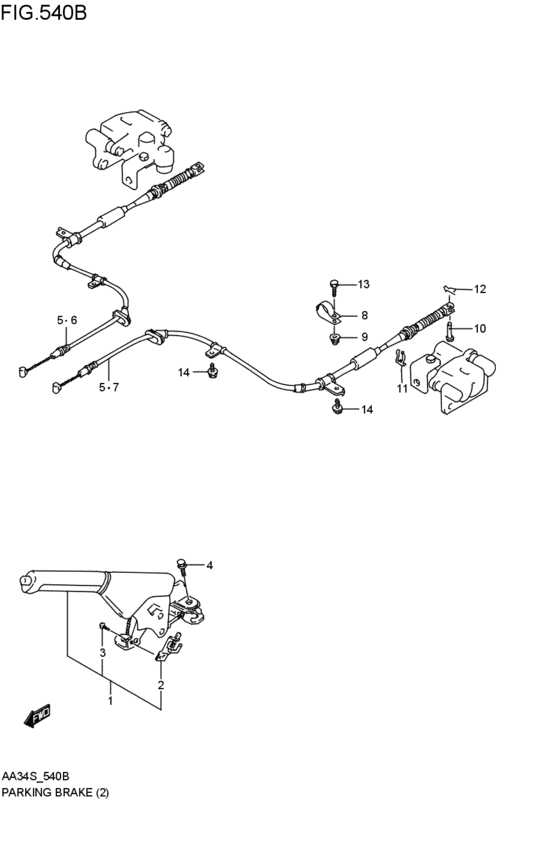

parking brakes (GTI; 1988-08-01~) 19 / 20
| # | OEM | AA34S | AF34S |
|---|---|---|---|
| 1 | 54100-60B00-5ES | LEVER ASSY,PARK BK | LEVER ASSY,PARK BK |
| 2 | 37940-60A10-000 | SWITCH ASSY,PARKING BRAKE | SWITCH ASSY,PARKING BRAKE |
| 3 | 02142-04103-000 | Screw 4x10 | Screw 4x10 |
| 3 | 02142-0410A-000 | SCREW | SCREW |
| 4 | 01570-08163-000 | Bolt - Bolt, upper | Bolt - Bolt, upper |
| 4 | 01570-0816A-000 | Bolt | Bolt |
| 8 | 54491-79000-000 | BAND,CABLE | BAND,CABLE |
| 9 | 08319-31063-000 | Nut | Nut |
| 9 | 08319-3106A-000 | NUT | NUT |
| 9 | 09159-06071-000 | NUT | NUT |
| 10 | 09200-06064-000 | PIN | PIN |
| 11 | 09383-13001-000 | E RING | E RING |
| 11 | 09383-13003-000 | E-RING | E-RING |
| 12 | 09385-06012-000 | CLIP | CLIP |
| 13 | 09116-06146-000 | BOLT(6X25) - Bolt (6x20) | BOLT(6X25) - Bolt (6x20) |
| 13 | 09116-06150-000 | BOLT(6X25) - Bolt, air cleaner chamber | BOLT(6X25) - Bolt, air cleaner chamber |
| 14 | 01570-06123-000 | Bolt | Bolt |
| 14 | 01570-0612B-000 | Bolt - Bolt, upper | Bolt - Bolt, upper |
| 14 | 01570-0612A-000 | Bolt | Bolt |
| # | OEM | AA34S | AF34S |
|---|---|---|---|
| 3 | 01570-06123-000 | Bolt | Bolt |
| 3 | 01570-0612A-000 | Bolt | Bolt |
| 3 | 01570-0612B-000 | Bolt - Bolt, upper | Bolt - Bolt, upper |
| 24 | 01570-08163-000 | Bolt - Bolt, upper | Bolt - Bolt, upper |
| 24 | 01570-0816A-000 | Bolt | Bolt |
| 3 | 02142-04103-000 | Screw 4x10 | Screw 4x10 |
| 3 | 02142-0410A-000 | SCREW | SCREW |
| 9 | 08319-31063-000 | Nut | Nut |
| 9 | 08319-3106A-000 | NUT | NUT |
| 13 | 09116-06146-000 | BOLT(6X25) - Bolt (6x20) | BOLT(6X25) - Bolt (6x20) |
| 13 | 09116-06150-000 | BOLT(6X25) - Bolt, air cleaner chamber | BOLT(6X25) - Bolt, air cleaner chamber |
| 9 | 09159-06071-000 | NUT | NUT |
| 10 | 09200-06064-000 | PIN | PIN |
| 21 | 09383-13001-000 | E RING | E RING |
| 21 | 09383-13003-000 | E-RING | E-RING |
| 12 | 09385-06012-000 | CLIP | CLIP |
| 2 | 37940-60A10-000 | SWITCH ASSY,PARKING BRAKE | SWITCH ASSY,PARKING BRAKE |
| 1 | 54100-60B00-5ES | LEVER ASSY,PARK BK | LEVER ASSY,PARK BK |
| 8 | 54491-79000-000 | BAND,CABLE | BAND,CABLE |
