AA34S
Suzuki CULTUS — 23 of 2,924 shared
AF34S
Suzuki CULTUS — 23 of 3,665 shared

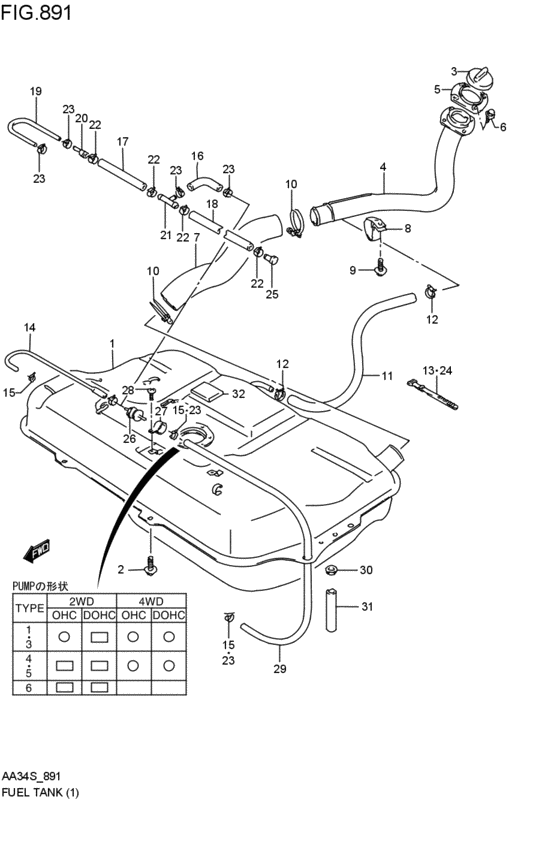

fuel tank (2WD; 1988-08-01~) 23 / 42
| # | OEM | AA34S | AF34S |
|---|---|---|---|
| 2 | 09118-08142-000 | Bolt, muffler support | Bolt, muffler support |
| 2 | 09118-08118-000 | BOLT(8X20) | BOLT(8X20) |
| 3 | 89260-70G01-000 | Cap assy, fuel filler | Cap assy, fuel filler |
| 3 | 89260-73H00-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 3 | 89260-82101-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 5 | 89285-75F00-000 | PACKING,FUEL FILLER | PACKING,FUEL FILLER |
| 5 | 89285-82000-000 | PACKING | PACKING |
| 5 | 85365-69000-000 | GASKET,FUEL FILLER NECK | GASKET,FUEL FILLER NECK |
| 6 | 09116-05014-000 | BOLT(5X20) | BOLT(5X20) |
| 9 | 09118-06101-000 | BOLT(6X12) | BOLT(6X12) |
| 10 | 09400-52312-000 | CLAMP | CLAMP |
| 12 | 09401-15404-000 | CLIP | CLIP |
| 13 | 09407-22403-000 | CLAMP(L:220) | CLAMP(L:220) |
| 14 | 09355-54115-600 | HOSE(5.4X11.4X600) - Hose, vacuum | HOSE(5.4X11.4X600) - Hose, vacuum |
| 15 | 09401-10409-000 | CLIP | CLIP |
| 24 | 09407-12402-000 | CLAMP(L:120) - Clamp, wiring harness | CLAMP(L:120) - Clamp, wiring harness |
| 26 | 85451-75100-000 | VALVE,2WAY CHECK - Valve, check | VALVE,2WAY CHECK - Valve, check |
| 27 | 89485-60B00-000 | CLAMP,CHECK VALVE | CLAMP,CHECK VALVE |
| 28 | 02112-05083-000 | Screw | Screw |
| 28 | 02112-0508A-000 | SCREW | SCREW |
| 29 | 09355-54115-00B | HOSE(5.4X11.4X2000) | HOSE(5.4X11.4X2000) |
| 31 | 89489-63B00-000 | PROTECTOR,VALVE OUTLET HOSE | PROTECTOR,VALVE OUTLET HOSE |
| 32 | 89521-60B01-000 | PAD,FUEL TANK | PAD,FUEL TANK |
| # | OEM | AA34S | AF34S |
|---|---|---|---|
| 7 | 02112-05083-000 | Screw | Screw |
| 7 | 02112-0508A-000 | SCREW | SCREW |
| 6 | 09116-05014-000 | BOLT(5X20) | BOLT(5X20) |
| 9 | 09118-06101-000 | BOLT(6X12) | BOLT(6X12) |
| 2 | 09118-08118-000 | BOLT(8X20) | BOLT(8X20) |
| 2 | 09118-08142-000 | Bolt, muffler support | Bolt, muffler support |
| 29 | 09355-54115-00B | HOSE(5.4X11.4X2000) | HOSE(5.4X11.4X2000) |
| 9 | 09355-54115-600 | HOSE(5.4X11.4X600) - Hose, vacuum | HOSE(5.4X11.4X600) - Hose, vacuum |
| 10 | 09400-52312-000 | CLAMP | CLAMP |
| 15 | 09401-10409-000 | CLIP | CLIP |
| 19 | 09401-15404-000 | CLIP | CLIP |
| 24 | 09407-12402-000 | CLAMP(L:120) - Clamp, wiring harness | CLAMP(L:120) - Clamp, wiring harness |
| 13 | 09407-22403-000 | CLAMP(L:220) | CLAMP(L:220) |
| 5 | 85365-69000-000 | GASKET,FUEL FILLER NECK | GASKET,FUEL FILLER NECK |
| 26 | 85451-75100-000 | VALVE,2WAY CHECK - Valve, check | VALVE,2WAY CHECK - Valve, check |
| 3 | 89260-70G01-000 | Cap assy, fuel filler | Cap assy, fuel filler |
| 3 | 89260-73H00-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 3 | 89260-82101-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 5 | 89285-75F00-000 | PACKING,FUEL FILLER | PACKING,FUEL FILLER |
| 5 | 89285-82000-000 | PACKING | PACKING |
| 27 | 89485-60B00-000 | CLAMP,CHECK VALVE | CLAMP,CHECK VALVE |
| 31 | 89489-63B00-000 | PROTECTOR,VALVE OUTLET HOSE | PROTECTOR,VALVE OUTLET HOSE |
| 32 | 89521-60B01-000 | PAD,FUEL TANK | PAD,FUEL TANK |
