Search › Compare › AA34S × AF34S
AA34S
Suzuki CULTUS — 12 of 2,924 shared
AF34S
Suzuki CULTUS — 12 of 3,665 shared

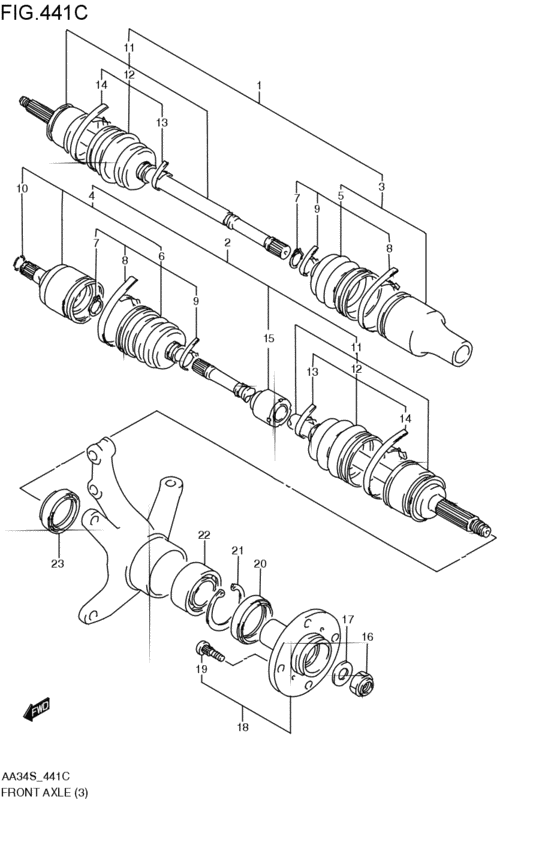

front axle (2WD:MT:(GTI,2DR:RE); 1988-08-01~) 12 / 27
| # | OEM | AA34S | AF34S |
|---|---|---|---|
| 10 | 09381-24001-000 | RING,SNAP - Ring (od:24,d:1.6) | RING,SNAP - Ring (od:24,d:1.6) |
| 13 | 44124-60A00-000 | BAND | BAND |
| 14 | 44121-60A00-000 | クランプ,ブーツ | クランプ,ブーツ |
| 14 | 44121-60A01-000 | CLAMP,BOOT | CLAMP,BOOT |
| 16 | 09159-18008-000 | NUT | NUT |
| 17 | 09160-18017-000 | WASHER(18X35X4) | WASHER(18X35X4) |
| 18 | 43420-50840-000 | HUB SET,FR WHL | HUB SET,FR WHL |
| 19 | 09119-12012-000 | BOLT(12X38) | BOLT(12X38) |
| 20 | 09283-56002-000 | SEAL,OIL(56X72.2X7.8) | SEAL,OIL(56X72.2X7.8) |
| 21 | 09381-72002-000 | RING,SNAP | RING,SNAP |
| 22 | 09267-40001-000 | BEARING(40X72X36) | BEARING(40X72X36) |
| 23 | 43430-60810-000 | SEAL SET,WHEEL BEARING OIL | SEAL SET,WHEEL BEARING OIL |
| # | OEM | AA34S | AF34S |
|---|---|---|---|
| 19 | 09119-12012-000 | BOLT(12X38) | BOLT(12X38) |
| 16 | 09159-18008-000 | NUT | NUT |
| 17 | 09160-18017-000 | WASHER(18X35X4) | WASHER(18X35X4) |
| 22 | 09267-40001-000 | BEARING(40X72X36) | BEARING(40X72X36) |
| 20 | 09283-56002-000 | SEAL,OIL(56X72.2X7.8) | SEAL,OIL(56X72.2X7.8) |
| 10 | 09381-24001-000 | RING,SNAP - Ring (od:24,d:1.6) | RING,SNAP - Ring (od:24,d:1.6) |
| 21 | 09381-72002-000 | RING,SNAP | RING,SNAP |
| 18 | 43420-50840-000 | HUB SET,FR WHL | HUB SET,FR WHL |
| 23 | 43430-60810-000 | SEAL SET,WHEEL BEARING OIL | SEAL SET,WHEEL BEARING OIL |
| 14 | 44121-60A00-000 | クランプ,ブーツ | クランプ,ブーツ |
| 14 | 44121-60A01-000 | CLAMP,BOOT | CLAMP,BOOT |
| 13 | 44124-60A00-000 | BAND | BAND |
