Search › Compare › AA34S × AF34S
AA34S
Suzuki CULTUS — 29 of 2,924 shared
AF34S
Suzuki CULTUS — 29 of 3,665 shared

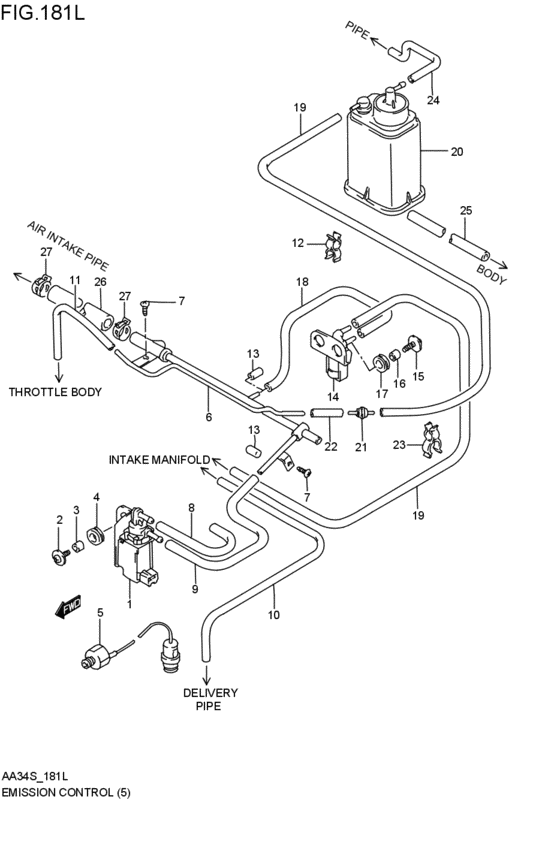

emission control (200001ヨリ; MT:DOHC; 1991-07-01~1994-10-01) 29 / 29
| # | OEM | AA34S | AF34S |
|---|---|---|---|
| 1 | 18117-64E00-000 | バルブ,ISC | バルブ,ISC |
| 2 | 09136-06086-000 | スクリュ,6X14 | スクリュ,6X14 |
| 2 | 09136-06133-000 | BOLT(6X16) - Screw | BOLT(6X16) - Screw |
| 3 | 09180-06106-000 | SPACER(6.8X10X7) | SPACER(6.8X10X7) |
| 4 | 09308-10004-000 | GROMMET | GROMMET |
| 5 | 18640-73G00-000 | SENSOR ASSY,KNOCK | SENSOR ASSY,KNOCK |
| 6 | 18340-64B63-000 | パイプ,バキューム | パイプ,バキューム |
| 7 | 02112-36103-000 | Screw | Screw |
| 7 | 02112-3610A-000 | SCREW | SCREW |
| 8 | 18476-64B00-000 | ホース,ISC,NO.2 | ホース,ISC,NO.2 |
| 8 | 09343-05395-000 | Hose - Hose, canister/fuel tank | Hose - Hose, canister/fuel tank |
| 9 | 09355-54115-600 | HOSE(5.4X11.4X600) - Hose, vacuum | HOSE(5.4X11.4X600) - Hose, vacuum |
| 10 | 09355-35754-600 | ホース,3.5X7.5X600 | ホース,3.5X7.5X600 |
| 10 | 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) |
| 10 | 09355-35006-601 | Hose(3.5X7.5X601) | Hose(3.5X7.5X601) |
| 12 | 09408-00067-000 | CLIP | CLIP |
| 13 | 09250-04003-000 | PLUG(OD:8) - Plug (od:8) | PLUG(OD:8) - Plug (od:8) |
| 13 | 07130-0510B-000 | Bolt - Bolt, sensor | Bolt - Bolt, sensor |
| 14 | 18117-64B50-000 | VALVE ASSY,VACUUM SWITCHING | VALVE ASSY,VACUUM SWITCHING |
| 20 | 18560-75C00-000 | CANISTER | CANISTER |
| 21 | 18565-84150-000 | バルブ,キャニスタパージ | バルブ,キャニスタパージ |
| 21 | 18565-84151-000 | VALVE,CANISTER PURGE | VALVE,CANISTER PURGE |
| 23 | 09408-00124-000 | CLIP | CLIP |
| 24 | 09355-45855-600 | HOSE(4.5X8.5X600) | HOSE(4.5X8.5X600) |
| 24 | 09355-45001-600 | Hose(4.5X8.5X600) | Hose(4.5X8.5X600) |
| 25 | 09355-70125-600 | HOSE(7X12X600) - Hose, fuel (pump to separator) | HOSE(7X12X600) - Hose, fuel (pump to separator) |
| 25 | 44421-12FR0-000 | HOSE | HOSE |
| 26 | 09355-13207-600 | HOSE(13X20X600) - Hose, breather | HOSE(13X20X600) - Hose, breather |
| 27 | 09401-18404-000 | CLIP | CLIP |
| # | OEM | AA34S | AF34S |
|---|---|---|---|
| 7 | 02112-36103-000 | Screw | Screw |
| 7 | 02112-3610A-000 | SCREW | SCREW |
| 13 | 07130-0510B-000 | Bolt - Bolt, sensor | Bolt - Bolt, sensor |
| 2 | 09136-06086-000 | スクリュ,6X14 | スクリュ,6X14 |
| 2 | 09136-06133-000 | BOLT(6X16) - Screw | BOLT(6X16) - Screw |
| 3 | 09180-06106-000 | SPACER(6.8X10X7) | SPACER(6.8X10X7) |
| 13 | 09250-04003-000 | PLUG(OD:8) - Plug (od:8) | PLUG(OD:8) - Plug (od:8) |
| 4 | 09308-10004-000 | GROMMET | GROMMET |
| 8 | 09343-05395-000 | Hose - Hose, canister/fuel tank | Hose - Hose, canister/fuel tank |
| 24 | 09355-13207-600 | HOSE(13X20X600) - Hose, breather | HOSE(13X20X600) - Hose, breather |
| 46 | 09355-35006-601 | Hose(3.5X7.5X601) | Hose(3.5X7.5X601) |
| 46 | 09355-35754-600 | ホース,3.5X7.5X600 | ホース,3.5X7.5X600 |
| 46 | 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) |
| 22 | 09355-45001-600 | Hose(4.5X8.5X600) | Hose(4.5X8.5X600) |
| 22 | 09355-45855-600 | HOSE(4.5X8.5X600) | HOSE(4.5X8.5X600) |
| 9 | 09355-54115-600 | HOSE(5.4X11.4X600) - Hose, vacuum | HOSE(5.4X11.4X600) - Hose, vacuum |
| 73 | 09355-70125-600 | HOSE(7X12X600) - Hose, fuel (pump to separator) | HOSE(7X12X600) - Hose, fuel (pump to separator) |
| 25 | 09401-18404-000 | CLIP | CLIP |
| 12 | 09408-00067-000 | CLIP | CLIP |
| 23 | 09408-00124-000 | CLIP | CLIP |
| 14 | 18117-64B50-000 | VALVE ASSY,VACUUM SWITCHING | VALVE ASSY,VACUUM SWITCHING |
| 1 | 18117-64E00-000 | バルブ,ISC | バルブ,ISC |
| 6 | 18340-64B63-000 | パイプ,バキューム | パイプ,バキューム |
| 8 | 18476-64B00-000 | ホース,ISC,NO.2 | ホース,ISC,NO.2 |
| 20 | 18560-75C00-000 | CANISTER | CANISTER |
| 21 | 18565-84150-000 | バルブ,キャニスタパージ | バルブ,キャニスタパージ |
| 21 | 18565-84151-000 | VALVE,CANISTER PURGE | VALVE,CANISTER PURGE |
| 5 | 18640-73G00-000 | SENSOR ASSY,KNOCK | SENSOR ASSY,KNOCK |
| 73 | 44421-12FR0-000 | HOSE | HOSE |
