Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 19 of 3,562 shared
A6I640
Suzuki EQUATOR — 19 of 2,457 shared

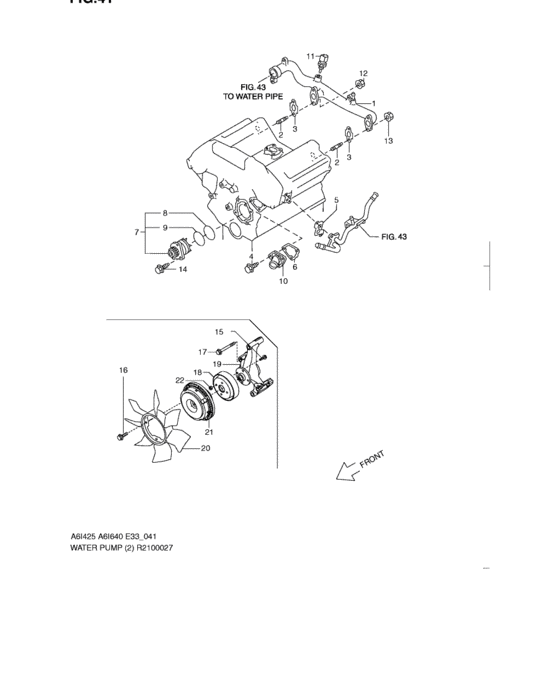

Water pump (VQ40DE) 19 / 19
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 17570-82Z20-000 | Case, water outlet | Case, water outlet |
| 2 | 14118-82Z60-000 | Bolt, stud | Bolt, stud |
| 3 | 17699-82Z20-000 | Gasket, wtr outlet case | Gasket, wtr outlet case |
| 3 | 17699-82Z30-000 | Casket, wtr outlet case | Casket, wtr outlet case |
| 4 | 11853-82Z00-000 | Bolt, eng hook | Bolt, eng hook |
| 5 | 17849-82Z00-000 | Gasket, thermostat case | Gasket, thermostat case |
| 6 | 17849-82Z10-000 | Gasket, thermostat case | Gasket, thermostat case |
| 7 | 17400-82Z00-000 | Pump Assy, Water | Pump Assy, Water |
| 8 | 17679-82Z00-000 | O ring, thermostat | O ring, thermostat |
| 9 | 17679-82Z10-000 | O ring, thermostat | O ring, thermostat |
| 10 | 17670-82Z00-000 | Thermostat assy | Thermostat assy |
| 11 | 13650-82Z00-000 | Sensor assy, water temp | Sensor assy, water temp |
| 14 | 33228-50Z00-000 | ボルト,8X16 | ボルト,8X16 |
| 17 | 17129-82Z00-000 | Bolt | Bolt |
| 18 | 17140-82Z00-000 | Pulley, fan & water pump | Pulley, fan & water pump |
| 19 | 17130-82Z00-000 | Bracket, fan pulley | Bracket, fan pulley |
| 20 | 17110-82Z10-000 | Fan, cooling | Fan, cooling |
| 21 | 17120-82Z10-000 | Coupling assy, fan | Coupling assy, fan |
| 22 | 28224-82Z70-000 | Nut | Nut |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 4 | 11853-82Z00-000 | Bolt, eng hook | Bolt, eng hook |
| 15 | 13650-82Z00-000 | Sensor assy, water temp | Sensor assy, water temp |
| 2 | 14118-82Z60-000 | Bolt, stud | Bolt, stud |
| 20 | 17110-82Z10-000 | Fan, cooling | Fan, cooling |
| 21 | 17120-82Z10-000 | Coupling assy, fan | Coupling assy, fan |
| 3 | 17129-82Z00-000 | Bolt | Bolt |
| 19 | 17130-82Z00-000 | Bracket, fan pulley | Bracket, fan pulley |
| 18 | 17140-82Z00-000 | Pulley, fan & water pump | Pulley, fan & water pump |
| 7 | 17400-82Z00-000 | Pump Assy, Water | Pump Assy, Water |
| 1 | 17570-82Z20-000 | Case, water outlet | Case, water outlet |
| 10 | 17670-82Z00-000 | Thermostat assy | Thermostat assy |
| 8 | 17679-82Z00-000 | O ring, thermostat | O ring, thermostat |
| 9 | 17679-82Z10-000 | O ring, thermostat | O ring, thermostat |
| 3 | 17699-82Z20-000 | Gasket, wtr outlet case | Gasket, wtr outlet case |
| 3 | 17699-82Z30-000 | Casket, wtr outlet case | Casket, wtr outlet case |
| 5 | 17849-82Z00-000 | Gasket, thermostat case | Gasket, thermostat case |
| 6 | 17849-82Z10-000 | Gasket, thermostat case | Gasket, thermostat case |
| 11 | 28224-82Z70-000 | Nut | Nut |
| 8 | 33228-50Z00-000 | ボルト,8X16 | ボルト,8X16 |
