Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 12 of 3,562 shared
A6I640
Suzuki EQUATOR — 12 of 2,457 shared

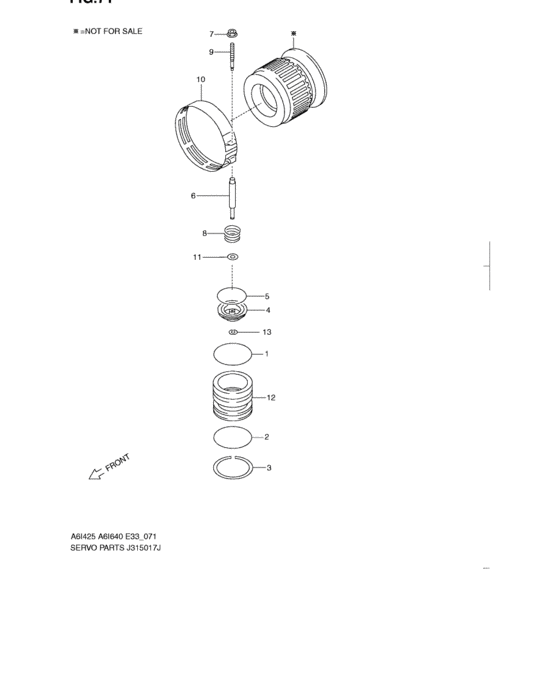

Servo parts (AT) 12 / 12
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 22885-82Z30-000 | O ring | O ring |
| 2 | 22885-82Z40-000 | O ring | O ring |
| 3 | 26629-82Z70-000 | Ring, snap | Ring, snap |
| 4 | 24417-82Z00-000 | Piston, o/d servo | Piston, o/d servo |
| 5 | 24161-82Z10-000 | Seal, ring | Seal, ring |
| 6 | 24112-82Z00-000 | Stem | Stem |
| 7 | 22711-82Z00-000 | Nut | Nut |
| 8 | 24111-82Z00-000 | Spring | Spring |
| 9 | 24113-82Z00-000 | Pin, anchor end | Pin, anchor end |
| 10 | 24114-82Z00-000 | Band assy, brake | Band assy, brake |
| 11 | 24115-82Z00-000 | Washer, piston | Washer, piston |
| 12 | 24116-82Z00-000 | Retainer, piston o/d servo | Retainer, piston o/d servo |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 7 | 22711-82Z00-000 | Nut | Nut |
| 1 | 22885-82Z30-000 | O ring | O ring |
| 2 | 22885-82Z40-000 | O ring | O ring |
| 8 | 24111-82Z00-000 | Spring | Spring |
| 6 | 24112-82Z00-000 | Stem | Stem |
| 9 | 24113-82Z00-000 | Pin, anchor end | Pin, anchor end |
| 10 | 24114-82Z00-000 | Band assy, brake | Band assy, brake |
| 11 | 24115-82Z00-000 | Washer, piston | Washer, piston |
| 12 | 24116-82Z00-000 | Retainer, piston o/d servo | Retainer, piston o/d servo |
| 5 | 24161-82Z10-000 | Seal, ring | Seal, ring |
| 4 | 24417-82Z00-000 | Piston, o/d servo | Piston, o/d servo |
| 3 | 26629-82Z70-000 | Ring, snap | Ring, snap |
