Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 35 of 3,562 shared
A6I640
Suzuki EQUATOR — 35 of 2,457 shared

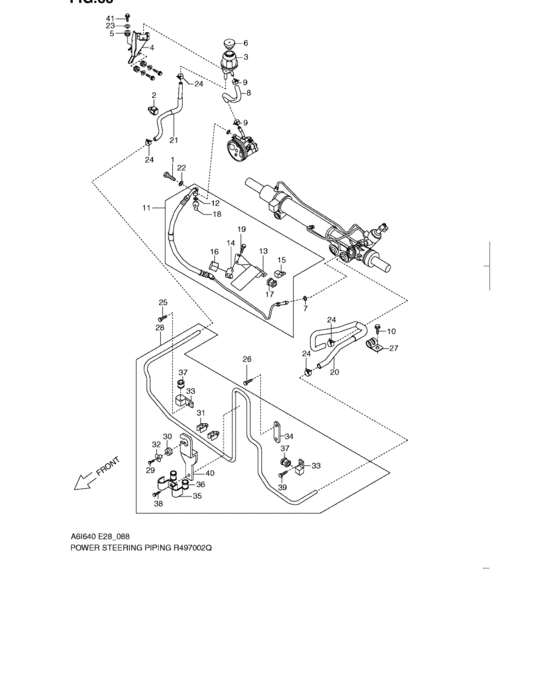

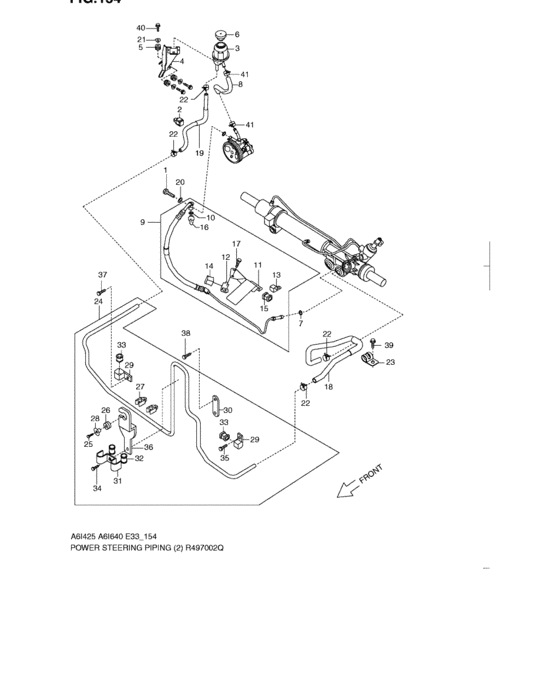

Power steering piping (VQ40DE) 35 / 35
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 24822-82Z00-000 | Bolt | Bolt |
| 2 | 38729-82Z00-000 | Clip | Clip |
| 3 | 49140-82Z00-000 | Tank assy, reservoir | Tank assy, reservoir |
| 4 | 49150-82Z00-000 | Bracket, reservoir tank | Bracket, reservoir tank |
| 5 | 15886-50Z00-000 | クッション | クッション |
| 6 | 49142-82Z00-000 | Cap, reservoir tank | Cap, reservoir tank |
| 7 | 49114-82Z30-000 | O ring | O ring |
| 8 | 49214-82Z10-000 | Hose, suction | Hose, suction |
| 9 | 49230-82Z10-000 | Hose, p/s pressure | Hose, p/s pressure |
| 10 | 49114-82Z20-000 | O ring | O ring |
| 11 | 49117-82Z20-000 | Bracket, tube | Bracket, tube |
| 12 | 49116-82Z30-000 | Clamp | Clamp |
| 13 | 49116-82Z20-000 | Bracket, p/s tube | Bracket, p/s tube |
| 14 | 49118-82Z20-000 | Insulator | Insulator |
| 15 | 49118-82Z00-000 | Insulator | Insulator |
| 16 | 49119-82Z00-000 | Sensor assy, pressure | Sensor assy, pressure |
| 17 | 38421-50Z00-000 | スクリュ,6X16 | スクリュ,6X16 |
| 18 | 49220-82Z00-000 | Hose, p/s return | Hose, p/s return |
| 19 | 49220-82Z10-000 | Hose, p/s return | Hose, p/s return |
| 20 | 49115-82Z20-000 | Washer - Copper | Washer - Copper |
| 21 | 15887-82Z10-000 | Spacer | Spacer |
| 22 | 49116-82Z00-000 | Clamp | Clamp |
| 23 | 49116-82Z60-000 | Bracket, p/s tube | Bracket, p/s tube |
| 24 | 49143-82Z00-000 | Cooler assy, oil | Cooler assy, oil |
| 24 | 49143-82Z01-000 | Cooler Assy,Oil | Cooler Assy,Oil |
| 24 | 49143-82Z10-000 | Cooler assy, oil | Cooler assy, oil |
| 25 | 13114-82Z00-000 | Bolt | Bolt |
| 27 | 82162-82Z00-000 | Clip | Clip |
| 28 | 15887-82Z00-000 | Spacer | Spacer |
| 29 | 49116-82Z10-000 | Clamp | Clamp |
| 29 | 49116-82Z50-000 | Clamp | Clamp |
| 30 | 49117-82Z10-000 | Bracket, tube | Bracket, tube |
| 31 | 49117-82Z30-000 | Bracket, tube | Bracket, tube |
| 33 | 49118-82Z10-000 | Insulator | Insulator |
| 41 | 49215-82Z00-000 | Clamp | Clamp |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 25 | 13114-82Z00-000 | Bolt | Bolt |
| 9 | 15886-50Z00-000 | クッション | クッション |
| 30 | 15887-82Z00-000 | Spacer | Spacer |
| 10 | 15887-82Z10-000 | Spacer | Spacer |
| 1 | 24822-82Z00-000 | Bolt | Bolt |
| 19 | 38421-50Z00-000 | スクリュ,6X16 | スクリュ,6X16 |
| 2 | 38729-82Z00-000 | Clip | Clip |
| 10 | 49114-82Z20-000 | O ring | O ring |
| 7 | 49114-82Z30-000 | O ring | O ring |
| 11 | 49115-82Z20-000 | Washer - Copper | Washer - Copper |
| 24 | 49116-82Z00-000 | Clamp | Clamp |
| 31 | 49116-82Z10-000 | Clamp | Clamp |
| 14 | 49116-82Z20-000 | Bracket, p/s tube | Bracket, p/s tube |
| 13 | 49116-82Z30-000 | Clamp | Clamp |
| 31 | 49116-82Z50-000 | Clamp | Clamp |
| 25 | 49116-82Z60-000 | Bracket, p/s tube | Bracket, p/s tube |
| 32 | 49117-82Z10-000 | Bracket, tube | Bracket, tube |
| 11 | 49117-82Z20-000 | Bracket, tube | Bracket, tube |
| 33 | 49117-82Z30-000 | Bracket, tube | Bracket, tube |
| 15 | 49118-82Z00-000 | Insulator | Insulator |
| 36 | 49118-82Z10-000 | Insulator | Insulator |
| 16 | 49118-82Z20-000 | Insulator | Insulator |
| 17 | 49119-82Z00-000 | Sensor assy, pressure | Sensor assy, pressure |
| 3 | 49140-82Z00-000 | Tank assy, reservoir | Tank assy, reservoir |
| 4 | 49142-82Z00-000 | Cap, reservoir tank | Cap, reservoir tank |
| 26 | 49143-82Z00-000 | Cooler assy, oil | Cooler assy, oil |
| 26 | 49143-82Z01-000 | Cooler Assy,Oil | Cooler Assy,Oil |
| 26 | 49143-82Z10-000 | Cooler assy, oil | Cooler assy, oil |
| 5 | 49150-82Z00-000 | Bracket, reservoir tank | Bracket, reservoir tank |
| 8 | 49214-82Z10-000 | Hose, suction | Hose, suction |
| 42 | 49215-82Z00-000 | Clamp | Clamp |
| 20 | 49220-82Z00-000 | Hose, p/s return | Hose, p/s return |
| 21 | 49220-82Z10-000 | Hose, p/s return | Hose, p/s return |
| 9 | 49230-82Z10-000 | Hose, p/s pressure | Hose, p/s pressure |
| 29 | 82162-82Z00-000 | Clip | Clip |
