Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 22 of 3,562 shared
A6I640
Suzuki EQUATOR — 22 of 2,457 shared

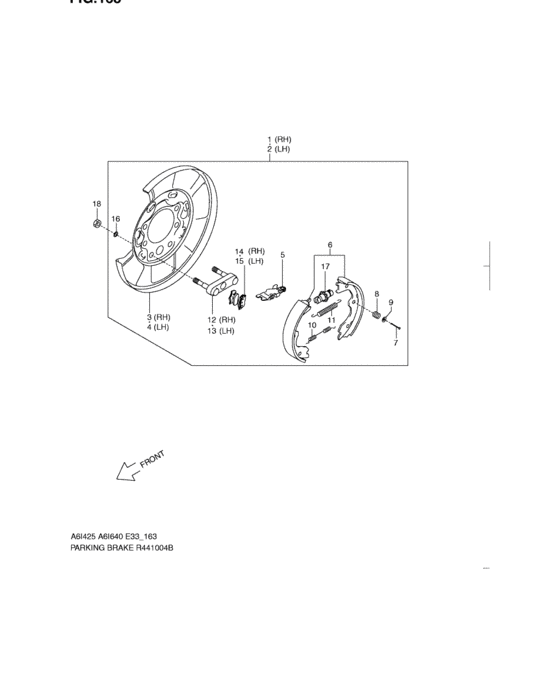

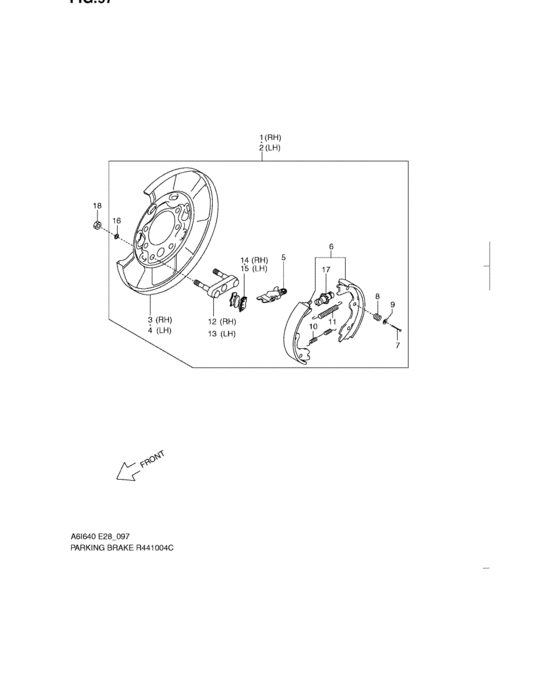

Parking brake (PARKING BRAKE) 22 / 22
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 53001-82Z00-000 | Brake assy, parking rear rh | Brake assy, parking rear rh |
| 1 | 53001-82Z10-000 | Brake assy, parking rear rh | Brake assy, parking rear rh |
| 2 | 53002-82Z00-000 | Brake assy, parking rear lh | Brake assy, parking rear lh |
| 2 | 53002-82Z10-000 | Brake assy, parking rear lh | Brake assy, parking rear lh |
| 3 | 55621-82Z00-000 | Cover, rr brake disc dist rh | Cover, rr brake disc dist rh |
| 3 | 55621-82Z10-000 | Cover, rr brake disc dust rh | Cover, rr brake disc dust rh |
| 4 | 55622-82Z00-000 | Cover, rr brake disc dust rh | Cover, rr brake disc dust rh |
| 4 | 55622-82Z10-000 | Cover, rr brake disc dust lh | Cover, rr brake disc dust lh |
| 5 | 53730-82Z00-000 | Lever, parking shoe lh | Lever, parking shoe lh |
| 6 | 55810-82Z00-000 | Pad set | Pad set |
| 7 | 53241-82Z00-000 | Pin, shoe hold down | Pin, shoe hold down |
| 8 | 53243-82Z00-000 | Spring, shoe hold down | Spring, shoe hold down |
| 9 | 53243-82Z10-000 | Retainer, spring | Retainer, spring |
| 10 | 53232-82Z00-000 | Spring, shoe return lower | Spring, shoe return lower |
| 11 | 53331-82Z00-000 | Spring, shoe return upper | Spring, shoe return upper |
| 12 | 53831-82Z00-000 | Block, anchor rh | Block, anchor rh |
| 13 | 53881-82Z00-000 | Block, anchor lh | Block, anchor lh |
| 14 | 53831-82Z10-000 | Block, anchor rh | Block, anchor rh |
| 15 | 53881-82Z10-000 | Block, anchor lh | Block, anchor lh |
| 16 | 53823-82Z00-000 | Washer | Washer |
| 17 | 53810-82Z00-000 | Adjuster assy, rr brake | Adjuster assy, rr brake |
| 18 | 53822-82Z00-000 | Nut | Nut |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 53001-82Z00-000 | Brake assy, parking rear rh | Brake assy, parking rear rh |
| 1 | 53001-82Z10-000 | Brake assy, parking rear rh | Brake assy, parking rear rh |
| 2 | 53002-82Z00-000 | Brake assy, parking rear lh | Brake assy, parking rear lh |
| 2 | 53002-82Z10-000 | Brake assy, parking rear lh | Brake assy, parking rear lh |
| 10 | 53232-82Z00-000 | Spring, shoe return lower | Spring, shoe return lower |
| 7 | 53241-82Z00-000 | Pin, shoe hold down | Pin, shoe hold down |
| 8 | 53243-82Z00-000 | Spring, shoe hold down | Spring, shoe hold down |
| 9 | 53243-82Z10-000 | Retainer, spring | Retainer, spring |
| 11 | 53331-82Z00-000 | Spring, shoe return upper | Spring, shoe return upper |
| 5 | 53730-82Z00-000 | Lever, parking shoe lh | Lever, parking shoe lh |
| 17 | 53810-82Z00-000 | Adjuster assy, rr brake | Adjuster assy, rr brake |
| 18 | 53822-82Z00-000 | Nut | Nut |
| 16 | 53823-82Z00-000 | Washer | Washer |
| 12 | 53831-82Z00-000 | Block, anchor rh | Block, anchor rh |
| 14 | 53831-82Z10-000 | Block, anchor rh | Block, anchor rh |
| 13 | 53881-82Z00-000 | Block, anchor lh | Block, anchor lh |
| 15 | 53881-82Z10-000 | Block, anchor lh | Block, anchor lh |
| 3 | 55621-82Z00-000 | Cover, rr brake disc dist rh | Cover, rr brake disc dist rh |
| 3 | 55621-82Z10-000 | Cover, rr brake disc dust rh | Cover, rr brake disc dust rh |
| 4 | 55622-82Z00-000 | Cover, rr brake disc dust rh | Cover, rr brake disc dust rh |
| 4 | 55622-82Z10-000 | Cover, rr brake disc dust lh | Cover, rr brake disc dust lh |
| 6 | 55810-82Z00-000 | Pad set | Pad set |
