Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 14 of 3,562 shared
A6I640
Suzuki EQUATOR — 14 of 2,457 shared

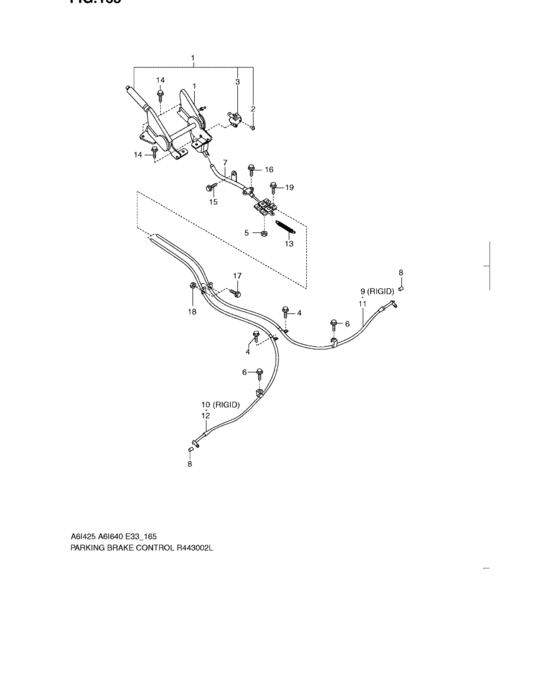

Parking brake control (PARKING BRAKE CONTROL) 14 / 16
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 54100-82Z00-000 | Pedal assy, parking brake | Pedal assy, parking brake |
| 1 | 54100-82Z20-000 | Pedal assy, parking brake | Pedal assy, parking brake |
| 2 | 54117-50Z00-000 | スクリュ | スクリュ |
| 3 | 37940-82Z00-000 | Switch assy, parking brake | Switch assy, parking brake |
| 4 | 48528-82Z00-000 | Bolt | Bolt |
| 5 | 54116-50Z10-000 | ナット | ナット |
| 7 | 54410-82Z00-000 | Cable, parking brake fr | Cable, parking brake fr |
| 8 | 54445-82Z00-000 | Pin | Pin |
| 11 | 54430-82Z10-000 | Cable, parking brake rear rh | Cable, parking brake rear rh |
| 12 | 54440-82Z10-000 | Cable, parking brake rear lh | Cable, parking brake rear lh |
| 13 | 54120-50Z10-000 | スプリング,リターン | スプリング,リターン |
| 14 | 54451-82Z00-000 | Bolt | Bolt |
| 15 | 73919-50Z00-000 | スクリュ,6X16 | スクリュ,6X16 |
| 17 | 54439-50Z00-000 | ナット,M8 | ナット,M8 |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 3 | 37940-82Z00-000 | Switch assy, parking brake | Switch assy, parking brake |
| 3 | 48528-82Z00-000 | Bolt | Bolt |
| 1 | 54100-82Z00-000 | Pedal assy, parking brake | Pedal assy, parking brake |
| 1 | 54100-82Z20-000 | Pedal assy, parking brake | Pedal assy, parking brake |
| 5 | 54116-50Z10-000 | ナット | ナット |
| 2 | 54117-50Z00-000 | スクリュ | スクリュ |
| 13 | 54120-50Z10-000 | スプリング,リターン | スプリング,リターン |
| 7 | 54410-82Z00-000 | Cable, parking brake fr | Cable, parking brake fr |
| 11 | 54430-82Z10-000 | Cable, parking brake rear rh | Cable, parking brake rear rh |
| 2 | 54439-50Z00-000 | ナット,M8 | ナット,M8 |
| 12 | 54440-82Z10-000 | Cable, parking brake rear lh | Cable, parking brake rear lh |
| 8 | 54445-82Z00-000 | Pin | Pin |
| 33 | 54451-82Z00-000 | Bolt | Bolt |
| 7 | 73919-50Z00-000 | スクリュ,6X16 | スクリュ,6X16 |
