Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 11 of 3,562 shared
A6I640
Suzuki EQUATOR — 11 of 2,457 shared

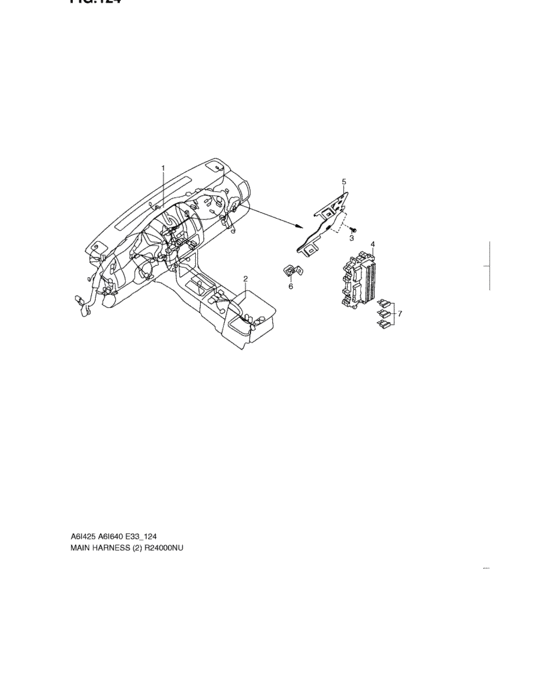

Main harness (VQ40DE) 11 / 20
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 36610-82ZD0-000 | Harness assy, main | Harness assy, main |
| 1 | 36609-82Z60-000 | Harness assy, main | Harness assy, main |
| 2 | 36611-82Z00-000 | Harness assy, console | Harness assy, console |
| 3 | 12776-50Z10-000 | ボルト | ボルト |
| 4 | 36780-82Z00-000 | Junction box | Junction box |
| 4 | 36780-82Z10-000 | Junction box | Junction box |
| 5 | 36715-82Z10-000 | Bracket, fuse box | Bracket, fuse box |
| 6 | 36715-82Z00-000 | Bracket, fuse box | Bracket, fuse box |
| 7 | 38860-50Z00-10A | フューズ,10A | フューズ,10A |
| 7 | 38860-50Z00-15A | フューズ,15A | フューズ,15A |
| 7 | 38860-50Z00-20A | フューズ,20A | フューズ,20A |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 3 | 12776-50Z10-000 | ボルト | ボルト |
| 1 | 36609-82Z60-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-82ZD0-000 | Harness assy, main | Harness assy, main |
| 2 | 36611-82Z00-000 | Harness assy, console | Harness assy, console |
| 6 | 36715-82Z00-000 | Bracket, fuse box | Bracket, fuse box |
| 5 | 36715-82Z10-000 | Bracket, fuse box | Bracket, fuse box |
| 4 | 36780-82Z00-000 | Junction box | Junction box |
| 4 | 36780-82Z10-000 | Junction box | Junction box |
| 11 | 38860-50Z00-10A | フューズ,10A | フューズ,10A |
| 11 | 38860-50Z00-15A | フューズ,15A | フューズ,15A |
| 11 | 38860-50Z00-20A | フューズ,20A | フューズ,20A |
