Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 24 of 3,562 shared
A6I640
Suzuki EQUATOR — 24 of 2,457 shared

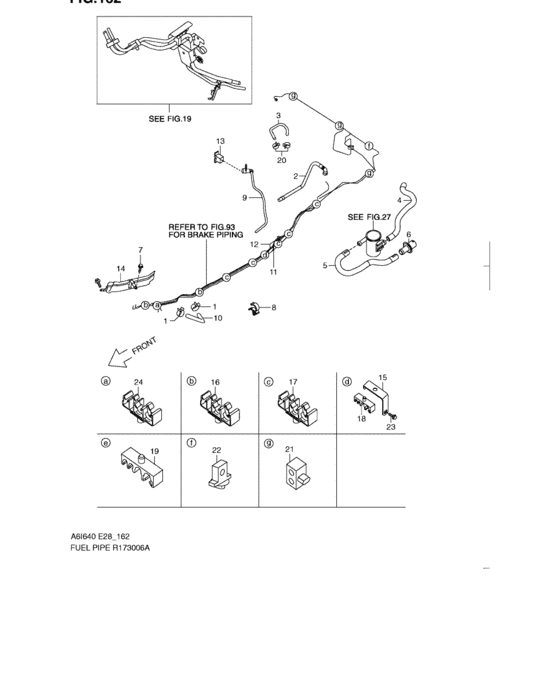

Fuel pipe (FUEL PIPE) 24 / 30
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 15882-82Z40-000 | Clamp | Clamp |
| 2 | 15119-82Z20-000 | Clip | Clip |
| 2 | 15894-82Z00-000 | Clip | Clip |
| 4 | 51761-82Z00-000 | Clamp | Clamp |
| 5 | 15883-82Z00-000 | Clip | Clip |
| 6 | 15118-82Z00-000 | Clamp | Clamp |
| 6 | 16621-82Z20-000 | Clamp | Clamp |
| 9 | 15812-82Z10-000 | Tube, ventilation | Tube, ventilation |
| 10 | 15112-82Z00-000 | Tube assy, fuel tank outlet | Tube assy, fuel tank outlet |
| 11 | 15113-82Z00-000 | Hose, evaporation | Hose, evaporation |
| 12 | 15114-82Z40-000 | Tube, breather | Tube, breather |
| 13 | 89461-82Z00-000 | Hose, evaporator | Hose, evaporator |
| 13 | 89461-82Z10-000 | Hose, evaporator | Hose, evaporator |
| 14 | 15115-82Z10-000 | Tube, fuel feed | Tube, fuel feed |
| 15 | 15116-82Z00-000 | Retainer, quick connector | Retainer, quick connector |
| 15 | 15750-82Z00-000 | Retainer, quick connector | Retainer, quick connector |
| 16 | 15117-82Z00-000 | Protector, fuel tube | Protector, fuel tube |
| 17 | 89290-82Z00-000 | Hose | Hose |
| 18 | 89290-82Z10-000 | Hose | Hose |
| 19 | 89310-82Z00-000 | Connector | Connector |
| 20 | 15119-82Z00-000 | Clip | Clip |
| 21 | 15119-82Z10-000 | Clip | Clip |
| 22 | 38421-50Z00-000 | スクリュ,6X16 | スクリュ,6X16 |
| 24 | 15119-82Z30-000 | Clip | Clip |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 10 | 15112-82Z00-000 | Tube assy, fuel tank outlet | Tube assy, fuel tank outlet |
| 11 | 15113-82Z00-000 | Hose, evaporation | Hose, evaporation |
| 12 | 15114-82Z40-000 | Tube, breather | Tube, breather |
| 14 | 15115-82Z10-000 | Tube, fuel feed | Tube, fuel feed |
| 15 | 15116-82Z00-000 | Retainer, quick connector | Retainer, quick connector |
| 16 | 15117-82Z00-000 | Protector, fuel tube | Protector, fuel tube |
| 6 | 15118-82Z00-000 | Clamp | Clamp |
| 20 | 15119-82Z00-000 | Clip | Clip |
| 21 | 15119-82Z10-000 | Clip | Clip |
| 2 | 15119-82Z20-000 | Clip | Clip |
| 24 | 15119-82Z30-000 | Clip | Clip |
| 15 | 15750-82Z00-000 | Retainer, quick connector | Retainer, quick connector |
| 9 | 15812-82Z10-000 | Tube, ventilation | Tube, ventilation |
| 1 | 15882-82Z40-000 | Clamp | Clamp |
| 5 | 15883-82Z00-000 | Clip | Clip |
| 2 | 15894-82Z00-000 | Clip | Clip |
| 10 | 16621-82Z20-000 | Clamp | Clamp |
| 19 | 38421-50Z00-000 | スクリュ,6X16 | スクリュ,6X16 |
| 4 | 51761-82Z00-000 | Clamp | Clamp |
| 17 | 89290-82Z00-000 | Hose | Hose |
| 18 | 89290-82Z10-000 | Hose | Hose |
| 19 | 89310-82Z00-000 | Connector | Connector |
| 13 | 89461-82Z00-000 | Hose, evaporator | Hose, evaporator |
| 13 | 89461-82Z10-000 | Hose, evaporator | Hose, evaporator |
