Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 12 of 3,562 shared
A6I640
Suzuki EQUATOR — 12 of 2,457 shared

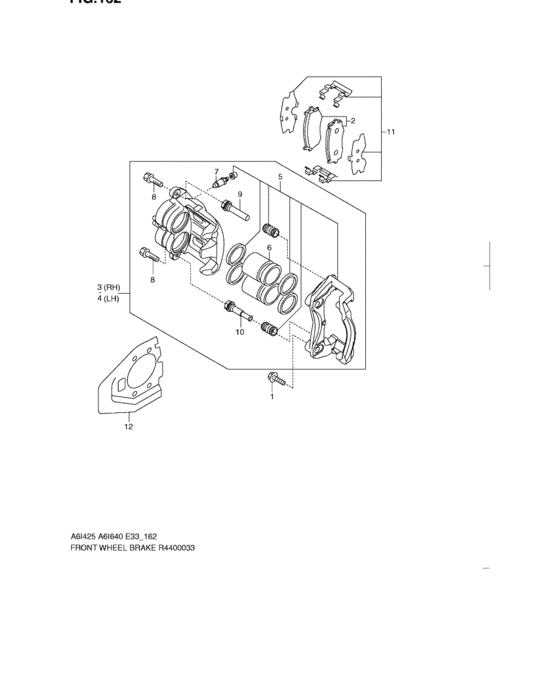

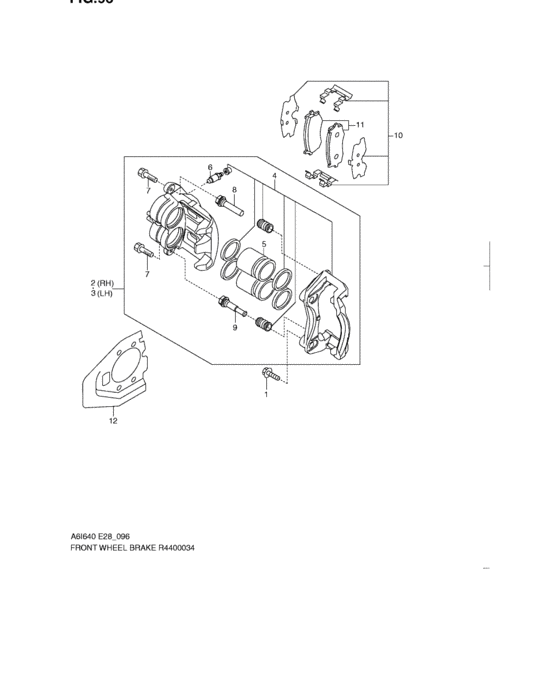

Front wheel brake (FRONT WHEEL BRAKE) 12 / 16
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 55164-50Z01-000 | ボルト | ボルト |
| 2 | 55210-82Z00-000 | Pad set | Pad set |
| 3 | 55110-82Z10-000 | Caliper, fr brake rh | Caliper, fr brake rh |
| 4 | 55120-82Z10-000 | Caliper, fr brake lh | Caliper, fr brake lh |
| 5 | 55830-82Z00-000 | Seal set, front brake | Seal set, front brake |
| 6 | 55840-82Z00-000 | Piston, cylinder | Piston, cylinder |
| 7 | 55473-82Z10-000 | Plug, bleeder | Plug, bleeder |
| 8 | 55192-82Z30-000 | Bolt, pin | Bolt, pin |
| 9 | 55191-50Z00-000 | スライドピン | スライドピン |
| 10 | 55192-82Z00-000 | Slide pin set | Slide pin set |
| 11 | 55200-82Z00-000 | Shim set, fr disc brake | Shim set, fr disc brake |
| 12 | 55321-82Z00-000 | Cover, brake disc | Cover, brake disc |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 3 | 55110-82Z10-000 | Caliper, fr brake rh | Caliper, fr brake rh |
| 4 | 55120-82Z10-000 | Caliper, fr brake lh | Caliper, fr brake lh |
| 1 | 55164-50Z01-000 | ボルト | ボルト |
| 9 | 55191-50Z00-000 | スライドピン | スライドピン |
| 10 | 55192-82Z00-000 | Slide pin set | Slide pin set |
| 8 | 55192-82Z30-000 | Bolt, pin | Bolt, pin |
| 11 | 55200-82Z00-000 | Shim set, fr disc brake | Shim set, fr disc brake |
| 2 | 55210-82Z00-000 | Pad set | Pad set |
| 12 | 55321-82Z00-000 | Cover, brake disc | Cover, brake disc |
| 7 | 55473-82Z10-000 | Plug, bleeder | Plug, bleeder |
| 5 | 55830-82Z00-000 | Seal set, front brake | Seal set, front brake |
| 6 | 55840-82Z00-000 | Piston, cylinder | Piston, cylinder |
