Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 9 of 3,562 shared
A6I640
Suzuki EQUATOR — 9 of 2,457 shared

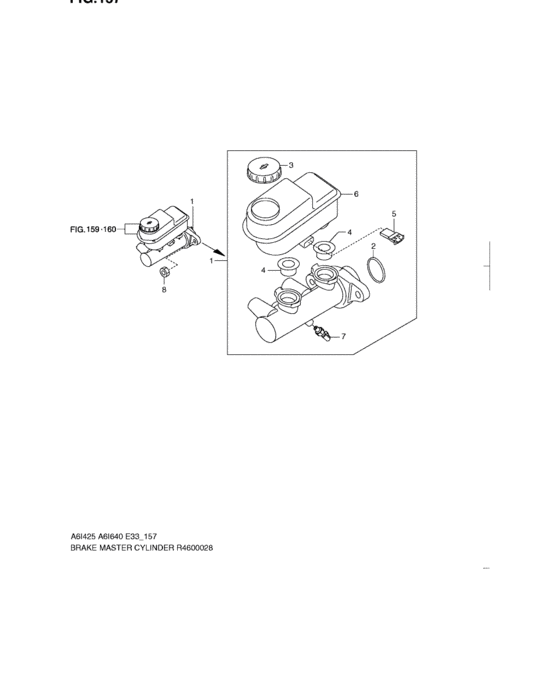

Brake master cylinder (BRAKE MASTER CYLINDER) 9 / 10
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 51100-82Z10-000 | Cylinder assy, brake master | Cylinder assy, brake master |
| 1 | 51100-82Z30-000 | Cylinder assy, brake master | Cylinder assy, brake master |
| 2 | 51310-82Z00-000 | O ring | O ring |
| 3 | 51220-82Z00-000 | Cap, reservoir | Cap, reservoir |
| 4 | 51232-82Z00-000 | Grommet, rsvr connector | Grommet, rsvr connector |
| 5 | 51211-82Z00-000 | Indicator, level | Indicator, level |
| 6 | 51200-82Z00-000 | Reservoir assy, master,cylinder | Reservoir assy, master,cylinder |
| 7 | 51110-82Z00-000 | Sensor, pressure | Sensor, pressure |
| 8 | 18215-82Z20-000 | Nut | Nut |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 18215-82Z20-000 | Nut | Nut |
| 1 | 51100-82Z10-000 | Cylinder assy, brake master | Cylinder assy, brake master |
| 1 | 51100-82Z30-000 | Cylinder assy, brake master | Cylinder assy, brake master |
| 7 | 51110-82Z00-000 | Sensor, pressure | Sensor, pressure |
| 6 | 51200-82Z00-000 | Reservoir assy, master,cylinder | Reservoir assy, master,cylinder |
| 5 | 51211-82Z00-000 | Indicator, level | Indicator, level |
| 3 | 51220-82Z00-000 | Cap, reservoir | Cap, reservoir |
| 4 | 51232-82Z00-000 | Grommet, rsvr connector | Grommet, rsvr connector |
| 2 | 51310-82Z00-000 | O ring | O ring |
