Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 34 of 3,562 shared
A6I640
Suzuki EQUATOR — 34 of 2,457 shared

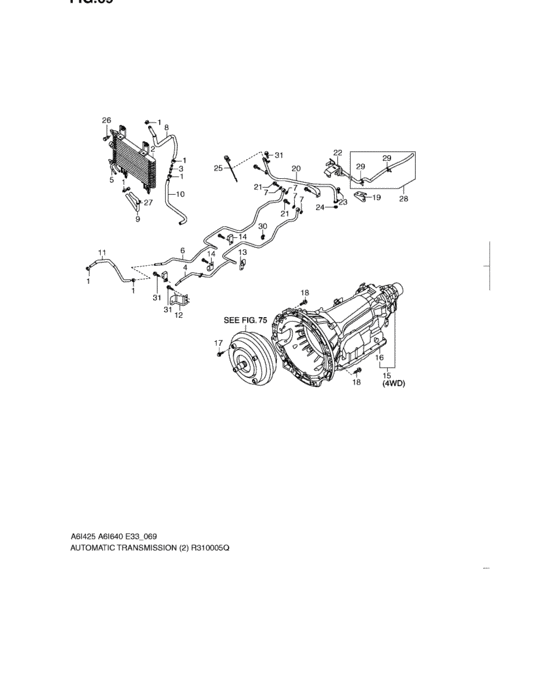

Automatic transmission (AT:VQ40DE) 34 / 43
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 17855-82Z10-000 | Clamp | Clamp |
| 2 | 24291-82Z00-000 | Cooler assy, oil | Cooler assy, oil |
| 3 | 24925-82Z00-000 | Joint | Joint |
| 4 | 22931-82Z10-000 | Tube, oil cooler | Tube, oil cooler |
| 5 | 22931-82Z20-000 | Tube, oil cooler | Tube, oil cooler |
| 6 | 22932-82Z10-000 | Tube, oil cooler | Tube, oil cooler |
| 7 | 22913-82Z00-000 | Washer | Washer |
| 8 | 22934-82Z00-000 | Hose, oil cooler | Hose, oil cooler |
| 9 | 22935-82Z00-000 | Hose, oil cooler | Hose, oil cooler |
| 10 | 22936-82Z00-000 | Hose, cooler to rdtr | Hose, cooler to rdtr |
| 11 | 22937-82Z00-000 | Hose, cooler to engine | Hose, cooler to engine |
| 11 | 22937-82Z10-000 | Hose, oil cooler | Hose, oil cooler |
| 12 | 22936-82Z20-000 | Bracket | Bracket |
| 13 | 22936-82Z30-000 | Bracket | Bracket |
| 14 | 22938-82Z20-000 | Clamp | Clamp |
| 15 | 21000-82Z40-000 | At transmission assy, w/tf | At transmission assy, w/tf |
| 15 | 21000-82ZG0-000 | At transmission assy, w/tf | At transmission assy, w/tf |
| 16 | 21000-82Z31-000 | At transmission assy | At transmission assy |
| 16 | 21000-82ZL0-000 | At transmission assy | At transmission assy |
| 17 | 21111-82Z00-000 | Bolt | Bolt |
| 18 | 21115-82Z80-000 | Bolt | Bolt |
| 19 | 21112-82Z00-000 | Bracket | Bracket |
| 20 | 24770-82Z10-000 | Tube assy, t/m oil filler | Tube assy, t/m oil filler |
| 21 | 24822-82Z10-000 | Bolt | Bolt |
| 22 | 24771-82Z90-000 | Hose | Hose |
| 23 | 21115-82Z90-000 | Bolt | Bolt |
| 24 | 24779-82Z00-000 | O ring | O ring |
| 25 | 24830-82Z10-000 | Gauge assy, t/m oil level | Gauge assy, t/m oil level |
| 26 | 13114-82Z00-000 | Bolt | Bolt |
| 27 | 24851-50Z00-000 | クリップ | クリップ |
| 28 | 24771-82Z80-000 | Hose | Hose |
| 29 | 24756-82Z00-000 | Clip | Clip |
| 30 | 86723-82Z31-000 | Clip | Clip |
| 31 | 71828-50Z00-000 | ボルト,6X12 | ボルト,6X12 |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 25 | 13114-82Z00-000 | Bolt | Bolt |
| 1 | 17855-82Z10-000 | Clamp | Clamp |
| 16 | 21000-82Z31-000 | At transmission assy | At transmission assy |
| 15 | 21000-82Z40-000 | At transmission assy, w/tf | At transmission assy, w/tf |
| 15 | 21000-82ZG0-000 | At transmission assy, w/tf | At transmission assy, w/tf |
| 16 | 21000-82ZL0-000 | At transmission assy | At transmission assy |
| 14 | 21111-82Z00-000 | Bolt | Bolt |
| 18 | 21112-82Z00-000 | Bracket | Bracket |
| 16 | 21115-82Z80-000 | Bolt | Bolt |
| 2 | 21115-82Z90-000 | Bolt | Bolt |
| 7 | 22913-82Z00-000 | Washer | Washer |
| 4 | 22931-82Z10-000 | Tube, oil cooler | Tube, oil cooler |
| 5 | 22931-82Z20-000 | Tube, oil cooler | Tube, oil cooler |
| 6 | 22932-82Z10-000 | Tube, oil cooler | Tube, oil cooler |
| 8 | 22934-82Z00-000 | Hose, oil cooler | Hose, oil cooler |
| 9 | 22935-82Z00-000 | Hose, oil cooler | Hose, oil cooler |
| 10 | 22936-82Z00-000 | Hose, cooler to rdtr | Hose, cooler to rdtr |
| 12 | 22936-82Z20-000 | Bracket | Bracket |
| 13 | 22936-82Z30-000 | Bracket | Bracket |
| 11 | 22937-82Z00-000 | Hose, cooler to engine | Hose, cooler to engine |
| 11 | 22937-82Z10-000 | Hose, oil cooler | Hose, oil cooler |
| 13 | 22938-82Z20-000 | Clamp | Clamp |
| 2 | 24291-82Z00-000 | Cooler assy, oil | Cooler assy, oil |
| 29 | 24756-82Z00-000 | Clip | Clip |
| 20 | 24770-82Z10-000 | Tube assy, t/m oil filler | Tube assy, t/m oil filler |
| 28 | 24771-82Z80-000 | Hose | Hose |
| 22 | 24771-82Z90-000 | Hose | Hose |
| 23 | 24779-82Z00-000 | O ring | O ring |
| 20 | 24822-82Z10-000 | Bolt | Bolt |
| 25 | 24830-82Z10-000 | Gauge assy, t/m oil level | Gauge assy, t/m oil level |
| 26 | 24851-50Z00-000 | クリップ | クリップ |
| 3 | 24925-82Z00-000 | Joint | Joint |
| 30 | 71828-50Z00-000 | ボルト,6X12 | ボルト,6X12 |
| 29 | 86723-82Z31-000 | Clip | Clip |
