Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 45 of 3,562 shared
A6I640
Suzuki EQUATOR — 45 of 2,457 shared

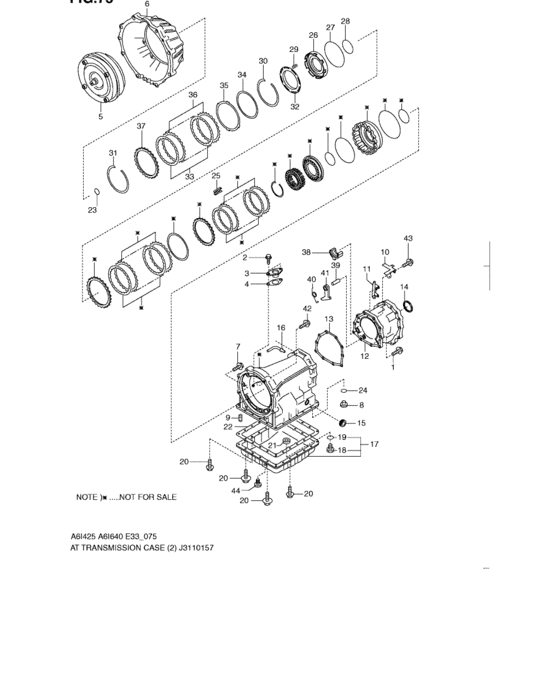

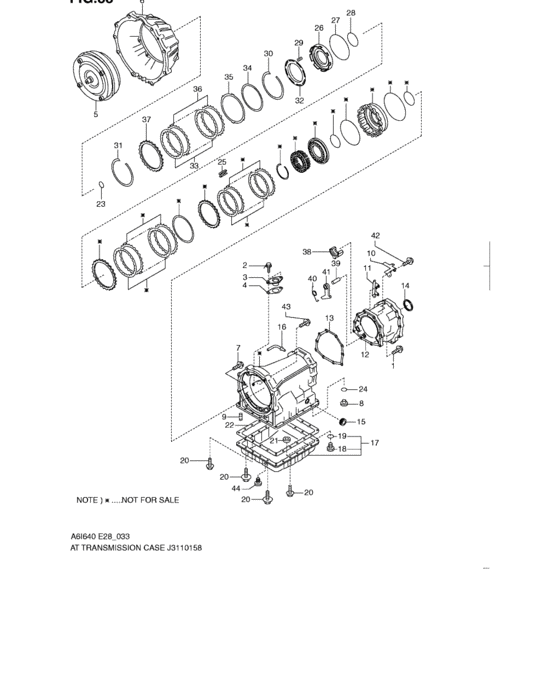

At transmission case (AT:4WD) 45 / 45
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 21115-82Z60-000 | Bolt | Bolt |
| 2 | 21115-82Z90-000 | Bolt | Bolt |
| 3 | 28951-82Z10-000 | Spacer | Spacer |
| 4 | 24762-82Z00-000 | Gasket, Oil Pan | Gasket, Oil Pan |
| 5 | 22710-82Z00-000 | Converter, torque | Converter, torque |
| 6 | 24711-82Z00-000 | Housing, converter | Housing, converter |
| 8 | 29849-82Z00-000 | Plug | Plug |
| 9 | 24819-82Z00-000 | Pin, dowel | Pin, dowel |
| 10 | 21992-82Z00-000 | Clip | Clip |
| 11 | 21992-82Z20-000 | Clip | Clip |
| 12 | 24730-82Z00-000 | Case assy, adapter | Case assy, adapter |
| 13 | 24818-82Z00-000 | Gasket, extension | Gasket, extension |
| 14 | 24716-82Z20-000 | Seal | Seal |
| 15 | 24716-82Z30-000 | Seal | Seal |
| 16 | 24771-82ZE0-000 | Breather, air | Breather, air |
| 17 | 24761-82Z00-000 | Pan, oil | Pan, oil |
| 18 | 24823-50Z00-000 | プラグ,ドレーン | プラグ,ドレーン |
| 19 | 11517-50Z00-000 | ワッシャ,ドレーンプラグ | ワッシャ,ドレーンプラグ |
| 20 | 21115-82Z30-000 | Bolt | Bolt |
| 21 | 24745-82Z00-000 | Magnet | Magnet |
| 22 | 24762-82Z10-000 | Gasket, Oil Pan | Gasket, Oil Pan |
| 23 | 22885-82Z20-000 | O ring | O ring |
| 24 | 22885-82Z50-000 | O ring | O ring |
| 25 | 24111-82Z10-000 | Spring | Spring |
| 26 | 26622-82Z00-000 | Piston, rev brake | Piston, rev brake |
| 27 | 24161-82Z20-000 | Seal, ring | Seal, ring |
| 28 | 24161-82Z00-000 | Seal, ring | Seal, ring |
| 29 | 26613-82Z00-000 | Spring | Spring |
| 30 | 26629-82Z50-000 | Ring, snap | Ring, snap |
| 31 | 26629-82Z01-000 | Ring, snap | Ring, snap |
| 32 | 26623-82Z00-000 | Retainer, rev spring | Retainer, rev spring |
| 33 | 26636-82Z00-000 | Plate assy, drive | Plate assy, drive |
| 34 | 26626-82Z20-000 | Plate, dished | Plate, dished |
| 35 | 26626-82Z10-000 | Plate, dished | Plate, dished |
| 36 | 26616-82Z00-000 | Plate, driven | Plate, driven |
| 37 | 26646-82Z00-042 | Plate, retaining - T:4.2 | Plate, retaining - T:4.2 |
| 37 | 26646-82Z00-044 | Plate, retaining - T:4.4 | Plate, retaining - T:4.4 |
| 37 | 26646-82Z00-046 | Plate, retaining - T:4.6 | Plate, retaining - T:4.6 |
| 37 | 26646-82Z00-048 | Plate, retaining - T:4.8 | Plate, retaining - T:4.8 |
| 37 | 26646-82Z00-050 | Plate, retaining - T:5.0 | Plate, retaining - T:5.0 |
| 37 | 26646-82Z00-052 | Plate, retaining - T:5.2 | Plate, retaining - T:5.2 |
| 38 | 24737-82Z00-000 | Support, parking acc | Support, parking acc |
| 39 | 25911-82Z00-000 | Shaft, parking pawl | Shaft, parking pawl |
| 40 | 25918-82Z10-000 | Spring, return pawl | Spring, return pawl |
| 41 | 25912-82Z00-000 | Pawl, parking | Pawl, parking |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 17 | 11517-50Z00-000 | ワッシャ,ドレーンプラグ | ワッシャ,ドレーンプラグ |
| 18 | 21115-82Z30-000 | Bolt | Bolt |
| 1 | 21115-82Z60-000 | Bolt | Bolt |
| 2 | 21115-82Z90-000 | Bolt | Bolt |
| 10 | 21992-82Z00-000 | Clip | Clip |
| 11 | 21992-82Z20-000 | Clip | Clip |
| 5 | 22710-82Z00-000 | Converter, torque | Converter, torque |
| 21 | 22885-82Z20-000 | O ring | O ring |
| 22 | 22885-82Z50-000 | O ring | O ring |
| 23 | 24111-82Z10-000 | Spring | Spring |
| 26 | 24161-82Z00-000 | Seal, ring | Seal, ring |
| 25 | 24161-82Z20-000 | Seal, ring | Seal, ring |
| 6 | 24711-82Z00-000 | Housing, converter | Housing, converter |
| 14 | 24716-82Z20-000 | Seal | Seal |
| 13 | 24716-82Z30-000 | Seal | Seal |
| 12 | 24730-82Z00-000 | Case assy, adapter | Case assy, adapter |
| 36 | 24737-82Z00-000 | Support, parking acc | Support, parking acc |
| 19 | 24745-82Z00-000 | Magnet | Magnet |
| 15 | 24761-82Z00-000 | Pan, oil | Pan, oil |
| 4 | 24762-82Z00-000 | Gasket, Oil Pan | Gasket, Oil Pan |
| 20 | 24762-82Z10-000 | Gasket, Oil Pan | Gasket, Oil Pan |
| 14 | 24771-82ZE0-000 | Breather, air | Breather, air |
| 13 | 24818-82Z00-000 | Gasket, extension | Gasket, extension |
| 9 | 24819-82Z00-000 | Pin, dowel | Pin, dowel |
| 16 | 24823-50Z00-000 | プラグ,ドレーン | プラグ,ドレーン |
| 37 | 25911-82Z00-000 | Shaft, parking pawl | Shaft, parking pawl |
| 39 | 25912-82Z00-000 | Pawl, parking | Pawl, parking |
| 38 | 25918-82Z10-000 | Spring, return pawl | Spring, return pawl |
| 27 | 26613-82Z00-000 | Spring | Spring |
| 34 | 26616-82Z00-000 | Plate, driven | Plate, driven |
| 24 | 26622-82Z00-000 | Piston, rev brake | Piston, rev brake |
| 30 | 26623-82Z00-000 | Retainer, rev spring | Retainer, rev spring |
| 33 | 26626-82Z10-000 | Plate, dished | Plate, dished |
| 32 | 26626-82Z20-000 | Plate, dished | Plate, dished |
| 29 | 26629-82Z01-000 | Ring, snap | Ring, snap |
| 28 | 26629-82Z50-000 | Ring, snap | Ring, snap |
| 31 | 26636-82Z00-000 | Plate assy, drive | Plate assy, drive |
| 35 | 26646-82Z00-042 | Plate, retaining - T:4.2 | Plate, retaining - T:4.2 |
| 35 | 26646-82Z00-044 | Plate, retaining - T:4.4 | Plate, retaining - T:4.4 |
| 35 | 26646-82Z00-046 | Plate, retaining - T:4.6 | Plate, retaining - T:4.6 |
| 35 | 26646-82Z00-048 | Plate, retaining - T:4.8 | Plate, retaining - T:4.8 |
| 35 | 26646-82Z00-050 | Plate, retaining - T:5.0 | Plate, retaining - T:5.0 |
| 35 | 26646-82Z00-052 | Plate, retaining - T:5.2 | Plate, retaining - T:5.2 |
| 3 | 28951-82Z10-000 | Spacer | Spacer |
| 8 | 29849-82Z00-000 | Plug | Plug |
