Search › Compare › A6I425 × A6I640
A6I425
Suzuki EQUATOR — 42 of 3,562 shared
A6I640
Suzuki EQUATOR — 42 of 2,457 shared

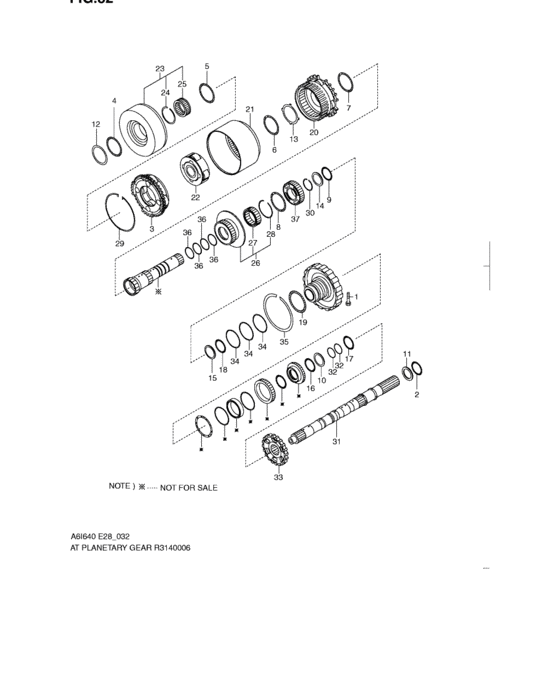

At planetary gear (AT) 42 / 43
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 21115-82Z50-000 | Bolt | Bolt |
| 2 | 24954-82Z80-000 | Bearing | Bearing |
| 3 | 24920-82Z00-000 | Carrier, front planet | Carrier, front planet |
| 4 | 24954-82ZB0-000 | Bearing | Bearing |
| 5 | 24954-82ZA0-000 | Bearing | Bearing |
| 6 | 24954-82Z40-000 | Bearing | Bearing |
| 7 | 24954-82Z20-000 | Bearing | Bearing |
| 8 | 24954-82Z50-000 | Bearing | Bearing |
| 9 | 24954-82Z10-000 | Bearing | Bearing |
| 10 | 24934-82Z20-000 | Race, bearing | Race, bearing |
| 11 | 24934-82Z40-000 | Race, bearing | Race, bearing |
| 12 | 24935-82Z00-008 | Race, bearing - T:0.8 | Race, bearing - T:0.8 |
| 12 | 24935-82Z00-010 | Race, bearing - T:1.0 | Race, bearing - T:1.0 |
| 12 | 24935-82Z00-012 | Race, bearing - T:1.2 | Race, bearing - T:1.2 |
| 12 | 24935-82Z00-014 | Race, bearing - T:1.4 | Race, bearing - T:1.4 |
| 12 | 24935-82Z00-016 | Race, bearing - T:1.6 | Race, bearing - T:1.6 |
| 12 | 24935-82Z00-018 | Race, bearing - T:1.8 | Race, bearing - T:1.8 |
| 13 | 24934-82Z30-000 | Race, bearing | Race, bearing |
| 14 | 24934-82Z00-000 | Race, bearing | Race, bearing |
| 15 | 24934-82Z10-000 | Race, bearing | Race, bearing |
| 17 | 24954-82Z60-000 | Bearing | Bearing |
| 18 | 24954-82Z00-000 | Bearing | Bearing |
| 19 | 24954-82Z70-000 | Bearing | Bearing |
| 20 | 24910-82Z00-000 | Carrier assy, rear planet | Carrier assy, rear planet |
| 21 | 24952-82Z00-000 | Gear assy, internal | Gear assy, internal |
| 22 | 24212-82Z10-000 | Carrier assy, mid | Carrier assy, mid |
| 23 | 24951-82Z00-000 | Gear, sun | Gear, sun |
| 24 | 26629-82Z80-000 | Ring, snap | Ring, snap |
| 25 | 26760-82Z10-000 | Clutch assy, oneway | Clutch assy, oneway |
| 26 | 24941-82Z00-000 | Gear, rear sun | Gear, rear sun |
| 27 | 26760-82Z00-000 | Clutch assy, oneway | Clutch assy, oneway |
| 28 | 26629-82Z10-000 | Ring, snap | Ring, snap |
| 29 | 26629-82Z90-000 | Ring, snap | Ring, snap |
| 30 | 26629-82Z60-000 | Ring, snap | Ring, snap |
| 31 | 24120-82Z10-000 | Shaft assy, output | Shaft assy, output |
| 32 | 24916-82Z20-000 | Ring, seal | Ring, seal |
| 32 | 24916-82Z40-000 | Ring, seal | Ring, seal |
| 33 | 25951-82Z00-000 | Gear, parking | Gear, parking |
| 34 | 24916-82Z00-000 | Ring, seal | Ring, seal |
| 35 | 26629-82Z40-000 | Ring, snap | Ring, snap |
| 36 | 24212-82Z20-000 | Hub assy, high & low clutch | Hub assy, high & low clutch |
| 37 | 24916-82Z10-000 | Ring, seal | Ring, seal |
| # | OEM | A6I425 | A6I640 |
|---|---|---|---|
| 1 | 21115-82Z50-000 | Bolt | Bolt |
| 31 | 24120-82Z10-000 | Shaft assy, output | Shaft assy, output |
| 22 | 24212-82Z10-000 | Carrier assy, mid | Carrier assy, mid |
| 36 | 24212-82Z20-000 | Hub assy, high & low clutch | Hub assy, high & low clutch |
| 20 | 24910-82Z00-000 | Carrier assy, rear planet | Carrier assy, rear planet |
| 34 | 24916-82Z00-000 | Ring, seal | Ring, seal |
| 37 | 24916-82Z10-000 | Ring, seal | Ring, seal |
| 32 | 24916-82Z20-000 | Ring, seal | Ring, seal |
| 32 | 24916-82Z40-000 | Ring, seal | Ring, seal |
| 3 | 24920-82Z00-000 | Carrier, front planet | Carrier, front planet |
| 14 | 24934-82Z00-000 | Race, bearing | Race, bearing |
| 15 | 24934-82Z10-000 | Race, bearing | Race, bearing |
| 10 | 24934-82Z20-000 | Race, bearing | Race, bearing |
| 13 | 24934-82Z30-000 | Race, bearing | Race, bearing |
| 11 | 24934-82Z40-000 | Race, bearing | Race, bearing |
| 12 | 24935-82Z00-008 | Race, bearing - T:0.8 | Race, bearing - T:0.8 |
| 12 | 24935-82Z00-010 | Race, bearing - T:1.0 | Race, bearing - T:1.0 |
| 12 | 24935-82Z00-012 | Race, bearing - T:1.2 | Race, bearing - T:1.2 |
| 12 | 24935-82Z00-014 | Race, bearing - T:1.4 | Race, bearing - T:1.4 |
| 12 | 24935-82Z00-016 | Race, bearing - T:1.6 | Race, bearing - T:1.6 |
| 12 | 24935-82Z00-018 | Race, bearing - T:1.8 | Race, bearing - T:1.8 |
| 26 | 24941-82Z00-000 | Gear, rear sun | Gear, rear sun |
| 23 | 24951-82Z00-000 | Gear, sun | Gear, sun |
| 21 | 24952-82Z00-000 | Gear assy, internal | Gear assy, internal |
| 18 | 24954-82Z00-000 | Bearing | Bearing |
| 9 | 24954-82Z10-000 | Bearing | Bearing |
| 7 | 24954-82Z20-000 | Bearing | Bearing |
| 6 | 24954-82Z40-000 | Bearing | Bearing |
| 8 | 24954-82Z50-000 | Bearing | Bearing |
| 17 | 24954-82Z60-000 | Bearing | Bearing |
| 19 | 24954-82Z70-000 | Bearing | Bearing |
| 2 | 24954-82Z80-000 | Bearing | Bearing |
| 5 | 24954-82ZA0-000 | Bearing | Bearing |
| 4 | 24954-82ZB0-000 | Bearing | Bearing |
| 33 | 25951-82Z00-000 | Gear, parking | Gear, parking |
| 28 | 26629-82Z10-000 | Ring, snap | Ring, snap |
| 35 | 26629-82Z40-000 | Ring, snap | Ring, snap |
| 30 | 26629-82Z60-000 | Ring, snap | Ring, snap |
| 24 | 26629-82Z80-000 | Ring, snap | Ring, snap |
| 29 | 26629-82Z90-000 | Ring, snap | Ring, snap |
| 27 | 26760-82Z00-000 | Clutch assy, oneway | Clutch assy, oneway |
| 25 | 26760-82Z10-000 | Clutch assy, oneway | Clutch assy, oneway |
