Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 112 of 3,419 shared
A5B412
Suzuki SPLASH — 112 of 3,419 shared

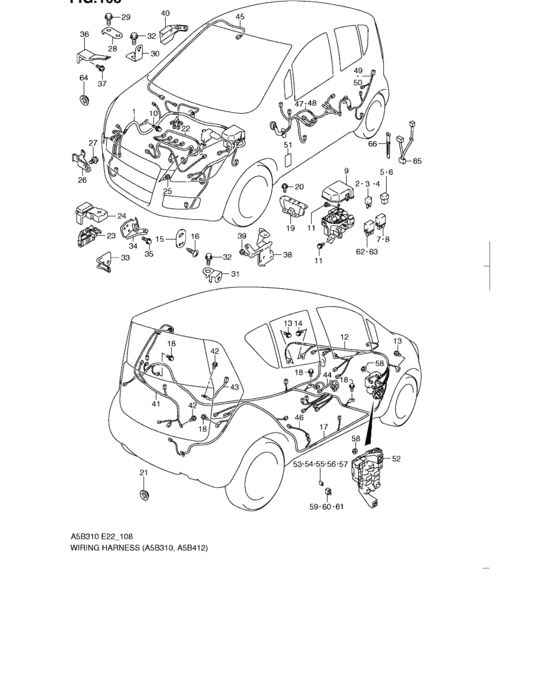

Wiring harness (A5B310,A5B412) 112 / 112
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 36601-51K50-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K60-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K70-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K80-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K50-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K60-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K70-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K80-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K00-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K10-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K20-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K30-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K40-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K00-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K10-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K20-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K30-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K40-000 | Harness assy, main | Harness assy, main |
| 2 | 09481-10501-000 | FUSE(10A) | FUSE(10A) |
| 3 | 09481-15501-000 | FUSE(15A) | FUSE(15A) |
| 4 | 09481-30501-000 | FUSE(30A) | FUSE(30A) |
| 5 | 09481-30401-000 | FUSE(30A) | FUSE(30A) |
| 6 | 09481-50401-000 | FUSE(50A) | FUSE(50A) |
| 7 | 38860-76F01-000 | RELAY ASSY - Relay, starting motor | RELAY ASSY - Relay, starting motor |
| 9 | 36717-63J00-000 | COVER,RELAY BOX | COVER,RELAY BOX |
| 10 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| 11 | 01550-0616A-000 | Bolt | Bolt |
| 12 | 36602-51K00-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36602-51K20-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36602-52K10-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36602-51K50-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36602-52K30-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36602-51K60-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36620-51K00-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36620-52K00-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36620-52K10-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 14 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 15 | 36621-51K00-000 | Bracket, harness hvac | Bracket, harness hvac |
| 16 | 03141-0516A-000 | SCREW | SCREW |
| 17 | 36603-51K00-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K50-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K60-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K70-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K80-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36630-51K00-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36630-51K30-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36630-51K40-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K10-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K20-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K30-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K40-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36630-51K10-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36630-51K20-000 | Harness assy, floor | Harness assy, floor |
| 19 | 75881-62J00-000 | BRACKET,FLOOR CONSOLE BOX,FR | BRACKET,FLOOR CONSOLE BOX,FR |
| 21 | 09250-25007-000 | CAP(OD:25.0) | CAP(OD:25.0) |
| 22 | 36650-51K00-000 | Harness assy, engine | Harness assy, engine |
| 22 | 36650-51K30-000 | Harness assy, engine | Harness assy, engine |
| 22 | 36650-51K20-000 | Harness assy, engine | Harness assy, engine |
| 22 | 36650-51K10-000 | Harness assy, engine | Harness assy, engine |
| 23 | 36739-62J00-000 | FUSE,BATTERY | FUSE,BATTERY |
| 24 | 36694-84A00-000 | Cover,btry terminal | Cover,btry terminal |
| 24 | 36694-68K00-000 | COVER,BTRY TERMINAL | COVER,BTRY TERMINAL |
| 25 | 01550-0612A-000 | Bolt | Bolt |
| 26 | 36651-51K00-000 | BRACKET,ENG HARN T/M | BRACKET,ENG HARN T/M |
| 27 | 01550-0812A-000 | Bolt | Bolt |
| 28 | 36651-51G00-000 | BRACKET,ENG HARN | BRACKET,ENG HARN |
| 30 | 36651-68HE0-000 | BRACKET,HARN | BRACKET,HARN |
| 31 | 36995-57B30-000 | BRACKET,HARN | BRACKET,HARN |
| 33 | 36653-51K00-000 | BRACKET,ENG HARN THERMO | BRACKET,ENG HARN THERMO |
| 34 | 36653-51K20-000 | Bracket, engine harness egr | Bracket, engine harness egr |
| 36 | 36653-62J00-000 | BRACKET,ENG HARN APRON | BRACKET,ENG HARN APRON |
| 38 | 23870-63J00-000 | BRACKET,CLUTCH OIL PIPE | BRACKET,CLUTCH OIL PIPE |
| 40 | 36654-51K20-000 | BRACKET,ENG HARN HOOK | BRACKET,ENG HARN HOOK |
| 41 | 36680-51K10-000 | Harness assy, back door | Harness assy, back door |
| 41 | 36680-51K00-000 | Harness assy, back door | Harness assy, back door |
| 41 | 36680-51KB0-000 | Harness assy, back door | Harness assy, back door |
| 41 | 36680-51KA0-000 | HARNESS ASSY,BACK DOOR | HARNESS ASSY,BACK DOOR |
| 43 | 36891-80G00-000 | WIRE,RR DF GND | WIRE,RR DF GND |
| 44 | 36615-51K00-000 | Wire, power steering | Wire, power steering |
| 45 | 36820-51K00-000 | Wire, doom lamp | Wire, doom lamp |
| 46 | 36840-51K00-000 | WIRE,FUEL PUMP | WIRE,FUEL PUMP |
| 47 | 36756-51KA0-000 | Wire, front door main | Wire, front door main |
| 47 | 36756-51KB0-000 | Wire, front door main | Wire, front door main |
| 47 | 36756-51KC0-000 | Wire, front door main | Wire, front door main |
| 47 | 36756-51K00-000 | Wire, front door main | Wire, front door main |
| 47 | 36756-51K10-000 | WIRE,P/W MAIN | WIRE,P/W MAIN |
| 47 | 36756-51K20-000 | Wire, front door main | Wire, front door main |
| 48 | 36757-51KA0-000 | Wire, front door sub | Wire, front door sub |
| 48 | 36757-51KB0-000 | Wire, front door sub | Wire, front door sub |
| 48 | 36757-51KC0-000 | Wire, front door sub | Wire, front door sub |
| 48 | 36757-51K00-000 | Wire, front door sub | Wire, front door sub |
| 48 | 36757-51K10-000 | WIRE,P/W SUB | WIRE,P/W SUB |
| 48 | 36757-51K20-000 | Wire, front door sub | Wire, front door sub |
| 49 | 36751-51K00-000 | Wire, rear door lh | Wire, rear door lh |
| 49 | 36751-51K10-000 | WIRE,RR DR SIDE,R | WIRE,RR DR SIDE,R |
| 50 | 36751-51KB0-000 | WIRE,RR DR SIDE,L | WIRE,RR DR SIDE,L |
| 51 | 84761-50X50-000 | SEAL,140X190 - Seal, rr defogger wire hole | SEAL,140X190 - Seal, rr defogger wire hole |
| 52 | 36780-51KB0-000 | Box set,j/b & body cont mdl | Box set,j/b & body cont mdl |
| 52 | 36780-51KB2-000 | BOX SET,J/B&BODY CONT MDL | BOX SET,J/B&BODY CONT MDL |
| 52 | 36780-51KA1-000 | Box set,j/b & bcm | Box set,j/b & bcm |
| 52 | 36780-51KA3-000 | BOX SET,J/B&BODY CONT MDL | BOX SET,J/B&BODY CONT MDL |
| 52 | 36780-51K10-000 | Box set,j/b & body cont mdl | Box set,j/b & body cont mdl |
| 52 | 36780-51K11-000 | BOX SET,J/B&BCM | BOX SET,J/B&BCM |
| 52 | 36780-51K12-000 | BOX SET,J/B&BODY CONT MDL | BOX SET,J/B&BODY CONT MDL |
| 52 | 36780-51K01-000 | Box set,j/b & bcm | Box set,j/b & bcm |
| 52 | 36780-51K03-000 | BOX SET,J/B&BODY CONT MDL | BOX SET,J/B&BODY CONT MDL |
| 55 | 09481-20501-000 | FUSE(20A) | FUSE(20A) |
| 56 | 09481-25501-000 | FUSE(25A) | FUSE(25A) |
| 58 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 64 | 72999-67H00-000 | CAP,OD:40 | CAP,OD:40 |
| 65 | 36691-51K00-000 | WIRE,A/B | WIRE,A/B |
| 66 | 09407-18402-000 | CLAMP(L:165) - Clamp (l:165) | CLAMP(L:165) - Clamp (l:165) |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 7 | 01550-0612A-000 | Bolt | Bolt |
| 20 | 01550-0616A-000 | Bolt | Bolt |
| 6 | 01550-0812A-000 | Bolt | Bolt |
| 30 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 52 | 03141-0516A-000 | SCREW | SCREW |
| 5 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 3 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| 21 | 09250-25007-000 | CAP(OD:25.0) | CAP(OD:25.0) |
| 60 | 09407-18402-000 | CLAMP(L:165) - Clamp (l:165) | CLAMP(L:165) - Clamp (l:165) |
| 2 | 09481-10501-000 | FUSE(10A) | FUSE(10A) |
| 3 | 09481-15501-000 | FUSE(15A) | FUSE(15A) |
| 55 | 09481-20501-000 | FUSE(20A) | FUSE(20A) |
| 56 | 09481-25501-000 | FUSE(25A) | FUSE(25A) |
| 5 | 09481-30401-000 | FUSE(30A) | FUSE(30A) |
| 4 | 09481-30501-000 | FUSE(30A) | FUSE(30A) |
| 6 | 09481-50401-000 | FUSE(50A) | FUSE(50A) |
| 38 | 23870-63J00-000 | BRACKET,CLUTCH OIL PIPE | BRACKET,CLUTCH OIL PIPE |
| 1 | 36601-51K00-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K10-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K20-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K30-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K40-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K50-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K60-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K70-000 | Harness assy, main | Harness assy, main |
| 1 | 36601-51K80-000 | Harness assy, main | Harness assy, main |
| 12 | 36602-51K00-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36602-51K20-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36602-51K50-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36602-51K60-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36602-52K10-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36602-52K30-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 17 | 36603-51K00-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K10-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K20-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K30-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K40-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K50-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K60-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K70-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36603-51K80-000 | Harness assy, floor | Harness assy, floor |
| 1 | 36610-51K00-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K10-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K20-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K30-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K40-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K50-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K60-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K70-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-51K80-000 | Harness assy, main | Harness assy, main |
| 44 | 36615-51K00-000 | Wire, power steering | Wire, power steering |
| 12 | 36620-51K00-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36620-52K00-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 12 | 36620-52K10-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 15 | 36621-51K00-000 | Bracket, harness hvac | Bracket, harness hvac |
| 17 | 36630-51K00-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36630-51K10-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36630-51K20-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36630-51K30-000 | Harness assy, floor | Harness assy, floor |
| 17 | 36630-51K40-000 | Harness assy, floor | Harness assy, floor |
| 22 | 36650-51K00-000 | Harness assy, engine | Harness assy, engine |
| 22 | 36650-51K10-000 | Harness assy, engine | Harness assy, engine |
| 22 | 36650-51K20-000 | Harness assy, engine | Harness assy, engine |
| 22 | 36650-51K30-000 | Harness assy, engine | Harness assy, engine |
| 28 | 36651-51G00-000 | BRACKET,ENG HARN | BRACKET,ENG HARN |
| 26 | 36651-51K00-000 | BRACKET,ENG HARN T/M | BRACKET,ENG HARN T/M |
| 30 | 36651-68HE0-000 | BRACKET,HARN | BRACKET,HARN |
| 33 | 36653-51K00-000 | BRACKET,ENG HARN THERMO | BRACKET,ENG HARN THERMO |
| 34 | 36653-51K20-000 | Bracket, engine harness egr | Bracket, engine harness egr |
| 36 | 36653-62J00-000 | BRACKET,ENG HARN APRON | BRACKET,ENG HARN APRON |
| 40 | 36654-51K20-000 | BRACKET,ENG HARN HOOK | BRACKET,ENG HARN HOOK |
| 41 | 36680-51K00-000 | Harness assy, back door | Harness assy, back door |
| 41 | 36680-51K10-000 | Harness assy, back door | Harness assy, back door |
| 41 | 36680-51KA0-000 | HARNESS ASSY,BACK DOOR | HARNESS ASSY,BACK DOOR |
| 41 | 36680-51KB0-000 | Harness assy, back door | Harness assy, back door |
| 59 | 36691-51K00-000 | WIRE,A/B | WIRE,A/B |
| 7 | 36694-68K00-000 | COVER,BTRY TERMINAL | COVER,BTRY TERMINAL |
| 7 | 36694-84A00-000 | Cover,btry terminal | Cover,btry terminal |
| 9 | 36717-63J00-000 | COVER,RELAY BOX | COVER,RELAY BOX |
| 8 | 36739-62J00-000 | FUSE,BATTERY | FUSE,BATTERY |
| 49 | 36751-51K00-000 | Wire, rear door lh | Wire, rear door lh |
| 49 | 36751-51K10-000 | WIRE,RR DR SIDE,R | WIRE,RR DR SIDE,R |
| 50 | 36751-51KB0-000 | WIRE,RR DR SIDE,L | WIRE,RR DR SIDE,L |
| 47 | 36756-51K00-000 | Wire, front door main | Wire, front door main |
| 47 | 36756-51K10-000 | WIRE,P/W MAIN | WIRE,P/W MAIN |
| 47 | 36756-51K20-000 | Wire, front door main | Wire, front door main |
| 47 | 36756-51KA0-000 | Wire, front door main | Wire, front door main |
| 47 | 36756-51KB0-000 | Wire, front door main | Wire, front door main |
| 47 | 36756-51KC0-000 | Wire, front door main | Wire, front door main |
| 48 | 36757-51K00-000 | Wire, front door sub | Wire, front door sub |
| 48 | 36757-51K10-000 | WIRE,P/W SUB | WIRE,P/W SUB |
| 48 | 36757-51K20-000 | Wire, front door sub | Wire, front door sub |
| 48 | 36757-51KA0-000 | Wire, front door sub | Wire, front door sub |
| 48 | 36757-51KB0-000 | Wire, front door sub | Wire, front door sub |
| 48 | 36757-51KC0-000 | Wire, front door sub | Wire, front door sub |
| 52 | 36780-51K01-000 | Box set,j/b & bcm | Box set,j/b & bcm |
| 52 | 36780-51K03-000 | BOX SET,J/B&BODY CONT MDL | BOX SET,J/B&BODY CONT MDL |
| 52 | 36780-51K10-000 | Box set,j/b & body cont mdl | Box set,j/b & body cont mdl |
| 52 | 36780-51K11-000 | BOX SET,J/B&BCM | BOX SET,J/B&BCM |
| 52 | 36780-51K12-000 | BOX SET,J/B&BODY CONT MDL | BOX SET,J/B&BODY CONT MDL |
| 52 | 36780-51KA1-000 | Box set,j/b & bcm | Box set,j/b & bcm |
| 52 | 36780-51KA3-000 | BOX SET,J/B&BODY CONT MDL | BOX SET,J/B&BODY CONT MDL |
| 52 | 36780-51KB0-000 | Box set,j/b & body cont mdl | Box set,j/b & body cont mdl |
| 52 | 36780-51KB2-000 | BOX SET,J/B&BODY CONT MDL | BOX SET,J/B&BODY CONT MDL |
| 45 | 36820-51K00-000 | Wire, doom lamp | Wire, doom lamp |
| 46 | 36840-51K00-000 | WIRE,FUEL PUMP | WIRE,FUEL PUMP |
| 43 | 36891-80G00-000 | WIRE,RR DF GND | WIRE,RR DF GND |
| 31 | 36995-57B30-000 | BRACKET,HARN | BRACKET,HARN |
| 18 | 38860-76F01-000 | RELAY ASSY - Relay, starting motor | RELAY ASSY - Relay, starting motor |
| 64 | 72999-67H00-000 | CAP,OD:40 | CAP,OD:40 |
| 19 | 75881-62J00-000 | BRACKET,FLOOR CONSOLE BOX,FR | BRACKET,FLOOR CONSOLE BOX,FR |
| 29 | 84761-50X50-000 | SEAL,140X190 - Seal, rr defogger wire hole | SEAL,140X190 - Seal, rr defogger wire hole |
