Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 31 of 3,419 shared
A5B412
Suzuki SPLASH — 31 of 3,419 shared

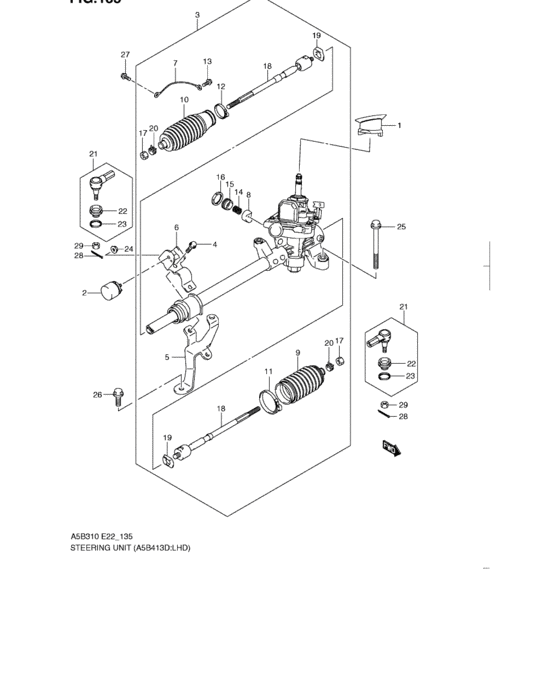

Steering unit (A5B413D:LHD) 31 / 31
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 48451-73K80-000 | GROMMET,STEERING GEAR CASE | GROMMET,STEERING GEAR CASE |
| 2 | 48315-63J30-000 | DAMPER,STEERING GEAR BOX | DAMPER,STEERING GEAR BOX |
| 3 | 48580-73KH1-000 | Box assy, strg gear | Box assy, strg gear |
| 4 | 48523-63J00-000 | BOLT,BRACKET | BOLT,BRACKET |
| 5 | 48527-63J00-000 | BRACKET,GEAR RACK SIDE NO.1 | BRACKET,GEAR RACK SIDE NO.1 |
| 6 | 48529-63J00-000 | BRACKET,GEAR RACK SIDE NO.2 | BRACKET,GEAR RACK SIDE NO.2 |
| 7 | 48531-63J00-000 | WIRE,EARTH | WIRE,EARTH |
| 8 | 48534-63J00-000 | PLUNGER,STEERING RACK | PLUNGER,STEERING RACK |
| 9 | 48571-63J00-000 | BOOT,STEERING PINION SIDE | BOOT,STEERING PINION SIDE |
| 10 | 48572-63J00-000 | BOOT,STEERING RACK SIDE | BOOT,STEERING RACK SIDE |
| 11 | 48575-63J00-000 | BAND,PINION SIDE | BAND,PINION SIDE |
| 12 | 48576-63J00-000 | BAND,RACK SIDE | BAND,RACK SIDE |
| 13 | 48577-63J00-000 | Bolt | Bolt |
| 14 | 48591-63J00-000 | SPRING,RACK PLUNGER | SPRING,RACK PLUNGER |
| 15 | 48592-63J00-000 | PLUG,ADJUSTING | PLUG,ADJUSTING |
| 16 | 48593-63J00-000 | NUT,PLUG | NUT,PLUG |
| 17 | 48817-63J00-000 | NUT,TIE-ROD END LOCK | NUT,TIE-ROD END LOCK |
| 18 | 48830-63J00-000 | TIE-ROD,STEERING | TIE-ROD,STEERING |
| 19 | 48841-63J00-000 | WASHER,TIE ROD LOCK | WASHER,TIE ROD LOCK |
| 20 | 48871-63J00-000 | CLAMP,BOOT | CLAMP,BOOT |
| 21 | 48810-60J00-000 | END,STEERING TIE-ROD | END,STEERING TIE-ROD |
| 22 | 48819-60B00-000 | BOOT SET | BOOT SET |
| 22 | 48819-60B01-000 | Boot Set | Boot Set |
| 22 | 48800-60810-000 | Boot Set | Boot Set |
| 23 | 09401-23402-000 | CLIP | CLIP |
| 24 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 25 | 48528-79J00-000 | BOLT,STRG GEAR BOX NO.1 | BOLT,STRG GEAR BOX NO.1 |
| 26 | 09103-10216-000 | BOLT(10X20) | BOLT(10X20) |
| 27 | 09115-06008-000 | BOLT(6X16) | BOLT(6X16) |
| 28 | 04111-3020A-000 | PIN | PIN |
| 29 | 08314-4012A-000 | NUT | NUT |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 26 | 04111-3020A-000 | PIN | PIN |
| 27 | 08314-4012A-000 | NUT | NUT |
| 5 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 24 | 09103-10216-000 | BOLT(10X20) | BOLT(10X20) |
| 25 | 09115-06008-000 | BOLT(6X16) | BOLT(6X16) |
| 22 | 09401-23402-000 | CLIP | CLIP |
| 2 | 48315-63J30-000 | DAMPER,STEERING GEAR BOX | DAMPER,STEERING GEAR BOX |
| 1 | 48451-73K80-000 | GROMMET,STEERING GEAR CASE | GROMMET,STEERING GEAR CASE |
| 4 | 48523-63J00-000 | BOLT,BRACKET | BOLT,BRACKET |
| 5 | 48527-63J00-000 | BRACKET,GEAR RACK SIDE NO.1 | BRACKET,GEAR RACK SIDE NO.1 |
| 23 | 48528-79J00-000 | BOLT,STRG GEAR BOX NO.1 | BOLT,STRG GEAR BOX NO.1 |
| 6 | 48529-63J00-000 | BRACKET,GEAR RACK SIDE NO.2 | BRACKET,GEAR RACK SIDE NO.2 |
| 6 | 48531-63J00-000 | WIRE,EARTH | WIRE,EARTH |
| 7 | 48534-63J00-000 | PLUNGER,STEERING RACK | PLUNGER,STEERING RACK |
| 8 | 48571-63J00-000 | BOOT,STEERING PINION SIDE | BOOT,STEERING PINION SIDE |
| 9 | 48572-63J00-000 | BOOT,STEERING RACK SIDE | BOOT,STEERING RACK SIDE |
| 11 | 48575-63J00-000 | BAND,PINION SIDE | BAND,PINION SIDE |
| 12 | 48576-63J00-000 | BAND,RACK SIDE | BAND,RACK SIDE |
| 12 | 48577-63J00-000 | Bolt | Bolt |
| 3 | 48580-73KH1-000 | Box assy, strg gear | Box assy, strg gear |
| 13 | 48591-63J00-000 | SPRING,RACK PLUNGER | SPRING,RACK PLUNGER |
| 14 | 48592-63J00-000 | PLUG,ADJUSTING | PLUG,ADJUSTING |
| 15 | 48593-63J00-000 | NUT,PLUG | NUT,PLUG |
| 21 | 48800-60810-000 | Boot Set | Boot Set |
| 20 | 48810-60J00-000 | END,STEERING TIE-ROD | END,STEERING TIE-ROD |
| 16 | 48817-63J00-000 | NUT,TIE-ROD END LOCK | NUT,TIE-ROD END LOCK |
| 21 | 48819-60B00-000 | BOOT SET | BOOT SET |
| 21 | 48819-60B01-000 | Boot Set | Boot Set |
| 17 | 48830-63J00-000 | TIE-ROD,STEERING | TIE-ROD,STEERING |
| 18 | 48841-63J00-000 | WASHER,TIE ROD LOCK | WASHER,TIE ROD LOCK |
| 19 | 48871-63J00-000 | CLAMP,BOOT | CLAMP,BOOT |
