Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 17 of 3,419 shared
A5B412
Suzuki SPLASH — 17 of 3,419 shared

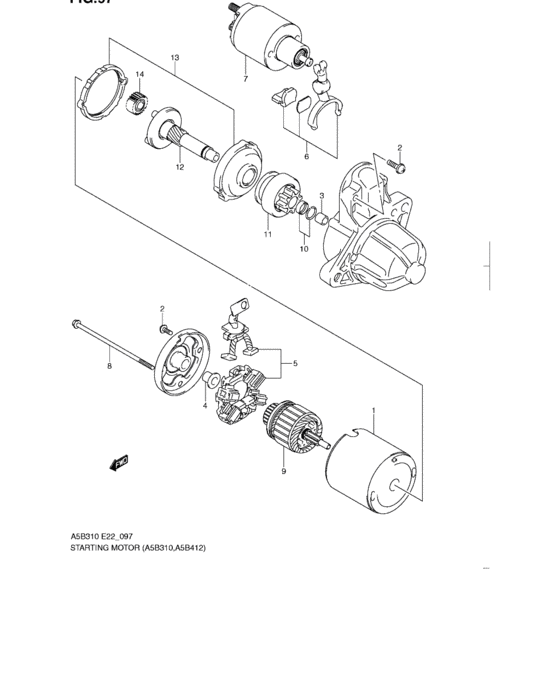

Starting motor (A5B310,A5B412) 17 / 17
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 31100-51K00-000 | Motor assy, starting | Motor assy, starting |
| 2 | 31110-63J00-000 | YOKE ASSY | YOKE ASSY |
| 3 | 31136-79030-000 | SCREW ASSY | SCREW ASSY |
| 3 | 31175-79030-000 | Screw Set | Screw Set |
| 4 | 31152-63J00-000 | BEARING,FRONT | BEARING,FRONT |
| 5 | 31172-64B60-000 | BEARING,REAR | BEARING,REAR |
| 6 | 31173-63J00-000 | BRUSH ASSY | BRUSH ASSY |
| 7 | 31191-63J00-000 | LEVER ASSY | LEVER ASSY |
| 8 | 31220-63J00-000 | SWITCH ASSY | SWITCH ASSY |
| 9 | 31261-75F10-000 | Bolt | Bolt |
| 10 | 31311-63J00-000 | ARMATURE | ARMATURE |
| 11 | 31313-86030-000 | STOPPER SET | STOPPER SET |
| 11 | 31314-86030-000 | Stopper Set | Stopper Set |
| 12 | 31320-63J00-000 | CLUTCH,OVER RUNNING | CLUTCH,OVER RUNNING |
| 13 | 31341-63J00-000 | SHAFT ASSY,GEAR | SHAFT ASSY,GEAR |
| 14 | 31343-63J00-000 | INTERNAL GEAR | INTERNAL GEAR |
| 15 | 31344-63J00-000 | GEAR ASSY | GEAR ASSY |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 31100-51K00-000 | Motor assy, starting | Motor assy, starting |
| 2 | 31110-63J00-000 | YOKE ASSY | YOKE ASSY |
| 3 | 31136-79030-000 | SCREW ASSY | SCREW ASSY |
| 4 | 31152-63J00-000 | BEARING,FRONT | BEARING,FRONT |
| 5 | 31172-64B60-000 | BEARING,REAR | BEARING,REAR |
| 6 | 31173-63J00-000 | BRUSH ASSY | BRUSH ASSY |
| 3 | 31175-79030-000 | Screw Set | Screw Set |
| 7 | 31191-63J00-000 | LEVER ASSY | LEVER ASSY |
| 8 | 31220-63J00-000 | SWITCH ASSY | SWITCH ASSY |
| 9 | 31261-75F10-000 | Bolt | Bolt |
| 10 | 31311-63J00-000 | ARMATURE | ARMATURE |
| 11 | 31313-86030-000 | STOPPER SET | STOPPER SET |
| 11 | 31314-86030-000 | Stopper Set | Stopper Set |
| 12 | 31320-63J00-000 | CLUTCH,OVER RUNNING | CLUTCH,OVER RUNNING |
| 13 | 31341-63J00-000 | SHAFT ASSY,GEAR | SHAFT ASSY,GEAR |
| 14 | 31343-63J00-000 | INTERNAL GEAR | INTERNAL GEAR |
| 15 | 31344-63J00-000 | GEAR ASSY | GEAR ASSY |
