Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 39 of 3,419 shared
A5B412
Suzuki SPLASH — 39 of 3,419 shared

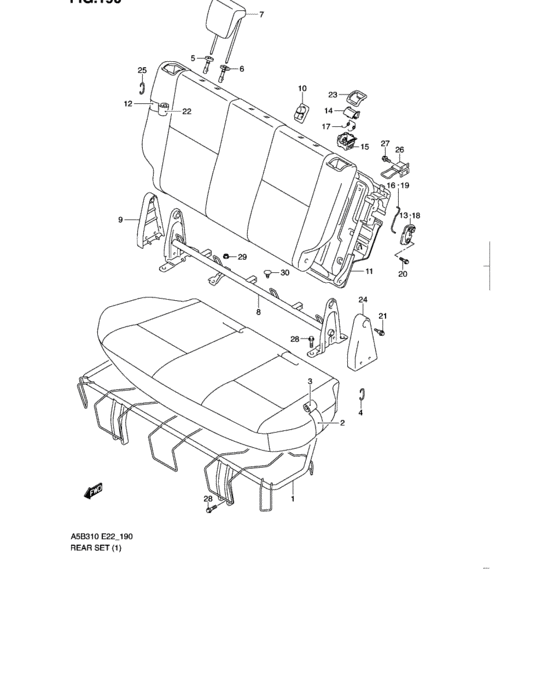

Rear seat (GA,GL) 39 / 39
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 87110-51KA0-000 | Frame, rr cush | Frame, rr cush |
| 2 | 87160-51KA0-000 | Pad, rr cush | Pad, rr cush |
| 3 | 87180-51KA0-EVY | Trim, rr cushion - Gray/black | Trim, rr cushion - Gray/black |
| 3 | 87180-51KA0-EWA | Trim, rr cushion - Gray | Trim, rr cushion - Gray |
| 3 | 87180-51KA0-FAP | Trim, rr cushion - Blue | Trim, rr cushion - Blue |
| 3 | 87180-51KA0-FAS | Trim, rr cushion - Black | Trim, rr cushion - Black |
| 4 | 09387-19001-000 | RING | RING |
| 5 | 85341-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 5 | 85341-63J11-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 5 | 85341-63J12-P4Z | Guide,headrestraint | Guide,headrestraint |
| 6 | 85840-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 6 | 85840-63J11-P4Z | GUIDE COMP,HEADRESTRAINT | GUIDE COMP,HEADRESTRAINT |
| 6 | 85840-63J12-P4Z | Guide Comp,headrestraint | Guide Comp,headrestraint |
| 7 | 86401-62J20-V2M | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 8 | 87210-51KA0-000 | Bracket, hinge low | Bracket, hinge low |
| 9 | 87222-51KA0-S1S | Cover, hinge lower rh - Gray | Cover, hinge lower rh - Gray |
| 10 | 87225-53JA0-S1S | COVER,TETHER ANCHOR - Gray | COVER,TETHER ANCHOR - Gray |
| 11 | 87310-51KA0-000 | Frame, rr back | Frame, rr back |
| 12 | 87360-51KA0-000 | Pad, rr back | Pad, rr back |
| 13 | 87480-62J02-000 | LOCK ASSY,RR BACK,R | LOCK ASSY,RR BACK,R |
| 14 | 87483-80J00-S1S | Knob, lock - Gray | Knob, lock - Gray |
| 15 | 87484-79J01-000 | Case, lock | Case, lock |
| 16 | 87485-51K00-000 | WIRE,RR BACK LOCK,R | WIRE,RR BACK LOCK,R |
| 17 | 87486-79J00-000 | SPRING,BACK KNOB | SPRING,BACK KNOB |
| 18 | 87980-62J02-000 | LOCK ASSY,RR BACK,L | LOCK ASSY,RR BACK,L |
| 19 | 87985-51K00-000 | WIRE,RR BACK LOCK,L | WIRE,RR BACK LOCK,L |
| 20 | 01550-0835A-000 | Bolt | Bolt |
| 21 | 87333-51K00-000 | BOLT,RR HINGE | BOLT,RR HINGE |
| 22 | 87380-51KA2-EVY | Trim, rr back - Gray/black | Trim, rr back - Gray/black |
| 22 | 87380-51KA2-EWA | Trim, rr back - Gray | Trim, rr back - Gray |
| 22 | 87380-51KA2-FAP | Trim, rr back - Blue | Trim, rr back - Blue |
| 22 | 87380-51KA2-FAS | Trim, rr back - Black | Trim, rr back - Black |
| 23 | 87482-80J00-S1S | BEZEL,RR BACK LOCK | BEZEL,RR BACK LOCK |
| 24 | 87722-51KA0-S1S | Cover, hinge lower lh - Gray | Cover, hinge lower lh - Gray |
| 26 | 87870-62J00-000 | STRIKER,RR BACK | STRIKER,RR BACK |
| 27 | 01551-0820A-000 | Bolt | Bolt |
| 28 | 01551-1025A-000 | Bolt | Bolt |
| 29 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 30 | 09409-10310-5PK | Clip | Clip |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 11 | 01550-0835A-000 | Bolt | Bolt |
| 46 | 01551-0820A-000 | Bolt | Bolt |
| 14 | 01551-1025A-000 | Bolt | Bolt |
| 50 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 4 | 09387-19001-000 | RING | RING |
| 30 | 09409-10310-5PK | Clip | Clip |
| 13 | 85341-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 13 | 85341-63J11-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 13 | 85341-63J12-P4Z | Guide,headrestraint | Guide,headrestraint |
| 15 | 85840-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 15 | 85840-63J11-P4Z | GUIDE COMP,HEADRESTRAINT | GUIDE COMP,HEADRESTRAINT |
| 15 | 85840-63J12-P4Z | Guide Comp,headrestraint | Guide Comp,headrestraint |
| 7 | 86401-62J20-V2M | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 1 | 87110-51KA0-000 | Frame, rr cush | Frame, rr cush |
| 2 | 87160-51KA0-000 | Pad, rr cush | Pad, rr cush |
| 3 | 87180-51KA0-EVY | Trim, rr cushion - Gray/black | Trim, rr cushion - Gray/black |
| 3 | 87180-51KA0-EWA | Trim, rr cushion - Gray | Trim, rr cushion - Gray |
| 3 | 87180-51KA0-FAP | Trim, rr cushion - Blue | Trim, rr cushion - Blue |
| 3 | 87180-51KA0-FAS | Trim, rr cushion - Black | Trim, rr cushion - Black |
| 8 | 87210-51KA0-000 | Bracket, hinge low | Bracket, hinge low |
| 9 | 87222-51KA0-S1S | Cover, hinge lower rh - Gray | Cover, hinge lower rh - Gray |
| 10 | 87225-53JA0-S1S | COVER,TETHER ANCHOR - Gray | COVER,TETHER ANCHOR - Gray |
| 11 | 87310-51KA0-000 | Frame, rr back | Frame, rr back |
| 21 | 87333-51K00-000 | BOLT,RR HINGE | BOLT,RR HINGE |
| 12 | 87360-51KA0-000 | Pad, rr back | Pad, rr back |
| 22 | 87380-51KA2-EVY | Trim, rr back - Gray/black | Trim, rr back - Gray/black |
| 22 | 87380-51KA2-EWA | Trim, rr back - Gray | Trim, rr back - Gray |
| 22 | 87380-51KA2-FAP | Trim, rr back - Blue | Trim, rr back - Blue |
| 22 | 87380-51KA2-FAS | Trim, rr back - Black | Trim, rr back - Black |
| 13 | 87480-62J02-000 | LOCK ASSY,RR BACK,R | LOCK ASSY,RR BACK,R |
| 23 | 87482-80J00-S1S | BEZEL,RR BACK LOCK | BEZEL,RR BACK LOCK |
| 14 | 87483-80J00-S1S | Knob, lock - Gray | Knob, lock - Gray |
| 15 | 87484-79J01-000 | Case, lock | Case, lock |
| 16 | 87485-51K00-000 | WIRE,RR BACK LOCK,R | WIRE,RR BACK LOCK,R |
| 17 | 87486-79J00-000 | SPRING,BACK KNOB | SPRING,BACK KNOB |
| 24 | 87722-51KA0-S1S | Cover, hinge lower lh - Gray | Cover, hinge lower lh - Gray |
| 26 | 87870-62J00-000 | STRIKER,RR BACK | STRIKER,RR BACK |
| 18 | 87980-62J02-000 | LOCK ASSY,RR BACK,L | LOCK ASSY,RR BACK,L |
| 19 | 87985-51K00-000 | WIRE,RR BACK LOCK,L | WIRE,RR BACK LOCK,L |
