A5B310
Suzuki SPLASH — 19 of 3,419 shared
A5B412
Suzuki SPLASH — 19 of 3,419 shared

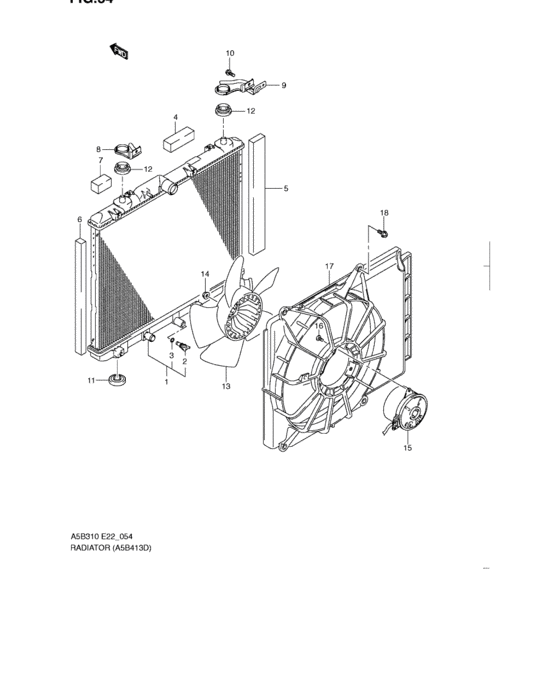

Radiator (A5B413D) 19 / 19
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 17700-53K00-000 | Radiator assy | Radiator assy |
| 2 | 17751-61A00-000 | PLUG,DRAIN | PLUG,DRAIN |
| 3 | 17759-72010-000 | O-RING | O-RING |
| 4 | 17791-51K00-000 | SEAL,RADIATOR NO.1 | SEAL,RADIATOR NO.1 |
| 5 | 17791-53K00-000 | Seal, radiator | Seal, radiator |
| 6 | 17792-53K00-000 | Seal, radiator | Seal, radiator |
| 7 | 17792-63J00-000 | SEAL,RADIATOR NO.2 | SEAL,RADIATOR NO.2 |
| 8 | 17861-53K00-000 | Bracket, radiator sup upper | Bracket, radiator sup upper |
| 9 | 17862-53K00-000 | Bracket, radiator sup upper | Bracket, radiator sup upper |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 11 | 17878-75F00-000 | MOUNT,RDTR SUPPORT LWR | MOUNT,RDTR SUPPORT LWR |
| 12 | 17879-83E00-000 | MOUNT,RDTR SUPPORT UPR | MOUNT,RDTR SUPPORT UPR |
| 13 | 17111-62J50-000 | Fan, cooling - Main | Fan, cooling - Main |
| 14 | 08316-2005A-000 | NUT | NUT |
| 15 | 17120-72K50-000 | Motor assy, fan | Motor assy, fan |
| 16 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | SCREW - Bolt, oil pump rotor plate |
| 16 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 17 | 17760-53K00-000 | Shroud, eng cooling | Shroud, eng cooling |
| 18 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 16 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | SCREW - Bolt, oil pump rotor plate |
| 16 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 30 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 17 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 15 | 08316-2005A-000 | NUT | NUT |
| 13 | 17111-62J50-000 | Fan, cooling - Main | Fan, cooling - Main |
| 15 | 17120-72K50-000 | Motor assy, fan | Motor assy, fan |
| 1 | 17700-53K00-000 | Radiator assy | Radiator assy |
| 3 | 17751-61A00-000 | PLUG,DRAIN | PLUG,DRAIN |
| 4 | 17759-72010-000 | O-RING | O-RING |
| 17 | 17760-53K00-000 | Shroud, eng cooling | Shroud, eng cooling |
| 5 | 17791-51K00-000 | SEAL,RADIATOR NO.1 | SEAL,RADIATOR NO.1 |
| 5 | 17791-53K00-000 | Seal, radiator | Seal, radiator |
| 6 | 17792-53K00-000 | Seal, radiator | Seal, radiator |
| 6 | 17792-63J00-000 | SEAL,RADIATOR NO.2 | SEAL,RADIATOR NO.2 |
| 8 | 17861-53K00-000 | Bracket, radiator sup upper | Bracket, radiator sup upper |
| 9 | 17862-53K00-000 | Bracket, radiator sup upper | Bracket, radiator sup upper |
| 10 | 17878-75F00-000 | MOUNT,RDTR SUPPORT LWR | MOUNT,RDTR SUPPORT LWR |
| 11 | 17879-83E00-000 | MOUNT,RDTR SUPPORT UPR | MOUNT,RDTR SUPPORT UPR |
