A5B310
Suzuki SPLASH — 33 of 3,419 shared
A5B412
Suzuki SPLASH — 33 of 3,419 shared

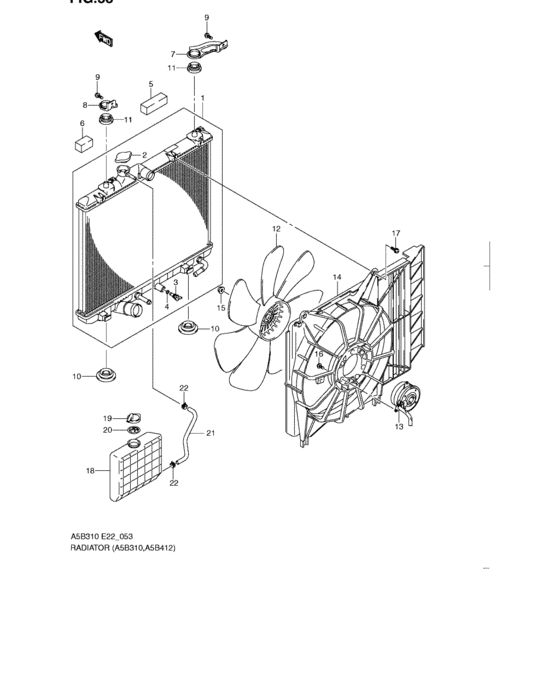

Radiator (A5B310,A5B412) 33 / 33
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 17700-73KB0-000 | RADIATOR ASSY | RADIATOR ASSY |
| 1 | 17700-73KE0-000 | Radiator assy | Radiator assy |
| 1 | 17700-73KA0-000 | RADIATOR ASSY | RADIATOR ASSY |
| 1 | 17700-73KD0-000 | Radiator assy | Radiator assy |
| 2 | 17920-75F00-000 | CAP,RADIATOR | CAP,RADIATOR |
| 3 | 17751-61A00-000 | PLUG,DRAIN | PLUG,DRAIN |
| 4 | 17759-72010-000 | O-RING | O-RING |
| 5 | 17791-51K00-000 | SEAL,RADIATOR NO.1 | SEAL,RADIATOR NO.1 |
| 6 | 17792-63J00-000 | SEAL,RADIATOR NO.2 | SEAL,RADIATOR NO.2 |
| 7 | 17861-73K00-000 | BRACKET,RDTR SUPPORT UPPER,R | BRACKET,RDTR SUPPORT UPPER,R |
| 8 | 17862-73K00-000 | BRACKET,RDTR SUPPORT UPPER,L | BRACKET,RDTR SUPPORT UPPER,L |
| 9 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 10 | 17878-75F00-000 | MOUNT,RDTR SUPPORT LWR | MOUNT,RDTR SUPPORT LWR |
| 11 | 17879-83E00-000 | MOUNT,RDTR SUPPORT UPR | MOUNT,RDTR SUPPORT UPR |
| 12 | 17111-62J00-000 | FAN,COOLING | FAN,COOLING |
| 12 | 17111-79J00-000 | FAN,COOLING | FAN,COOLING |
| 13 | 17120-62JB0-000 | MOTOR ASSY,FAN | MOTOR ASSY,FAN |
| 13 | 17120-79J00-000 | MOTOR ASSY,FAN | MOTOR ASSY,FAN |
| 13 | 17120-80JA0-000 | MOTOR ASSY,COOLING FAN | MOTOR ASSY,COOLING FAN |
| 14 | 17760-73KB0-000 | SHROUD ASSY | SHROUD ASSY |
| 14 | 17760-73KA0-000 | SHROUD ASSY | SHROUD ASSY |
| 15 | 08316-2005A-000 | NUT | NUT |
| 16 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | SCREW - Bolt, oil pump rotor plate |
| 16 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 16 | 17129-50F10-000 | SCREW,FAN MOTOR | SCREW,FAN MOTOR |
| 17 | 02162-0616A-000 | SCREW | SCREW |
| 17 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 18 | 17931-62J00-000 | TANK,WATER RESERVE | TANK,WATER RESERVE |
| 19 | 17932-63J00-000 | CAP,WATER RESERVE TANK | CAP,WATER RESERVE TANK |
| 20 | 17933-62J00-000 | SEAL,WATER RSVR TANK | SEAL,WATER RSVR TANK |
| 21 | 17939-51KA0-000 | Hose, radiator to rsv tank | Hose, radiator to rsv tank |
| 21 | 17939-51KA1-000 | HOSE,RDTR TO RSV TANK | HOSE,RDTR TO RSV TANK |
| 22 | 09401-11415-000 | CLIP | CLIP |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 16 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | SCREW - Bolt, oil pump rotor plate |
| 16 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 30 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 17 | 02162-0616A-000 | SCREW | SCREW |
| 17 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 15 | 08316-2005A-000 | NUT | NUT |
| 22 | 09401-11415-000 | CLIP | CLIP |
| 12 | 17111-62J00-000 | FAN,COOLING | FAN,COOLING |
| 12 | 17111-79J00-000 | FAN,COOLING | FAN,COOLING |
| 13 | 17120-62JB0-000 | MOTOR ASSY,FAN | MOTOR ASSY,FAN |
| 13 | 17120-79J00-000 | MOTOR ASSY,FAN | MOTOR ASSY,FAN |
| 13 | 17120-80JA0-000 | MOTOR ASSY,COOLING FAN | MOTOR ASSY,COOLING FAN |
| 16 | 17129-50F10-000 | SCREW,FAN MOTOR | SCREW,FAN MOTOR |
| 1 | 17700-73KA0-000 | RADIATOR ASSY | RADIATOR ASSY |
| 1 | 17700-73KB0-000 | RADIATOR ASSY | RADIATOR ASSY |
| 1 | 17700-73KD0-000 | Radiator assy | Radiator assy |
| 1 | 17700-73KE0-000 | Radiator assy | Radiator assy |
| 3 | 17751-61A00-000 | PLUG,DRAIN | PLUG,DRAIN |
| 4 | 17759-72010-000 | O-RING | O-RING |
| 14 | 17760-73KA0-000 | SHROUD ASSY | SHROUD ASSY |
| 14 | 17760-73KB0-000 | SHROUD ASSY | SHROUD ASSY |
| 5 | 17791-51K00-000 | SEAL,RADIATOR NO.1 | SEAL,RADIATOR NO.1 |
| 6 | 17792-63J00-000 | SEAL,RADIATOR NO.2 | SEAL,RADIATOR NO.2 |
| 7 | 17861-73K00-000 | BRACKET,RDTR SUPPORT UPPER,R | BRACKET,RDTR SUPPORT UPPER,R |
| 8 | 17862-73K00-000 | BRACKET,RDTR SUPPORT UPPER,L | BRACKET,RDTR SUPPORT UPPER,L |
| 10 | 17878-75F00-000 | MOUNT,RDTR SUPPORT LWR | MOUNT,RDTR SUPPORT LWR |
| 11 | 17879-83E00-000 | MOUNT,RDTR SUPPORT UPR | MOUNT,RDTR SUPPORT UPR |
| 2 | 17920-75F00-000 | CAP,RADIATOR | CAP,RADIATOR |
| 18 | 17931-62J00-000 | TANK,WATER RESERVE | TANK,WATER RESERVE |
| 19 | 17932-63J00-000 | CAP,WATER RESERVE TANK | CAP,WATER RESERVE TANK |
| 20 | 17933-62J00-000 | SEAL,WATER RSVR TANK | SEAL,WATER RSVR TANK |
| 21 | 17939-51KA0-000 | Hose, radiator to rsv tank | Hose, radiator to rsv tank |
| 21 | 17939-51KA1-000 | HOSE,RDTR TO RSV TANK | HOSE,RDTR TO RSV TANK |
