Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 9 of 3,419 shared
A5B412
Suzuki SPLASH — 9 of 3,419 shared

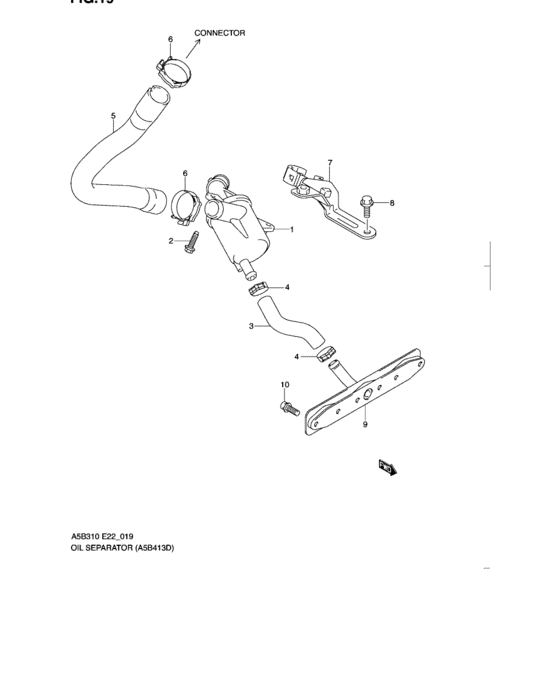

Oil separator (A5B413D) 9 / 9
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 11181-M86J0-000 | Separator, oil & air | Separator, oil & air |
| 2 | 11182-N86J0-000 | Bolt - 6x20 | Bolt - 6x20 |
| 3 | 11192-M86J0-000 | Hose, separator drain | Hose, separator drain |
| 4 | 11194-N86J0-000 | Clamp, sep drain hose | Clamp, sep drain hose |
| 5 | 11193-M86J0-000 | Hose, separator inlet | Hose, separator inlet |
| 6 | 11195-N86J0-000 | Clamp, sep inlet hose | Clamp, sep inlet hose |
| 7 | 11196-M86J0-100 | Bracket, sep inlet hose | Bracket, sep inlet hose |
| 8 | 13943-N86J0-000 | Bolt, eng harn brkt fr | Bolt, eng harn brkt fr |
| 9 | 11197-N86J0-000 | Cover comp, crankcase vent | Cover comp, crankcase vent |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 11181-M86J0-000 | Separator, oil & air | Separator, oil & air |
| 2 | 11182-N86J0-000 | Bolt - 6x20 | Bolt - 6x20 |
| 3 | 11192-M86J0-000 | Hose, separator drain | Hose, separator drain |
| 5 | 11193-M86J0-000 | Hose, separator inlet | Hose, separator inlet |
| 4 | 11194-N86J0-000 | Clamp, sep drain hose | Clamp, sep drain hose |
| 6 | 11195-N86J0-000 | Clamp, sep inlet hose | Clamp, sep inlet hose |
| 7 | 11196-M86J0-100 | Bracket, sep inlet hose | Bracket, sep inlet hose |
| 9 | 11197-N86J0-000 | Cover comp, crankcase vent | Cover comp, crankcase vent |
| 11 | 13943-N86J0-000 | Bolt, eng harn brkt fr | Bolt, eng harn brkt fr |
