Search › Compare › A5B310 × A5B412

A5B310 × A5B412

Shared 17 / Total 3,419 · Jaccard 100%
A5B310 Suzuki SPLASH — 17 of 3,419 shared
A5B412 Suzuki SPLASH — 17 of 3,419 shared

← Back to categories

17 items

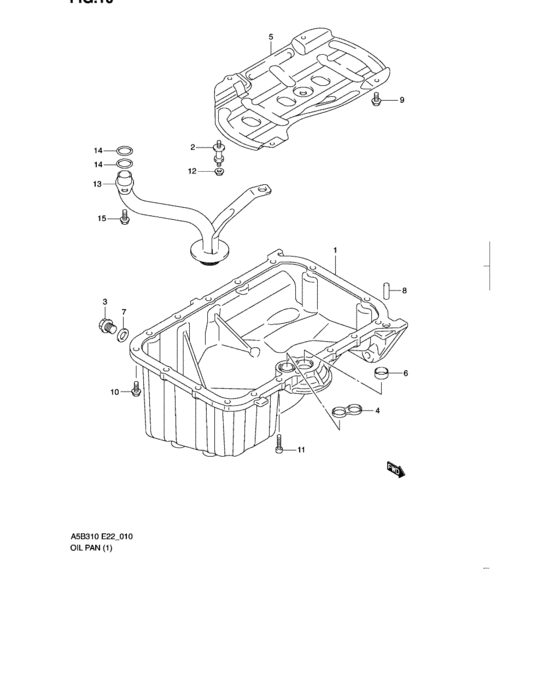

Oil pan (A5B310) 17 / 17
A5B310 Oil pan (A5B310)
A5B412 Oil pan (A5B310)
# OEM A5B310 A5B412
1 11511-51K00-000 PAN,OIL PAN,OIL
2 11515-51K02-000 Bolt,oil pan baffle Bolt,oil pan baffle
2 11515-51K03-000 BOLT,OIL PAN BAFFLE STUD BOLT,OIL PAN BAFFLE STUD
3 11518-63J10-000 Plug,Oil Drain Plug,Oil Drain
4 11518-69J00-000 O-RING,OIL PAN O-RING,OIL PAN
5 11541-51K00-000 Plate,oil pan baffle Plate,oil pan baffle
5 11541-51K10-000 PLATE,OIL PAN BAFFLE PLATE,OIL PAN BAFFLE
6 16114-69J00-000 PIN,OIL PAN DOWEL PIN,OIL PAN DOWEL
7 09168-14015-000 GASKET(14X20X1.5) - Gasket, oil hose union GASKET(14X20X1.5) - Gasket, oil hose union
8 09202-08004-000 PIN(8X23) PIN(8X23)
9 01550-0612A-000 Bolt Bolt
10 01550-0625A-000 Bolt Bolt
11 07130-0625A-000 Bolt Bolt
12 08316-1006A-000 NUT NUT
13 16520-51K00-000 STRAINER,OIL PUMP STRAINER,OIL PUMP
14 09280-17002-000 O RING(D:2.4,ID:16.8) - O ring (d:2.4,id:16.8) O RING(D:2.4,ID:16.8) - O ring (d:2.4,id:16.8)
15 07120-0616A-000 Bolt Bolt
