Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 26 of 3,419 shared
A5B412
Suzuki SPLASH — 26 of 3,419 shared

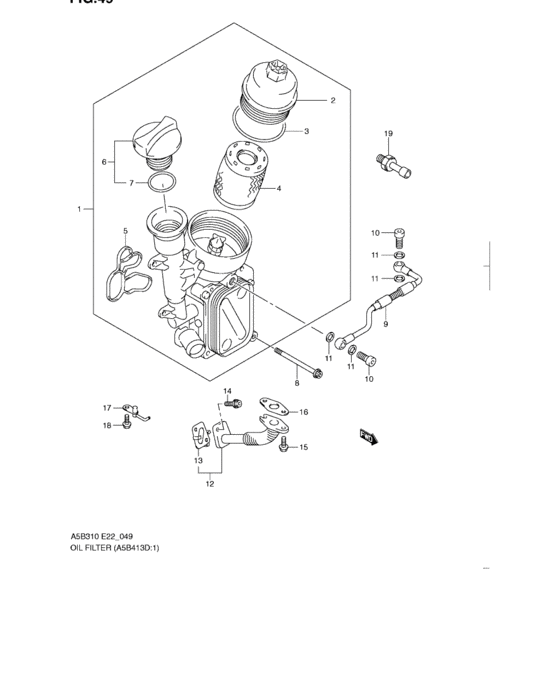

Oil filter (A5B413D:Z13DTJ) 26 / 26
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 16510-85E01-000 | Filter assy, oil | Filter assy, oil |
| 1 | 16510-85E10-000 | Filter assy, oil | Filter assy, oil |
| 2 | 16522-85E00-000 | Cover, oil fltr | Cover, oil fltr |
| 2 | 16522-85E10-000 | Cover, oil fltr | Cover, oil fltr |
| 3 | 16621-85E00-000 | Seal, oil fltr cover | Seal, oil fltr cover |
| 3 | 16621-85E10-000 | Seal, oil fltr cover | Seal, oil fltr cover |
| 4 | 16511-85E00-000 | Element, oil fltr | Element, oil fltr |
| 4 | 16511-85E10-000 | Element, oil fltr | Element, oil fltr |
| 5 | 16512-85E00-000 | Seal, oil fltr hsg | Seal, oil fltr hsg |
| 5 | 16512-85E10-000 | Seal, oil fltr hsg | Seal, oil fltr hsg |
| 6 | 16920-85E00-000 | Cap, oil filler | Cap, oil filler |
| 6 | 16920-85E10-000 | Cap, oil filler | Cap, oil filler |
| 7 | 16921-85E00-000 | O ring | O ring |
| 7 | 16921-85E10-000 | O ring | O ring |
| 8 | 16593-85E00-000 | Bolt, oil fltr | Bolt, oil fltr |
| 9 | 13930-85E10-000 | Pipe assy, fltr hsg to turbo | Pipe assy, fltr hsg to turbo |
| 10 | 13948-85E10-000 | Bolt, fltr hsg | Bolt, fltr hsg |
| 11 | 13949-85E10-000 | Gasket, pipe to turbo | Gasket, pipe to turbo |
| 12 | 13940-N86J0-000 | Pipe, tc oil drain | Pipe, tc oil drain |
| 13 | 13944-N86J0-000 | Gasket, tc oil dr oclr side | Gasket, tc oil dr oclr side |
| 14 | 13942-N86J0-000 | Screw, ckp sensor | Screw, ckp sensor |
| 15 | 13943-N86J0-000 | Bolt, eng harn brkt fr | Bolt, eng harn brkt fr |
| 16 | 13945-N86J0-000 | Gasket, tc oil dr tc side | Gasket, tc oil dr tc side |
| 17 | 16710-M86J0-000 | Jet, piston cooling | Jet, piston cooling |
| 18 | 16719-N86J0-000 | Bolt - 6x16 | Bolt - 6x16 |
| 19 | 37820-N86J0-000 | Switch assy, oil pressure | Switch assy, oil pressure |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 9 | 13930-85E10-000 | Pipe assy, fltr hsg to turbo | Pipe assy, fltr hsg to turbo |
| 12 | 13940-N86J0-000 | Pipe, tc oil drain | Pipe, tc oil drain |
| 14 | 13942-N86J0-000 | Screw, ckp sensor | Screw, ckp sensor |
| 11 | 13943-N86J0-000 | Bolt, eng harn brkt fr | Bolt, eng harn brkt fr |
| 13 | 13944-N86J0-000 | Gasket, tc oil dr oclr side | Gasket, tc oil dr oclr side |
| 16 | 13945-N86J0-000 | Gasket, tc oil dr tc side | Gasket, tc oil dr tc side |
| 10 | 13948-85E10-000 | Bolt, fltr hsg | Bolt, fltr hsg |
| 11 | 13949-85E10-000 | Gasket, pipe to turbo | Gasket, pipe to turbo |
| 1 | 16510-85E01-000 | Filter assy, oil | Filter assy, oil |
| 1 | 16510-85E10-000 | Filter assy, oil | Filter assy, oil |
| 4 | 16511-85E00-000 | Element, oil fltr | Element, oil fltr |
| 4 | 16511-85E10-000 | Element, oil fltr | Element, oil fltr |
| 5 | 16512-85E00-000 | Seal, oil fltr hsg | Seal, oil fltr hsg |
| 5 | 16512-85E10-000 | Seal, oil fltr hsg | Seal, oil fltr hsg |
| 2 | 16522-85E00-000 | Cover, oil fltr | Cover, oil fltr |
| 2 | 16522-85E10-000 | Cover, oil fltr | Cover, oil fltr |
| 8 | 16593-85E00-000 | Bolt, oil fltr | Bolt, oil fltr |
| 3 | 16621-85E00-000 | Seal, oil fltr cover | Seal, oil fltr cover |
| 3 | 16621-85E10-000 | Seal, oil fltr cover | Seal, oil fltr cover |
| 17 | 16710-M86J0-000 | Jet, piston cooling | Jet, piston cooling |
| 18 | 16719-N86J0-000 | Bolt - 6x16 | Bolt - 6x16 |
| 6 | 16920-85E00-000 | Cap, oil filler | Cap, oil filler |
| 6 | 16920-85E10-000 | Cap, oil filler | Cap, oil filler |
| 7 | 16921-85E00-000 | O ring | O ring |
| 7 | 16921-85E10-000 | O ring | O ring |
| 19 | 37820-N86J0-000 | Switch assy, oil pressure | Switch assy, oil pressure |
