Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 7 of 3,419 shared
A5B412
Suzuki SPLASH — 7 of 3,419 shared

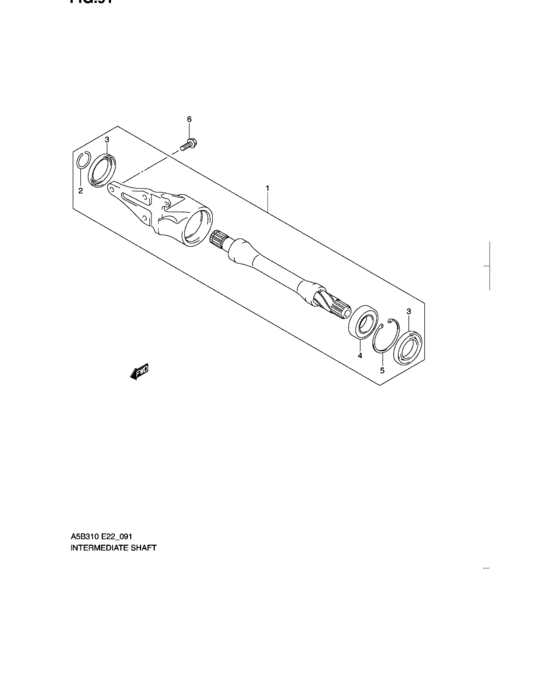

Intermediate shaft (A5B413D) 7 / 7
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 27800-72KA0-000 | SHAFT ASSY,DRIVE INTERMEDIATE | SHAFT ASSY,DRIVE INTERMEDIATE |
| 2 | 09381-22014-000 | RING,SNAP | RING,SNAP |
| 3 | 27841-64G00-000 | SEAL,DRIVE INTERMEDIATE | SEAL,DRIVE INTERMEDIATE |
| 4 | 09262-28030-000 | Bearing,28x58x16 | Bearing,28x58x16 |
| 4 | 27831-68L10-000 | BEARING,DRIVE INTERMEDIATE | BEARING,DRIVE INTERMEDIATE |
| 5 | 08331-4158A-000 | CIRCLIP | CIRCLIP |
| 6 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Bolt - Bolt, mount oil seal cover |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 6 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Bolt - Bolt, mount oil seal cover |
| 5 | 08331-4158A-000 | CIRCLIP | CIRCLIP |
| 4 | 09262-28030-000 | Bearing,28x58x16 | Bearing,28x58x16 |
| 2 | 09381-22014-000 | RING,SNAP | RING,SNAP |
| 1 | 27800-72KA0-000 | SHAFT ASSY,DRIVE INTERMEDIATE | SHAFT ASSY,DRIVE INTERMEDIATE |
| 4 | 27831-68L10-000 | BEARING,DRIVE INTERMEDIATE | BEARING,DRIVE INTERMEDIATE |
| 3 | 27841-64G00-000 | SEAL,DRIVE INTERMEDIATE | SEAL,DRIVE INTERMEDIATE |
