Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 18 of 3,419 shared
A5B412
Suzuki SPLASH — 18 of 3,419 shared

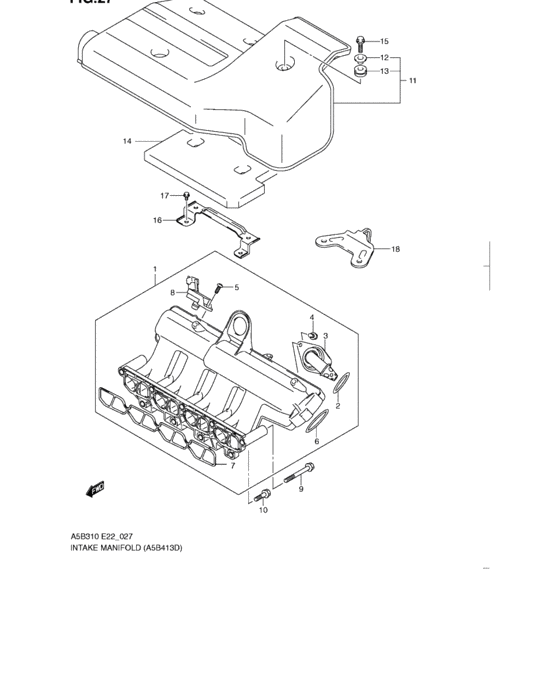

Intake manifold (A5B413D) 18 / 18
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 13110-N86J0-000 | Manifold assy, intake | Manifold assy, intake |
| 2 | 13112-N86J0-000 | Gasket, pipe on intk manf | Gasket, pipe on intk manf |
| 3 | 13113-N86J0-000 | Pipe, egr on intk manf | Pipe, egr on intk manf |
| 4 | 13114-N86J0-000 | Bolt, intk manf pipe - M6 | Bolt, intk manf pipe - M6 |
| 5 | 13115-N86J0-000 | Bolt, pressure sensor | Bolt, pressure sensor |
| 6 | 13118-N86J0-000 | Gasket, intk manf inlet | Gasket, intk manf inlet |
| 7 | 13119-N86J0-000 | Gasket, intake manifold | Gasket, intake manifold |
| 8 | 18590-N86J0-000 | Sensor, air pressure intake | Sensor, air pressure intake |
| 9 | 13117-N86J0-000 | Bolt, intk manf - 8x70 | Bolt, intk manf - 8x70 |
| 10 | 18716-N86J0-000 | Bolt - 8x25 | Bolt - 8x25 |
| 11 | 13170-62J50-000 | Cover, engine | Cover, engine |
| 12 | 13172-62J50-000 | Spacer | Spacer |
| 13 | 13173-62J50-000 | Cushion | Cushion |
| 14 | 13171-53K00-000 | Silencer, injector | Silencer, injector |
| 15 | 13174-54G00-000 | BOLT,ENG COVER | BOLT,ENG COVER |
| 16 | 13175-62J50-000 | Bracket | Bracket |
| 17 | 01550-0612A-000 | Bolt | Bolt |
| 18 | 11853-M86J0-000 | Hook, engine | Hook, engine |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 7 | 01550-0612A-000 | Bolt | Bolt |
| 18 | 11853-M86J0-000 | Hook, engine | Hook, engine |
| 1 | 13110-N86J0-000 | Manifold assy, intake | Manifold assy, intake |
| 2 | 13112-N86J0-000 | Gasket, pipe on intk manf | Gasket, pipe on intk manf |
| 3 | 13113-N86J0-000 | Pipe, egr on intk manf | Pipe, egr on intk manf |
| 4 | 13114-N86J0-000 | Bolt, intk manf pipe - M6 | Bolt, intk manf pipe - M6 |
| 5 | 13115-N86J0-000 | Bolt, pressure sensor | Bolt, pressure sensor |
| 9 | 13117-N86J0-000 | Bolt, intk manf - 8x70 | Bolt, intk manf - 8x70 |
| 6 | 13118-N86J0-000 | Gasket, intk manf inlet | Gasket, intk manf inlet |
| 7 | 13119-N86J0-000 | Gasket, intake manifold | Gasket, intake manifold |
| 11 | 13170-62J50-000 | Cover, engine | Cover, engine |
| 14 | 13171-53K00-000 | Silencer, injector | Silencer, injector |
| 12 | 13172-62J50-000 | Spacer | Spacer |
| 13 | 13173-62J50-000 | Cushion | Cushion |
| 15 | 13174-54G00-000 | BOLT,ENG COVER | BOLT,ENG COVER |
| 16 | 13175-62J50-000 | Bracket | Bracket |
| 8 | 18590-N86J0-000 | Sensor, air pressure intake | Sensor, air pressure intake |
| 6 | 18716-N86J0-000 | Bolt - 8x25 | Bolt - 8x25 |
