A5B310
Suzuki SPLASH — 9 of 3,419 shared
A5B412
Suzuki SPLASH — 9 of 3,419 shared

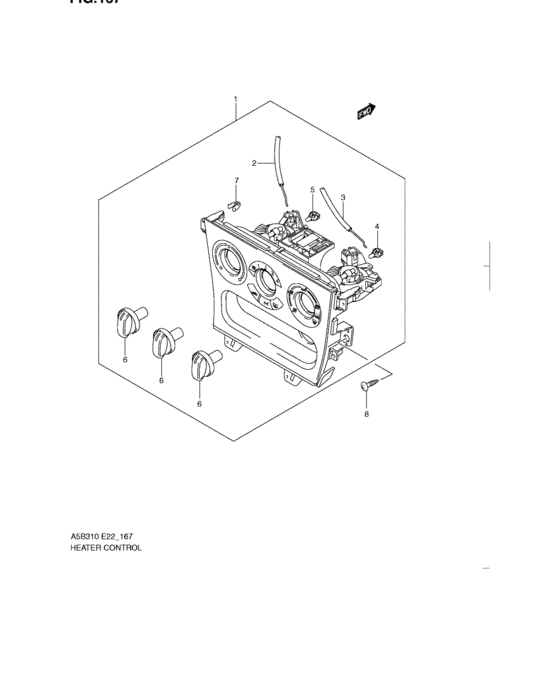

Heater control (HEATER CONTROL) 9 / 9
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 74400-51K00-EZR | Control unit, heater | Control unit, heater |
| 1 | 74400-51K20-EZR | CONTROL UNIT,HVAC | CONTROL UNIT,HVAC |
| 2 | 74452-51K00-000 | CABLE,TEMP CONT(BLUE) | CABLE,TEMP CONT(BLUE) |
| 3 | 74451-51K00-000 | CABLE,MODE CONT(WHITE) | CABLE,MODE CONT(WHITE) |
| 4 | 74531-62J00-000 | BULB,W/RED CAP | BULB,W/RED CAP |
| 5 | 74532-86G00-000 | BULB(CLEAR) | BULB(CLEAR) |
| 6 | 74461-51K00-000 | KNOB,HTR CONT | KNOB,HTR CONT |
| 7 | 09409-08342-000 | CLIP | CLIP |
| 8 | 03541-0516A-000 | SCREW | SCREW |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 3 | 03541-0516A-000 | SCREW | SCREW |
| 6 | 09409-08342-000 | CLIP | CLIP |
| 1 | 74400-51K00-EZR | Control unit, heater | Control unit, heater |
| 1 | 74400-51K20-EZR | CONTROL UNIT,HVAC | CONTROL UNIT,HVAC |
| 3 | 74451-51K00-000 | CABLE,MODE CONT(WHITE) | CABLE,MODE CONT(WHITE) |
| 2 | 74452-51K00-000 | CABLE,TEMP CONT(BLUE) | CABLE,TEMP CONT(BLUE) |
| 6 | 74461-51K00-000 | KNOB,HTR CONT | KNOB,HTR CONT |
| 4 | 74531-62J00-000 | BULB,W/RED CAP | BULB,W/RED CAP |
| 5 | 74532-86G00-000 | BULB(CLEAR) | BULB(CLEAR) |
