Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 23 of 3,419 shared
A5B412
Suzuki SPLASH — 23 of 3,419 shared

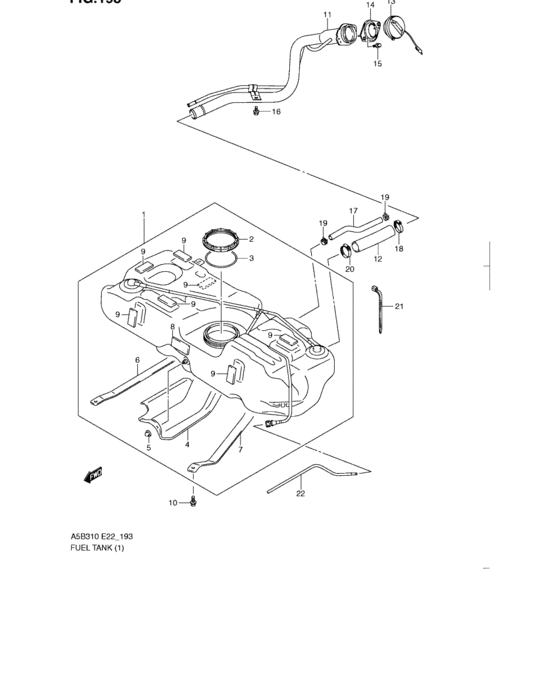

Fuel tank (A5B310,A5B412) 23 / 23
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 89100-51K00-000 | TANK ASSY,FUEL | TANK ASSY,FUEL |
| 2 | 89191-62J00-000 | NUT,FUEL PUMP LOCK | NUT,FUEL PUMP LOCK |
| 3 | 89192-62J00-000 | O-RING,FUEL PUMP | O-RING,FUEL PUMP |
| 4 | 89311-62J00-000 | INSULATOR,HEAT | INSULATOR,HEAT |
| 5 | 89315-62J00-000 | NUT,HEAT INSULATOR | NUT,HEAT INSULATOR |
| 6 | 89360-62J00-000 | BELT,FUEL TANK FIXER,R | BELT,FUEL TANK FIXER,R |
| 7 | 89370-62J02-000 | BELT,FUEL TANK FIXER,L | BELT,FUEL TANK FIXER,L |
| 8 | 89382-72K00-000 | PAD,FUEL TANK | PAD,FUEL TANK |
| 9 | 89385-62J00-000 | PAD,FUEL TANK | PAD,FUEL TANK |
| 10 | 09118-10073-000 | BOLT(10X30) | BOLT(10X30) |
| 11 | 89201-51K11-000 | NECK ASSY,FUEL FILLER | NECK ASSY,FUEL FILLER |
| 12 | 89241-62J00-000 | HOSE,FUEL TANK FILLER | HOSE,FUEL TANK FILLER |
| 13 | 89260-65G00-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 14 | 89285-58J00-000 | PACKING,FUEL FILLER | PACKING,FUEL FILLER |
| 15 | 09116-05014-000 | BOLT(5X20) | BOLT(5X20) |
| 16 | 09116-06205-000 | BOLT(6X16) | BOLT(6X16) |
| 17 | 09355-11188-600 | HOSE(11X17.8X600) | HOSE(11X17.8X600) |
| 18 | 09400-45311-000 | CLAMP | CLAMP |
| 19 | 09401-16407-000 | CLIP | CLIP |
| 20 | 09402-50512-000 | CLAMP | CLAMP |
| 21 | 09407-19401-000 | CLAMP(L:190) | CLAMP(L:190) |
| 22 | 89483-51K20-000 | Pipe, fuel evap | Pipe, fuel evap |
| 22 | 89483-51K00-000 | PIPE,FUEL EVAP | PIPE,FUEL EVAP |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 15 | 09116-05014-000 | BOLT(5X20) | BOLT(5X20) |
| 16 | 09116-06205-000 | BOLT(6X16) | BOLT(6X16) |
| 10 | 09118-10073-000 | BOLT(10X30) | BOLT(10X30) |
| 17 | 09355-11188-600 | HOSE(11X17.8X600) | HOSE(11X17.8X600) |
| 18 | 09400-45311-000 | CLAMP | CLAMP |
| 19 | 09401-16407-000 | CLIP | CLIP |
| 20 | 09402-50512-000 | CLAMP | CLAMP |
| 21 | 09407-19401-000 | CLAMP(L:190) | CLAMP(L:190) |
| 1 | 89100-51K00-000 | TANK ASSY,FUEL | TANK ASSY,FUEL |
| 2 | 89191-62J00-000 | NUT,FUEL PUMP LOCK | NUT,FUEL PUMP LOCK |
| 3 | 89192-62J00-000 | O-RING,FUEL PUMP | O-RING,FUEL PUMP |
| 11 | 89201-51K11-000 | NECK ASSY,FUEL FILLER | NECK ASSY,FUEL FILLER |
| 12 | 89241-62J00-000 | HOSE,FUEL TANK FILLER | HOSE,FUEL TANK FILLER |
| 13 | 89260-65G00-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 14 | 89285-58J00-000 | PACKING,FUEL FILLER | PACKING,FUEL FILLER |
| 4 | 89311-62J00-000 | INSULATOR,HEAT | INSULATOR,HEAT |
| 5 | 89315-62J00-000 | NUT,HEAT INSULATOR | NUT,HEAT INSULATOR |
| 6 | 89360-62J00-000 | BELT,FUEL TANK FIXER,R | BELT,FUEL TANK FIXER,R |
| 7 | 89370-62J02-000 | BELT,FUEL TANK FIXER,L | BELT,FUEL TANK FIXER,L |
| 8 | 89382-72K00-000 | PAD,FUEL TANK | PAD,FUEL TANK |
| 9 | 89385-62J00-000 | PAD,FUEL TANK | PAD,FUEL TANK |
| 22 | 89483-51K00-000 | PIPE,FUEL EVAP | PIPE,FUEL EVAP |
| 22 | 89483-51K20-000 | Pipe, fuel evap | Pipe, fuel evap |
