A5B310
Suzuki SPLASH — 12 of 3,419 shared
A5B412
Suzuki SPLASH — 12 of 3,419 shared

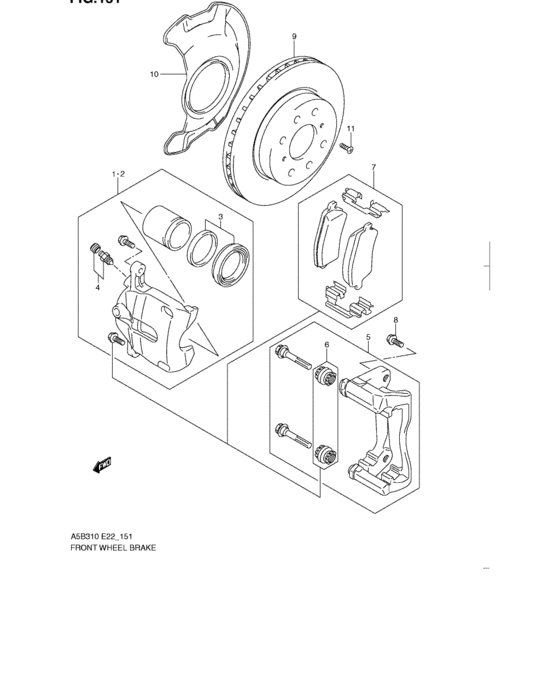

Front wheel brake (FRONT WHEEL BRAKE) 12 / 12
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 55110-62J10-000 | CYLINDER SET,FR BRAKE,R | CYLINDER SET,FR BRAKE,R |
| 2 | 55120-62J10-000 | CYLINDER SET,FR BRAKE,L | CYLINDER SET,FR BRAKE,L |
| 3 | 55830-62J00-000 | SEAL SET | SEAL SET |
| 4 | 55470-62J00-000 | BLEEDER SET | BLEEDER SET |
| 5 | 55860-62J10-000 | CARRIER SET,FR BRAKE | CARRIER SET,FR BRAKE |
| 6 | 55200-62J00-000 | BOOT SET | BOOT SET |
| 7 | 55810-62J50-000 | PAD SET,DISC BRAKE | PAD SET,DISC BRAKE |
| 8 | 09117-12012-000 | BOLT(12X32) | BOLT(12X32) |
| 9 | 55311-62J01-000 | Disc,front brake | Disc,front brake |
| 9 | 55311-62J02-000 | DISC,FR BRAKE | DISC,FR BRAKE |
| 10 | 55321-62J00-000 | COVER,BRAKE DISC DUST | COVER,BRAKE DISC DUST |
| 11 | 02122-0612A-000 | SCREW | SCREW |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 11 | 02122-0612A-000 | SCREW | SCREW |
| 8 | 09117-12012-000 | BOLT(12X32) | BOLT(12X32) |
| 1 | 55110-62J10-000 | CYLINDER SET,FR BRAKE,R | CYLINDER SET,FR BRAKE,R |
| 2 | 55120-62J10-000 | CYLINDER SET,FR BRAKE,L | CYLINDER SET,FR BRAKE,L |
| 6 | 55200-62J00-000 | BOOT SET | BOOT SET |
| 9 | 55311-62J01-000 | Disc,front brake | Disc,front brake |
| 9 | 55311-62J02-000 | DISC,FR BRAKE | DISC,FR BRAKE |
| 10 | 55321-62J00-000 | COVER,BRAKE DISC DUST | COVER,BRAKE DISC DUST |
| 4 | 55470-62J00-000 | BLEEDER SET | BLEEDER SET |
| 7 | 55810-62J50-000 | PAD SET,DISC BRAKE | PAD SET,DISC BRAKE |
| 3 | 55830-62J00-000 | SEAL SET | SEAL SET |
| 5 | 55860-62J10-000 | CARRIER SET,FR BRAKE | CARRIER SET,FR BRAKE |
