Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 38 of 3,419 shared
A5B412
Suzuki SPLASH — 38 of 3,419 shared

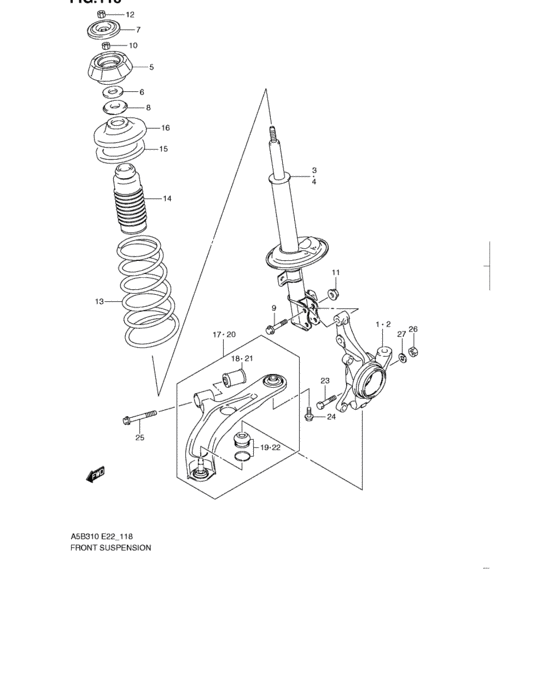

Front suspension (FRONT SUSPENSION) 38 / 38
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 45111-51K10-000 | KNUCKLE,STEERING,R | KNUCKLE,STEERING,R |
| 1 | 45111-51K90-000 | Knuckle, steering rh | Knuckle, steering rh |
| 2 | 45151-51K10-000 | KNUCKLE,STEERING,L | KNUCKLE,STEERING,L |
| 2 | 45151-51K90-000 | Knuckle, steering lh | Knuckle, steering lh |
| 3 | 41601-51KA2-000 | STRUT ASSY,FR SUSPENSION,R | STRUT ASSY,FR SUSPENSION,R |
| 3 | 41601-51KD1-000 | Strut assy, fr suspension rh | Strut assy, fr suspension rh |
| 4 | 41602-51KA2-000 | STRUT ASSY,FR SUSPENSION,L | STRUT ASSY,FR SUSPENSION,L |
| 4 | 41602-51KD1-000 | Strut assy, fr suspension lh | Strut assy, fr suspension lh |
| 5 | 41710-51K00-000 | SUPPORT,FRONT STRUT | SUPPORT,FRONT STRUT |
| 6 | 41711-57K00-000 | PLATE,STRUT BEARING | PLATE,STRUT BEARING |
| 7 | 41720-79J10-000 | STOPPER,FRONT STRUT REBOUND | STOPPER,FRONT STRUT REBOUND |
| 7 | 41720-79J11-000 | Stopper,front Strut Rebound | Stopper,front Strut Rebound |
| 8 | 41742-57K00-000 | BEARING,FR STRUT | BEARING,FR STRUT |
| 9 | 09103-12088-000 | Bolt,12x50 | Bolt,12x50 |
| 10 | 09140-12049-000 | NUT | NUT |
| 11 | 09159-12064-000 | NUT | NUT |
| 12 | 08310-0012A-000 | NUT | NUT |
| 13 | 41111-51KA0-000 | Spring, front coil | Spring, front coil |
| 13 | 41111-51KB0-000 | Spring, front coil | Spring, front coil |
| 13 | 41111-51KB1-000 | SPRING,FRONT COIL | SPRING,FRONT COIL |
| 13 | 41111-51KD0-000 | Spring, front coil | Spring, front coil |
| 13 | 41111-51KE0-000 | Spring, front coil | Spring, front coil |
| 14 | 42111-62J10-000 | STOPPER,FR BUMP | STOPPER,FR BUMP |
| 15 | 41211-62J00-000 | SEAT,FRONT COIL SPRING UPPER | SEAT,FRONT COIL SPRING UPPER |
| 16 | 41230-62J00-000 | SEAT,FRONT SPRING UPPER | SEAT,FRONT SPRING UPPER |
| 17 | 45201-72K00-000 | Arm assy, front suspension rh | Arm assy, front suspension rh |
| 17 | 45201-72K01-000 | ARM ASSY,FR SPNSN,R | ARM ASSY,FR SPNSN,R |
| 18 | 45530-62J00-000 | BUSHING,SPNSN ARM,FR | BUSHING,SPNSN ARM,FR |
| 18 | 45530-63J00-000 | BUSHING,SPNSN ARM,FR | BUSHING,SPNSN ARM,FR |
| 19 | 45714-59810-000 | SEAL SET,DUST | SEAL SET,DUST |
| 19 | 45714-59811-000 | Seal Set,dust | Seal Set,dust |
| 20 | 45202-72K00-000 | Arm assy, front suspension lh | Arm assy, front suspension lh |
| 20 | 45202-72K01-000 | ARM ASSY,FR SPNSN,L | ARM ASSY,FR SPNSN,L |
| 23 | 09100-10222-000 | BOLT(10X50) | BOLT(10X50) |
| 24 | 09135-14018-000 | BOLT(14X77) | BOLT(14X77) |
| 25 | 09135-14011-000 | BOLT(14X90) | BOLT(14X90) |
| 26 | 09159-10048-000 | NUT | NUT |
| 27 | 09160-10142-000 | WASHER(10X20X2.3) - Washer, crankcase bolt | WASHER(10X20X2.3) - Washer, crankcase bolt |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 12 | 08310-0012A-000 | NUT | NUT |
| 23 | 09100-10222-000 | BOLT(10X50) | BOLT(10X50) |
| 9 | 09103-12088-000 | Bolt,12x50 | Bolt,12x50 |
| 25 | 09135-14011-000 | BOLT(14X90) | BOLT(14X90) |
| 24 | 09135-14018-000 | BOLT(14X77) | BOLT(14X77) |
| 10 | 09140-12049-000 | NUT | NUT |
| 26 | 09159-10048-000 | NUT | NUT |
| 11 | 09159-12064-000 | NUT | NUT |
| 27 | 09160-10142-000 | WASHER(10X20X2.3) - Washer, crankcase bolt | WASHER(10X20X2.3) - Washer, crankcase bolt |
| 13 | 41111-51KA0-000 | Spring, front coil | Spring, front coil |
| 13 | 41111-51KB0-000 | Spring, front coil | Spring, front coil |
| 13 | 41111-51KB1-000 | SPRING,FRONT COIL | SPRING,FRONT COIL |
| 13 | 41111-51KD0-000 | Spring, front coil | Spring, front coil |
| 13 | 41111-51KE0-000 | Spring, front coil | Spring, front coil |
| 15 | 41211-62J00-000 | SEAT,FRONT COIL SPRING UPPER | SEAT,FRONT COIL SPRING UPPER |
| 16 | 41230-62J00-000 | SEAT,FRONT SPRING UPPER | SEAT,FRONT SPRING UPPER |
| 3 | 41601-51KA2-000 | STRUT ASSY,FR SUSPENSION,R | STRUT ASSY,FR SUSPENSION,R |
| 3 | 41601-51KD1-000 | Strut assy, fr suspension rh | Strut assy, fr suspension rh |
| 4 | 41602-51KA2-000 | STRUT ASSY,FR SUSPENSION,L | STRUT ASSY,FR SUSPENSION,L |
| 4 | 41602-51KD1-000 | Strut assy, fr suspension lh | Strut assy, fr suspension lh |
| 5 | 41710-51K00-000 | SUPPORT,FRONT STRUT | SUPPORT,FRONT STRUT |
| 6 | 41711-57K00-000 | PLATE,STRUT BEARING | PLATE,STRUT BEARING |
| 7 | 41720-79J10-000 | STOPPER,FRONT STRUT REBOUND | STOPPER,FRONT STRUT REBOUND |
| 7 | 41720-79J11-000 | Stopper,front Strut Rebound | Stopper,front Strut Rebound |
| 8 | 41742-57K00-000 | BEARING,FR STRUT | BEARING,FR STRUT |
| 14 | 42111-62J10-000 | STOPPER,FR BUMP | STOPPER,FR BUMP |
| 1 | 45111-51K10-000 | KNUCKLE,STEERING,R | KNUCKLE,STEERING,R |
| 1 | 45111-51K90-000 | Knuckle, steering rh | Knuckle, steering rh |
| 2 | 45151-51K10-000 | KNUCKLE,STEERING,L | KNUCKLE,STEERING,L |
| 2 | 45151-51K90-000 | Knuckle, steering lh | Knuckle, steering lh |
| 17 | 45201-72K00-000 | Arm assy, front suspension rh | Arm assy, front suspension rh |
| 17 | 45201-72K01-000 | ARM ASSY,FR SPNSN,R | ARM ASSY,FR SPNSN,R |
| 20 | 45202-72K00-000 | Arm assy, front suspension lh | Arm assy, front suspension lh |
| 20 | 45202-72K01-000 | ARM ASSY,FR SPNSN,L | ARM ASSY,FR SPNSN,L |
| 18 | 45530-62J00-000 | BUSHING,SPNSN ARM,FR | BUSHING,SPNSN ARM,FR |
| 18 | 45530-63J00-000 | BUSHING,SPNSN ARM,FR | BUSHING,SPNSN ARM,FR |
| 19 | 45714-59810-000 | SEAL SET,DUST | SEAL SET,DUST |
| 19 | 45714-59811-000 | Seal Set,dust | Seal Set,dust |
