Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 71 of 3,419 shared
A5B412
Suzuki SPLASH — 71 of 3,419 shared

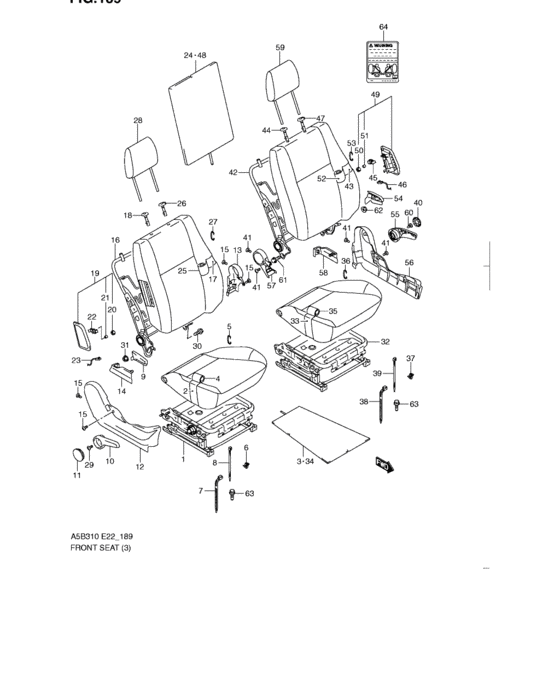

Front seat (GL,GLS:LHD) 71 / 71
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 85103-51K21-000 | FRAME ASSY,FR CUSH,R | FRAME ASSY,FR CUSH,R |
| 2 | 85160-51K00-000 | PAD,FR CUSHION,R | PAD,FR CUSHION,R |
| 3 | 85170-62J00-000 | Heater,fr cush | Heater,fr cush |
| 3 | 85170-62J02-000 | HEATER,FR CUSH | HEATER,FR CUSH |
| 4 | 85180-51K20-EVW | Trim, fr cush rh - Gray | Trim, fr cush rh - Gray |
| 4 | 85180-51K20-EVZ | Trim, fr cush rh - Blue | Trim, fr cush rh - Blue |
| 4 | 85180-51K20-FAN | Trim, fr cush rh - Turquoise | Trim, fr cush rh - Turquoise |
| 4 | 85180-51K20-FAR | Trim, fr cush rh - Black | Trim, fr cush rh - Black |
| 5 | 09387-19001-000 | RING | RING |
| 6 | 85136-51K00-000 | CLAMP,NO.3 | CLAMP,NO.3 |
| 7 | 85138-51K00-000 | Clamp, no.2 | Clamp, no.2 |
| 8 | 85137-51K00-000 | CLAMP | CLAMP |
| 9 | 85211-65J00-S1S | Knob,rclng,r | Knob,rclng,r |
| 9 | 85211-65JA0-S1S | KNOB,RCLNG,R | KNOB,RCLNG,R |
| 10 | 85213-65J00-S1S | LEVER,SEAT LIFTER | LEVER,SEAT LIFTER |
| 11 | 85214-63J20-S1S | CAP,LIFTER LEVER | CAP,LIFTER LEVER |
| 12 | 85221-51K00-S1S | COVER,RCLNG OUTSIDE,R - Gray | COVER,RCLNG OUTSIDE,R - Gray |
| 13 | 85241-51K00-S1S | COVER,RCLNG INSIDE,R - Gray | COVER,RCLNG INSIDE,R - Gray |
| 14 | 85243-51K20-000 | COVER,RR RISER INSIDE,R | COVER,RR RISER INSIDE,R |
| 15 | 85295-51K00-000 | SCREW,RECLINING COVER | SCREW,RECLINING COVER |
| 16 | 85303-51K00-000 | FRAME ASSY,FR BACK,R | FRAME ASSY,FR BACK,R |
| 17 | 85360-62JA0-000 | PAD,FR BACK,R | PAD,FR BACK,R |
| 18 | 85341-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 18 | 85341-63J11-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 18 | 85341-63J12-P4Z | Guide,headrestraint | Guide,headrestraint |
| 19 | 85350-51K00-S1S | Module assy, side air bag rh - Gray | Module assy, side air bag rh - Gray |
| 19 | 85350-51K01-S1S | MODULE ASSY,SIDE A/B,R | MODULE ASSY,SIDE A/B,R |
| 20 | 85352-62J00-000 | NUT,SIDE AIRBAG | NUT,SIDE AIRBAG |
| 21 | 85353-62J00-000 | SLEEVE,SIDE AIRBAG | SLEEVE,SIDE AIRBAG |
| 22 | 85351-62J00-000 | FASTENER,SIDE AIR BAG MTG | FASTENER,SIDE AIR BAG MTG |
| 23 | 85355-51K00-000 | HARNESS ASSY,SIDE AIRBAG | HARNESS ASSY,SIDE AIRBAG |
| 24 | 85370-51K00-000 | Heater, fr back | Heater, fr back |
| 25 | 85380-51KA0-EVW | Trim, fr back rh - Gray | Trim, fr back rh - Gray |
| 25 | 85380-51KA0-EVZ | Trim, fr back rh - Blue | Trim, fr back rh - Blue |
| 25 | 85380-51KA0-FAN | Trim, fr back rh - Turquoise | Trim, fr back rh - Turquoise |
| 25 | 85380-51KA0-FAR | Trim, fr back rh - Black | Trim, fr back rh - Black |
| 25 | 85380-51KE0-EVW | Trim, fr back rh - Gray | Trim, fr back rh - Gray |
| 25 | 85380-51KE0-EVZ | Trim, fr back rh - Blue | Trim, fr back rh - Blue |
| 25 | 85380-51KE0-FAN | Trim, fr back rh - Turquoise | Trim, fr back rh - Turquoise |
| 25 | 85380-51KE0-FAR | Trim, fr back rh - Black | Trim, fr back rh - Black |
| 26 | 85840-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 26 | 85840-63J11-P4Z | GUIDE COMP,HEADRESTRAINT | GUIDE COMP,HEADRESTRAINT |
| 26 | 85840-63J12-P4Z | Guide Comp,headrestraint | Guide Comp,headrestraint |
| 28 | 86401-62J00-V2M | HEADRESTRAINT ASSY - Charcoal | HEADRESTRAINT ASSY - Charcoal |
| 29 | 09132-05043-000 | SCREW(5X10) | SCREW(5X10) |
| 30 | 01550-1016A-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 31 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 32 | 85603-51K21-000 | FRAME ASSY,FR CUSH,L | FRAME ASSY,FR CUSH,L |
| 33 | 85660-51K00-000 | PAD,FR CUSHION,L | PAD,FR CUSHION,L |
| 35 | 85680-51K20-EVW | Trim, fr cush lh - Gray | Trim, fr cush lh - Gray |
| 35 | 85680-51K20-EVZ | Trim, fr cush lh - Blue | Trim, fr cush lh - Blue |
| 35 | 85680-51K20-FAN | Trim, fr cush lh - Turquoise | Trim, fr cush lh - Turquoise |
| 35 | 85680-51K20-FAR | Trim, fr cush lh - Black | Trim, fr cush lh - Black |
| 42 | 85803-51K00-000 | FRAME ASSY,FR BACK,L | FRAME ASSY,FR BACK,L |
| 43 | 85860-62JA0-000 | PAD,FR BACK,L | PAD,FR BACK,L |
| 46 | 85355-62J00-000 | HARNESS ASSY,SIDE AIRBAG | HARNESS ASSY,SIDE AIRBAG |
| 49 | 85850-51K00-S1S | Module assy, side air bag lh - Gray | Module assy, side air bag lh - Gray |
| 49 | 85850-51K01-S1S | MODULE ASSY,SIDE A/B,L | MODULE ASSY,SIDE A/B,L |
| 52 | 85880-51KA0-EVW | Trim, fr back lh - Gray | Trim, fr back lh - Gray |
| 52 | 85880-51KA0-EVZ | Trim, fr back lh - Blue | Trim, fr back lh - Blue |
| 52 | 85880-51KA0-FAN | Trim, fr back lh - Turquoise | Trim, fr back lh - Turquoise |
| 52 | 85880-51KA0-FAR | Trim, fr back lh - Black | Trim, fr back lh - Black |
| 54 | 85711-65J00-S1S | Knob,rclng,l | Knob,rclng,l |
| 54 | 85711-65JA0-S1S | KNOB,RCLNG,L | KNOB,RCLNG,L |
| 55 | 85713-65J00-S1S | LEVER,SEAT LIFTER,L | LEVER,SEAT LIFTER,L |
| 56 | 85721-51K00-S1S | COVER,RCLNG OUTSIDE,L - Gray | COVER,RCLNG OUTSIDE,L - Gray |
| 57 | 85741-51K00-S1S | COVER,RCLNG INSIDE,L - Gray | COVER,RCLNG INSIDE,L - Gray |
| 58 | 85743-51K20-000 | COVER,RR RISER INSIDE,L | COVER,RR RISER INSIDE,L |
| 63 | 09119-08097-000 | BOLT(8X25) | BOLT(8X25) |
| 64 | 85354-59JC1-000 | LABEL,SIDE AIRBAG | LABEL,SIDE AIRBAG |
| 64 | 85354-59JD0-000 | Label, side air bag - Gray | Label, side air bag - Gray |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 18 | 01550-1016A-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 50 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 39 | 09119-08097-000 | BOLT(8X25) | BOLT(8X25) |
| 29 | 09132-05043-000 | SCREW(5X10) | SCREW(5X10) |
| 4 | 09387-19001-000 | RING | RING |
| 1 | 85103-51K21-000 | FRAME ASSY,FR CUSH,R | FRAME ASSY,FR CUSH,R |
| 5 | 85136-51K00-000 | CLAMP,NO.3 | CLAMP,NO.3 |
| 6 | 85137-51K00-000 | CLAMP | CLAMP |
| 7 | 85138-51K00-000 | Clamp, no.2 | Clamp, no.2 |
| 2 | 85160-51K00-000 | PAD,FR CUSHION,R | PAD,FR CUSHION,R |
| 3 | 85170-62J00-000 | Heater,fr cush | Heater,fr cush |
| 3 | 85170-62J02-000 | HEATER,FR CUSH | HEATER,FR CUSH |
| 4 | 85180-51K20-EVW | Trim, fr cush rh - Gray | Trim, fr cush rh - Gray |
| 4 | 85180-51K20-EVZ | Trim, fr cush rh - Blue | Trim, fr cush rh - Blue |
| 4 | 85180-51K20-FAN | Trim, fr cush rh - Turquoise | Trim, fr cush rh - Turquoise |
| 4 | 85180-51K20-FAR | Trim, fr cush rh - Black | Trim, fr cush rh - Black |
| 7 | 85211-65J00-S1S | Knob,rclng,r | Knob,rclng,r |
| 7 | 85211-65JA0-S1S | KNOB,RCLNG,R | KNOB,RCLNG,R |
| 10 | 85213-65J00-S1S | LEVER,SEAT LIFTER | LEVER,SEAT LIFTER |
| 11 | 85214-63J20-S1S | CAP,LIFTER LEVER | CAP,LIFTER LEVER |
| 8 | 85221-51K00-S1S | COVER,RCLNG OUTSIDE,R - Gray | COVER,RCLNG OUTSIDE,R - Gray |
| 9 | 85241-51K00-S1S | COVER,RCLNG INSIDE,R - Gray | COVER,RCLNG INSIDE,R - Gray |
| 14 | 85243-51K20-000 | COVER,RR RISER INSIDE,R | COVER,RR RISER INSIDE,R |
| 10 | 85295-51K00-000 | SCREW,RECLINING COVER | SCREW,RECLINING COVER |
| 11 | 85303-51K00-000 | FRAME ASSY,FR BACK,R | FRAME ASSY,FR BACK,R |
| 13 | 85341-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 13 | 85341-63J11-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 13 | 85341-63J12-P4Z | Guide,headrestraint | Guide,headrestraint |
| 19 | 85350-51K00-S1S | Module assy, side air bag rh - Gray | Module assy, side air bag rh - Gray |
| 19 | 85350-51K01-S1S | MODULE ASSY,SIDE A/B,R | MODULE ASSY,SIDE A/B,R |
| 22 | 85351-62J00-000 | FASTENER,SIDE AIR BAG MTG | FASTENER,SIDE AIR BAG MTG |
| 20 | 85352-62J00-000 | NUT,SIDE AIRBAG | NUT,SIDE AIRBAG |
| 21 | 85353-62J00-000 | SLEEVE,SIDE AIRBAG | SLEEVE,SIDE AIRBAG |
| 64 | 85354-59JC1-000 | LABEL,SIDE AIRBAG | LABEL,SIDE AIRBAG |
| 64 | 85354-59JD0-000 | Label, side air bag - Gray | Label, side air bag - Gray |
| 23 | 85355-51K00-000 | HARNESS ASSY,SIDE AIRBAG | HARNESS ASSY,SIDE AIRBAG |
| 46 | 85355-62J00-000 | HARNESS ASSY,SIDE AIRBAG | HARNESS ASSY,SIDE AIRBAG |
| 17 | 85360-62JA0-000 | PAD,FR BACK,R | PAD,FR BACK,R |
| 24 | 85370-51K00-000 | Heater, fr back | Heater, fr back |
| 25 | 85380-51KA0-EVW | Trim, fr back rh - Gray | Trim, fr back rh - Gray |
| 25 | 85380-51KA0-EVZ | Trim, fr back rh - Blue | Trim, fr back rh - Blue |
| 25 | 85380-51KA0-FAN | Trim, fr back rh - Turquoise | Trim, fr back rh - Turquoise |
| 25 | 85380-51KA0-FAR | Trim, fr back rh - Black | Trim, fr back rh - Black |
| 25 | 85380-51KE0-EVW | Trim, fr back rh - Gray | Trim, fr back rh - Gray |
| 25 | 85380-51KE0-EVZ | Trim, fr back rh - Blue | Trim, fr back rh - Blue |
| 25 | 85380-51KE0-FAN | Trim, fr back rh - Turquoise | Trim, fr back rh - Turquoise |
| 25 | 85380-51KE0-FAR | Trim, fr back rh - Black | Trim, fr back rh - Black |
| 32 | 85603-51K21-000 | FRAME ASSY,FR CUSH,L | FRAME ASSY,FR CUSH,L |
| 21 | 85660-51K00-000 | PAD,FR CUSHION,L | PAD,FR CUSHION,L |
| 35 | 85680-51K20-EVW | Trim, fr cush lh - Gray | Trim, fr cush lh - Gray |
| 35 | 85680-51K20-EVZ | Trim, fr cush lh - Blue | Trim, fr cush lh - Blue |
| 35 | 85680-51K20-FAN | Trim, fr cush lh - Turquoise | Trim, fr cush lh - Turquoise |
| 35 | 85680-51K20-FAR | Trim, fr cush lh - Black | Trim, fr cush lh - Black |
| 33 | 85711-65J00-S1S | Knob,rclng,l | Knob,rclng,l |
| 33 | 85711-65JA0-S1S | KNOB,RCLNG,L | KNOB,RCLNG,L |
| 55 | 85713-65J00-S1S | LEVER,SEAT LIFTER,L | LEVER,SEAT LIFTER,L |
| 34 | 85721-51K00-S1S | COVER,RCLNG OUTSIDE,L - Gray | COVER,RCLNG OUTSIDE,L - Gray |
| 35 | 85741-51K00-S1S | COVER,RCLNG INSIDE,L - Gray | COVER,RCLNG INSIDE,L - Gray |
| 58 | 85743-51K20-000 | COVER,RR RISER INSIDE,L | COVER,RR RISER INSIDE,L |
| 27 | 85803-51K00-000 | FRAME ASSY,FR BACK,L | FRAME ASSY,FR BACK,L |
| 15 | 85840-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 15 | 85840-63J11-P4Z | GUIDE COMP,HEADRESTRAINT | GUIDE COMP,HEADRESTRAINT |
| 15 | 85840-63J12-P4Z | Guide Comp,headrestraint | Guide Comp,headrestraint |
| 49 | 85850-51K00-S1S | Module assy, side air bag lh - Gray | Module assy, side air bag lh - Gray |
| 49 | 85850-51K01-S1S | MODULE ASSY,SIDE A/B,L | MODULE ASSY,SIDE A/B,L |
| 43 | 85860-62JA0-000 | PAD,FR BACK,L | PAD,FR BACK,L |
| 52 | 85880-51KA0-EVW | Trim, fr back lh - Gray | Trim, fr back lh - Gray |
| 52 | 85880-51KA0-EVZ | Trim, fr back lh - Blue | Trim, fr back lh - Blue |
| 52 | 85880-51KA0-FAN | Trim, fr back lh - Turquoise | Trim, fr back lh - Turquoise |
| 52 | 85880-51KA0-FAR | Trim, fr back lh - Black | Trim, fr back lh - Black |
| 17 | 86401-62J00-V2M | HEADRESTRAINT ASSY - Charcoal | HEADRESTRAINT ASSY - Charcoal |
