Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 33 of 3,419 shared
A5B412
Suzuki SPLASH — 33 of 3,419 shared

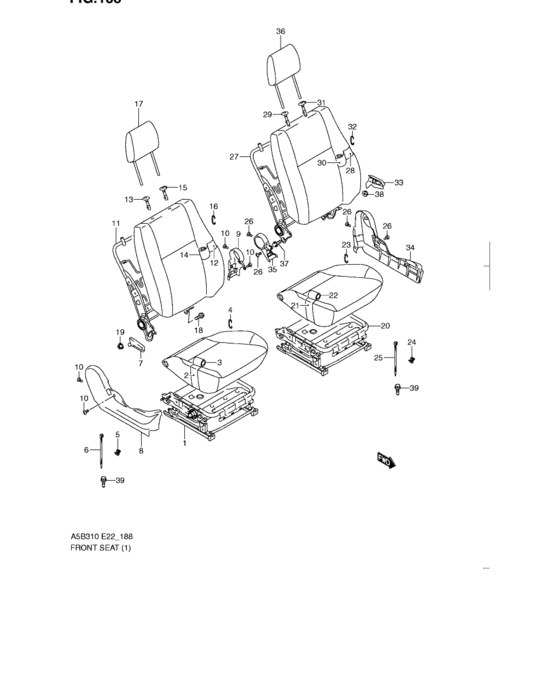

Front seat (GA:LHD) 33 / 33
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 85103-51K01-000 | Frame assy, fr cush rh | Frame assy, fr cush rh |
| 2 | 85160-51K00-000 | PAD,FR CUSHION,R | PAD,FR CUSHION,R |
| 3 | 85180-51K00-EVW | Trim, fr cush rh - Gray | Trim, fr cush rh - Gray |
| 4 | 09387-19001-000 | RING | RING |
| 5 | 85136-51K00-000 | CLAMP,NO.3 | CLAMP,NO.3 |
| 6 | 85137-51K00-000 | CLAMP | CLAMP |
| 7 | 85211-65J00-S1S | Knob,rclng,r | Knob,rclng,r |
| 7 | 85211-65JA0-S1S | KNOB,RCLNG,R | KNOB,RCLNG,R |
| 8 | 85221-51K00-S1S | COVER,RCLNG OUTSIDE,R - Gray | COVER,RCLNG OUTSIDE,R - Gray |
| 9 | 85241-51K00-S1S | COVER,RCLNG INSIDE,R - Gray | COVER,RCLNG INSIDE,R - Gray |
| 10 | 85295-51K00-000 | SCREW,RECLINING COVER | SCREW,RECLINING COVER |
| 11 | 85303-51K00-000 | FRAME ASSY,FR BACK,R | FRAME ASSY,FR BACK,R |
| 12 | 85360-51K00-000 | Pad, fr back rh | Pad, fr back rh |
| 13 | 85341-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 13 | 85341-63J11-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 13 | 85341-63J12-P4Z | Guide,headrestraint | Guide,headrestraint |
| 14 | 85380-51K00-EVW | Trim, fr back lh - Gray | Trim, fr back lh - Gray |
| 15 | 85840-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 15 | 85840-63J11-P4Z | GUIDE COMP,HEADRESTRAINT | GUIDE COMP,HEADRESTRAINT |
| 15 | 85840-63J12-P4Z | Guide Comp,headrestraint | Guide Comp,headrestraint |
| 17 | 86401-62J00-V2M | HEADRESTRAINT ASSY - Charcoal | HEADRESTRAINT ASSY - Charcoal |
| 18 | 01550-1016A-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 19 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 20 | 85603-51K01-000 | Frame assy, fr cush lh | Frame assy, fr cush lh |
| 21 | 85660-51K00-000 | PAD,FR CUSHION,L | PAD,FR CUSHION,L |
| 22 | 85680-51K00-EVW | Trim, fr cush lh - Gray | Trim, fr cush lh - Gray |
| 27 | 85803-51K00-000 | FRAME ASSY,FR BACK,L | FRAME ASSY,FR BACK,L |
| 28 | 85860-51K00-000 | Pad, fr back lh | Pad, fr back lh |
| 33 | 85711-65J00-S1S | Knob,rclng,l | Knob,rclng,l |
| 33 | 85711-65JA0-S1S | KNOB,RCLNG,L | KNOB,RCLNG,L |
| 34 | 85721-51K00-S1S | COVER,RCLNG OUTSIDE,L - Gray | COVER,RCLNG OUTSIDE,L - Gray |
| 35 | 85741-51K00-S1S | COVER,RCLNG INSIDE,L - Gray | COVER,RCLNG INSIDE,L - Gray |
| 39 | 09119-08097-000 | BOLT(8X25) | BOLT(8X25) |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 18 | 01550-1016A-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 50 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 39 | 09119-08097-000 | BOLT(8X25) | BOLT(8X25) |
| 4 | 09387-19001-000 | RING | RING |
| 1 | 85103-51K01-000 | Frame assy, fr cush rh | Frame assy, fr cush rh |
| 5 | 85136-51K00-000 | CLAMP,NO.3 | CLAMP,NO.3 |
| 6 | 85137-51K00-000 | CLAMP | CLAMP |
| 2 | 85160-51K00-000 | PAD,FR CUSHION,R | PAD,FR CUSHION,R |
| 3 | 85180-51K00-EVW | Trim, fr cush rh - Gray | Trim, fr cush rh - Gray |
| 7 | 85211-65J00-S1S | Knob,rclng,r | Knob,rclng,r |
| 7 | 85211-65JA0-S1S | KNOB,RCLNG,R | KNOB,RCLNG,R |
| 8 | 85221-51K00-S1S | COVER,RCLNG OUTSIDE,R - Gray | COVER,RCLNG OUTSIDE,R - Gray |
| 9 | 85241-51K00-S1S | COVER,RCLNG INSIDE,R - Gray | COVER,RCLNG INSIDE,R - Gray |
| 10 | 85295-51K00-000 | SCREW,RECLINING COVER | SCREW,RECLINING COVER |
| 11 | 85303-51K00-000 | FRAME ASSY,FR BACK,R | FRAME ASSY,FR BACK,R |
| 13 | 85341-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 13 | 85341-63J11-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 13 | 85341-63J12-P4Z | Guide,headrestraint | Guide,headrestraint |
| 12 | 85360-51K00-000 | Pad, fr back rh | Pad, fr back rh |
| 14 | 85380-51K00-EVW | Trim, fr back lh - Gray | Trim, fr back lh - Gray |
| 20 | 85603-51K01-000 | Frame assy, fr cush lh | Frame assy, fr cush lh |
| 21 | 85660-51K00-000 | PAD,FR CUSHION,L | PAD,FR CUSHION,L |
| 22 | 85680-51K00-EVW | Trim, fr cush lh - Gray | Trim, fr cush lh - Gray |
| 33 | 85711-65J00-S1S | Knob,rclng,l | Knob,rclng,l |
| 33 | 85711-65JA0-S1S | KNOB,RCLNG,L | KNOB,RCLNG,L |
| 34 | 85721-51K00-S1S | COVER,RCLNG OUTSIDE,L - Gray | COVER,RCLNG OUTSIDE,L - Gray |
| 35 | 85741-51K00-S1S | COVER,RCLNG INSIDE,L - Gray | COVER,RCLNG INSIDE,L - Gray |
| 27 | 85803-51K00-000 | FRAME ASSY,FR BACK,L | FRAME ASSY,FR BACK,L |
| 15 | 85840-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 15 | 85840-63J11-P4Z | GUIDE COMP,HEADRESTRAINT | GUIDE COMP,HEADRESTRAINT |
| 15 | 85840-63J12-P4Z | Guide Comp,headrestraint | Guide Comp,headrestraint |
| 28 | 85860-51K00-000 | Pad, fr back lh | Pad, fr back lh |
| 17 | 86401-62J00-V2M | HEADRESTRAINT ASSY - Charcoal | HEADRESTRAINT ASSY - Charcoal |
