Search › Compare › A5B310 × A5B412

A5B310 × A5B412

Shared 37 / Total 3,419 · Jaccard 100%
A5B310 Suzuki SPLASH — 37 of 3,419 shared
A5B412 Suzuki SPLASH — 37 of 3,419 shared

← Back to categories

37 items

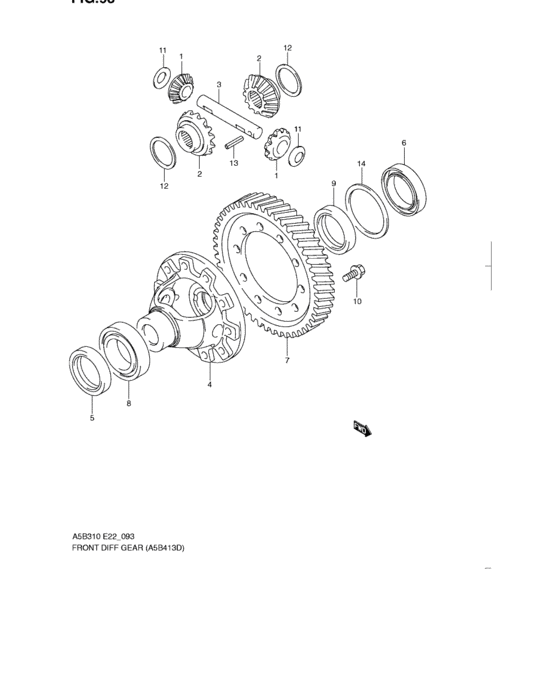

Front diff gear (MT:A5B413D) 37 / 37
A5B310 Front diff gear (MT:A5B413D)
A5B412 Front diff gear (MT:A5B413D)
# OEM A5B310 A5B412
1 27331-M55K0-000 Pinion, differential Pinion, differential
2 27341-M55K0-000 Gear, differential side Gear, differential side
3 27351-70C01-000 SHAFT,DIFF SIDE PINION SHAFT,DIFF SIDE PINION
4 27411-M55K0-000 Case, front diff Case, front diff
5 27431-79JA0-000 SEAL,DIFF SIDE OIL,R SEAL,DIFF SIDE OIL,R
6 27432-70C00-000 SEAL,DIFF SIDE OIL SEAL,DIFF SIDE OIL
7 27511-M72KB-000 Gear, final Gear, final
8 27521-79JA0-000 BEARING ASSY,DIFF SIDE BEARING ASSY,DIFF SIDE
9 27524-79JA0-000 BEARING ASSY,DIFF SIDE,L BEARING ASSY,DIFF SIDE,L
10 09103-10189-000 BOLT(10X23) - Bolt, starter one way clutch BOLT(10X23) - Bolt, starter one way clutch
11 09164-17006-000 WASHER(17.3X32X1) WASHER(17.3X32X1)
12 09181-38163-000 SHIM(38X50X0.85) - Shim (t:0.85) SHIM(38X50X0.85) - Shim (t:0.85)
12 09181-38164-000 SHIM(38X50X0.9) - Shim (t:0.90) SHIM(38X50X0.9) - Shim (t:0.90)
12 09181-38165-000 SHIM(38X50X0.95) - Shim (t:0.95) SHIM(38X50X0.95) - Shim (t:0.95)
12 09181-38166-000 SHIM(38X50X1) - Shim (t:1.00) SHIM(38X50X1) - Shim (t:1.00)
12 09181-38169-000 SHIM(38X50X1.05) - Shim (t:1.05) SHIM(38X50X1.05) - Shim (t:1.05)
12 09181-38172-000 SHIM(38X50X1.1) - Shim (t:1.10) SHIM(38X50X1.1) - Shim (t:1.10)
12 09181-38174-000 SHIM(38X50X1.15) - Shim (t:1.15) SHIM(38X50X1.15) - Shim (t:1.15)
13 09205-05007-000 PIN,SPRING(5X36) PIN,SPRING(5X36)
14 29541-79JA0-100 SHIM,DIFF SIDE BRG T:1.00 SHIM,DIFF SIDE BRG T:1.00
14 29541-79JA0-104 SHIM,DIFF SIDE BRG T:1.04 SHIM,DIFF SIDE BRG T:1.04
14 29541-79JA0-108 SHIM,DIFF SIDE BRG T:1.08 SHIM,DIFF SIDE BRG T:1.08
14 29541-79JA0-112 SHIM,DIFF SIDE BRG T:1.12 SHIM,DIFF SIDE BRG T:1.12
14 29541-79JA0-116 SHIM,DIFF SIDE BRG T:1.16 SHIM,DIFF SIDE BRG T:1.16
14 29541-79JA0-120 SHIM,DIFF SIDE BRG T:1.20 SHIM,DIFF SIDE BRG T:1.20
14 29541-79JA0-124 SHIM,DIFF SIDE BRG T:1.24 SHIM,DIFF SIDE BRG T:1.24
14 29541-79JA0-128 SHIM,DIFF SIDE BRG T:1.28 SHIM,DIFF SIDE BRG T:1.28
14 29541-79JA0-132 SHIM,DIFF SIDE BRG T:1.32 SHIM,DIFF SIDE BRG T:1.32
14 29541-79JA0-136 SHIM,DIFF SIDE BRG T:1.36 SHIM,DIFF SIDE BRG T:1.36
14 29541-79JA0-140 SHIM,DIFF SIDE BRG T:1.40 SHIM,DIFF SIDE BRG T:1.40
14 29541-79JA0-144 SHIM,DIFF SIDE BRG T:1.44 SHIM,DIFF SIDE BRG T:1.44
14 29541-79JA0-148 SHIM,DIFF SIDE BRG T:1.48 SHIM,DIFF SIDE BRG T:1.48
14 29541-79JA0-152 SHIM,DIFF SIDE BRG T:1.52 SHIM,DIFF SIDE BRG T:1.52
14 29541-79JA0-156 SHIM,DIFF SIDE BRG T:1.56 SHIM,DIFF SIDE BRG T:1.56
14 29541-79JA0-160 SHIM,DIFF SIDE BRG T:1.60 SHIM,DIFF SIDE BRG T:1.60
14 29541-79JA0-164 SHIM,DIFF SIDE BRG T:1.64 SHIM,DIFF SIDE BRG T:1.64
14 29541-79JA0-168 SHIM,DIFF SIDE BRG T:1.68 SHIM,DIFF SIDE BRG T:1.68
