Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 44 of 3,419 shared
A5B412
Suzuki SPLASH — 44 of 3,419 shared

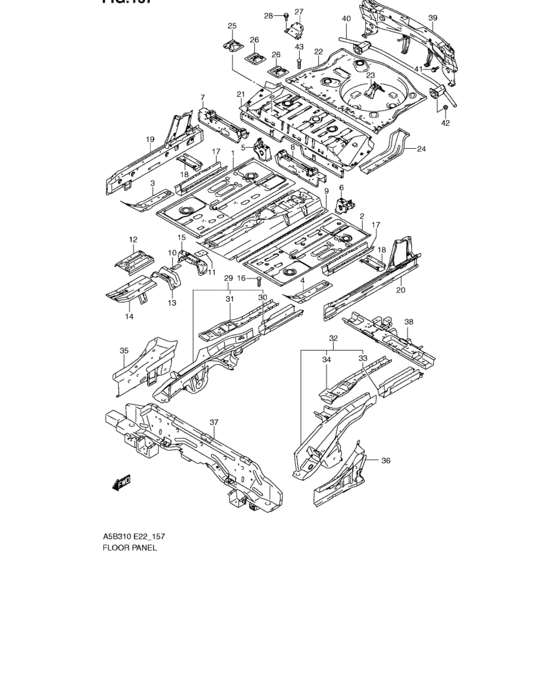

Floor panel (FLOOR PANEL) 44 / 44
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 61111-51K00-000 | PAN,MAIN FLOOR,R | PAN,MAIN FLOOR,R |
| 2 | 61161-51K00-000 | PAN,MAIN FLOOR,L | PAN,MAIN FLOOR,L |
| 3 | 61112-51K00-000 | REINFORCEMENT,MAIN FL,R | REINFORCEMENT,MAIN FL,R |
| 4 | 61162-51K00-000 | REINFORCEMENT,MAIN FL,L | REINFORCEMENT,MAIN FL,L |
| 5 | 61120-51K00-000 | BRACKET,FR SEAT RR OUT,R | BRACKET,FR SEAT RR OUT,R |
| 6 | 61170-51K00-000 | BRACKET,FR SEAT RR OUT,L | BRACKET,FR SEAT RR OUT,L |
| 7 | 61130-51K00-000 | Crossmember, flr pan upr rh | Crossmember, flr pan upr rh |
| 8 | 61180-51K00-000 | Crossmember, flr pan upr lh | Crossmember, flr pan upr lh |
| 9 | 61211-51K00-000 | TUNNEL,MAIN FLOOR | TUNNEL,MAIN FLOOR |
| 9 | 61211-51K10-000 | Tunnel, main floor | Tunnel, main floor |
| 10 | 61212-63J00-000 | REINFORCEMENT,PARKING LEVER | REINFORCEMENT,PARKING LEVER |
| 11 | 61213-63J00-000 | REINFORCEMENT,PARKING CABLE | REINFORCEMENT,PARKING CABLE |
| 12 | 61216-51K00-000 | BRACKET,SHIFT LEVER | BRACKET,SHIFT LEVER |
| 13 | 61221-72K00-000 | BRACE,MAIN FLOOR TUNNEL | BRACE,MAIN FLOOR TUNNEL |
| 14 | 61250-62J00-000 | REINFORCEMENT,MAIN FL TUNNEL | REINFORCEMENT,MAIN FL TUNNEL |
| 15 | 61230-51K00-000 | BRACKET,FR SEAT RR INSIDE | BRACKET,FR SEAT RR INSIDE |
| 16 | 09119-05018-000 | BOLT(8X35) | BOLT(8X35) |
| 17 | 61241-51K00-000 | MEMBER,FL SIDE RR | MEMBER,FL SIDE RR |
| 18 | 61242-63J00-000 | CROSSMEMBER,FL PAN LOWER | CROSSMEMBER,FL PAN LOWER |
| 18 | 61242-63J10-000 | CROSSMEMBER,FLR PAN LWR | CROSSMEMBER,FLR PAN LWR |
| 19 | 61310-51K00-000 | PANEL,SIDE SILL INNER,R | PANEL,SIDE SILL INNER,R |
| 20 | 61320-51K00-000 | PANEL,SIDE SILL INNER,L | PANEL,SIDE SILL INNER,L |
| 21 | 61511-62J00-000 | PANEL,REAR FLOOR FR | PANEL,REAR FLOOR FR |
| 22 | 61512-51K00-000 | PANEL,REAR FLOOR RR | PANEL,REAR FLOOR RR |
| 23 | 61513-63J00-000 | BRACKET,SPARE TIRE | BRACKET,SPARE TIRE |
| 24 | 61550-63J00-000 | HOOK,TOWING RR | HOOK,TOWING RR |
| 25 | 61514-51K00-000 | BRACKET,RR SEAT,R | BRACKET,RR SEAT,R |
| 26 | 61515-51K00-000 | BRACKET,RR SEAT,L | BRACKET,RR SEAT,L |
| 27 | 61541-51K00-000 | BRACKET,RR SEAT RR CTR | BRACKET,RR SEAT RR CTR |
| 28 | 01551-1020A-000 | Bolt | Bolt |
| 29 | 62100-51K00-000 | MEMBER,RR FL SIDE,R | MEMBER,RR FL SIDE,R |
| 30 | 62112-51K00-000 | MEMBER,RR FL SIDE RR,R | MEMBER,RR FL SIDE RR,R |
| 31 | 62127-51K00-000 | REINFORCEMENT,RR FL SIDE RR,R | REINFORCEMENT,RR FL SIDE RR,R |
| 32 | 62300-51K00-000 | MEMBER,RR FL SIDE,L | MEMBER,RR FL SIDE,L |
| 33 | 62312-51K00-000 | MEMBER,RR FL SIDE RR,L | MEMBER,RR FL SIDE RR,L |
| 34 | 62327-51K00-000 | REINF,RR FL SIDE RR,L | REINF,RR FL SIDE RR,L |
| 35 | 62210-51K00-000 | COMPARTMENT,RR FLR SIDE,R | COMPARTMENT,RR FLR SIDE,R |
| 36 | 62410-51K00-000 | COMPARTMENT,RR FLR SIDE,L | COMPARTMENT,RR FLR SIDE,L |
| 37 | 62600-62J01-000 | CROSSMEMBER,RR FL FR | CROSSMEMBER,RR FL FR |
| 38 | 62700-51K10-000 | CROSSMEMBER,RR FL CTR | CROSSMEMBER,RR FL CTR |
| 39 | 65500-51K00-000 | PANEL,BACK | PANEL,BACK |
| 40 | 65560-51K00-000 | MEMBER,RR BUMPER | MEMBER,RR BUMPER |
| 41 | 01550-0612A-000 | Bolt | Bolt |
| 42 | 08316-1006A-000 | NUT | NUT |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 7 | 01550-0612A-000 | Bolt | Bolt |
| 28 | 01551-1020A-000 | Bolt | Bolt |
| 31 | 08316-1006A-000 | NUT | NUT |
| 16 | 09119-05018-000 | BOLT(8X35) | BOLT(8X35) |
| 1 | 61111-51K00-000 | PAN,MAIN FLOOR,R | PAN,MAIN FLOOR,R |
| 3 | 61112-51K00-000 | REINFORCEMENT,MAIN FL,R | REINFORCEMENT,MAIN FL,R |
| 5 | 61120-51K00-000 | BRACKET,FR SEAT RR OUT,R | BRACKET,FR SEAT RR OUT,R |
| 7 | 61130-51K00-000 | Crossmember, flr pan upr rh | Crossmember, flr pan upr rh |
| 2 | 61161-51K00-000 | PAN,MAIN FLOOR,L | PAN,MAIN FLOOR,L |
| 4 | 61162-51K00-000 | REINFORCEMENT,MAIN FL,L | REINFORCEMENT,MAIN FL,L |
| 6 | 61170-51K00-000 | BRACKET,FR SEAT RR OUT,L | BRACKET,FR SEAT RR OUT,L |
| 8 | 61180-51K00-000 | Crossmember, flr pan upr lh | Crossmember, flr pan upr lh |
| 9 | 61211-51K00-000 | TUNNEL,MAIN FLOOR | TUNNEL,MAIN FLOOR |
| 9 | 61211-51K10-000 | Tunnel, main floor | Tunnel, main floor |
| 10 | 61212-63J00-000 | REINFORCEMENT,PARKING LEVER | REINFORCEMENT,PARKING LEVER |
| 11 | 61213-63J00-000 | REINFORCEMENT,PARKING CABLE | REINFORCEMENT,PARKING CABLE |
| 12 | 61216-51K00-000 | BRACKET,SHIFT LEVER | BRACKET,SHIFT LEVER |
| 13 | 61221-72K00-000 | BRACE,MAIN FLOOR TUNNEL | BRACE,MAIN FLOOR TUNNEL |
| 15 | 61230-51K00-000 | BRACKET,FR SEAT RR INSIDE | BRACKET,FR SEAT RR INSIDE |
| 17 | 61241-51K00-000 | MEMBER,FL SIDE RR | MEMBER,FL SIDE RR |
| 18 | 61242-63J00-000 | CROSSMEMBER,FL PAN LOWER | CROSSMEMBER,FL PAN LOWER |
| 18 | 61242-63J10-000 | CROSSMEMBER,FLR PAN LWR | CROSSMEMBER,FLR PAN LWR |
| 14 | 61250-62J00-000 | REINFORCEMENT,MAIN FL TUNNEL | REINFORCEMENT,MAIN FL TUNNEL |
| 19 | 61310-51K00-000 | PANEL,SIDE SILL INNER,R | PANEL,SIDE SILL INNER,R |
| 20 | 61320-51K00-000 | PANEL,SIDE SILL INNER,L | PANEL,SIDE SILL INNER,L |
| 21 | 61511-62J00-000 | PANEL,REAR FLOOR FR | PANEL,REAR FLOOR FR |
| 22 | 61512-51K00-000 | PANEL,REAR FLOOR RR | PANEL,REAR FLOOR RR |
| 23 | 61513-63J00-000 | BRACKET,SPARE TIRE | BRACKET,SPARE TIRE |
| 25 | 61514-51K00-000 | BRACKET,RR SEAT,R | BRACKET,RR SEAT,R |
| 26 | 61515-51K00-000 | BRACKET,RR SEAT,L | BRACKET,RR SEAT,L |
| 27 | 61541-51K00-000 | BRACKET,RR SEAT RR CTR | BRACKET,RR SEAT RR CTR |
| 24 | 61550-63J00-000 | HOOK,TOWING RR | HOOK,TOWING RR |
| 29 | 62100-51K00-000 | MEMBER,RR FL SIDE,R | MEMBER,RR FL SIDE,R |
| 30 | 62112-51K00-000 | MEMBER,RR FL SIDE RR,R | MEMBER,RR FL SIDE RR,R |
| 31 | 62127-51K00-000 | REINFORCEMENT,RR FL SIDE RR,R | REINFORCEMENT,RR FL SIDE RR,R |
| 35 | 62210-51K00-000 | COMPARTMENT,RR FLR SIDE,R | COMPARTMENT,RR FLR SIDE,R |
| 32 | 62300-51K00-000 | MEMBER,RR FL SIDE,L | MEMBER,RR FL SIDE,L |
| 33 | 62312-51K00-000 | MEMBER,RR FL SIDE RR,L | MEMBER,RR FL SIDE RR,L |
| 34 | 62327-51K00-000 | REINF,RR FL SIDE RR,L | REINF,RR FL SIDE RR,L |
| 36 | 62410-51K00-000 | COMPARTMENT,RR FLR SIDE,L | COMPARTMENT,RR FLR SIDE,L |
| 37 | 62600-62J01-000 | CROSSMEMBER,RR FL FR | CROSSMEMBER,RR FL FR |
| 38 | 62700-51K10-000 | CROSSMEMBER,RR FL CTR | CROSSMEMBER,RR FL CTR |
| 39 | 65500-51K00-000 | PANEL,BACK | PANEL,BACK |
| 40 | 65560-51K00-000 | MEMBER,RR BUMPER | MEMBER,RR BUMPER |
