Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 20 of 3,419 shared
A5B412
Suzuki SPLASH — 20 of 3,419 shared

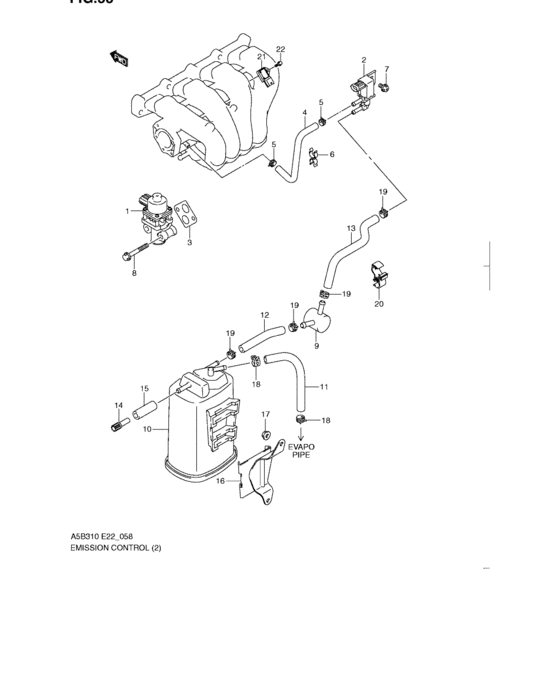

Emission control (A5B310,A5B412:RHD) 20 / 20
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 18111-73K00-000 | VALVE,EGR | VALVE,EGR |
| 2 | 18114-73K00-000 | VALVE ASSY,DUTY FOR PURGE | VALVE ASSY,DUTY FOR PURGE |
| 3 | 18529-77E01-000 | GASKET,EGR VALVE | GASKET,EGR VALVE |
| 4 | 18564-73KA0-000 | Hose, purge - Vsv to inmf | Hose, purge - Vsv to inmf |
| 5 | 09401-11419-000 | CLIP | CLIP |
| 6 | 09408-00050-000 | CLAMP | CLAMP |
| 7 | 01550-0616A-000 | Bolt | Bolt |
| 8 | 01550-0855A-000 | Bolt - Bolt, gear holder | Bolt - Bolt, gear holder |
| 9 | 18145-83E00-000 | CHAMBER,PURGE VALVE | CHAMBER,PURGE VALVE |
| 10 | 18560-83E00-000 | Canister | Canister |
| 11 | 18561-62J00-000 | Hose, cnstr inlet | Hose, cnstr inlet |
| 12 | 18562-73KA0-000 | Hose, canister purge no.2 | Hose, canister purge no.2 |
| 13 | 18563-73KA0-000 | Hose, purge - Chamber to vsv | Hose, purge - Chamber to vsv |
| 14 | 18566-83E00-000 | Filter | Filter |
| 15 | 18567-62J01-000 | Hose, purge air suction | Hose, purge air suction |
| 16 | 18570-62J00-000 | Bracket | Bracket |
| 17 | 09159-06096-000 | NUT | NUT |
| 20 | 09408-00251-000 | CLAMP | CLAMP |
| 21 | 18590-73KA0-000 | SENSOR,MAP | SENSOR,MAP |
| 22 | 01550-0620A-000 | Bolt | Bolt |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 20 | 01550-0616A-000 | Bolt | Bolt |
| 29 | 01550-0620A-000 | Bolt | Bolt |
| 8 | 01550-0855A-000 | Bolt - Bolt, gear holder | Bolt - Bolt, gear holder |
| 17 | 09159-06096-000 | NUT | NUT |
| 5 | 09401-11419-000 | CLIP | CLIP |
| 6 | 09408-00050-000 | CLAMP | CLAMP |
| 20 | 09408-00251-000 | CLAMP | CLAMP |
| 1 | 18111-73K00-000 | VALVE,EGR | VALVE,EGR |
| 2 | 18114-73K00-000 | VALVE ASSY,DUTY FOR PURGE | VALVE ASSY,DUTY FOR PURGE |
| 9 | 18145-83E00-000 | CHAMBER,PURGE VALVE | CHAMBER,PURGE VALVE |
| 3 | 18529-77E01-000 | GASKET,EGR VALVE | GASKET,EGR VALVE |
| 11 | 18560-83E00-000 | Canister | Canister |
| 11 | 18561-62J00-000 | Hose, cnstr inlet | Hose, cnstr inlet |
| 12 | 18562-73KA0-000 | Hose, canister purge no.2 | Hose, canister purge no.2 |
| 13 | 18563-73KA0-000 | Hose, purge - Chamber to vsv | Hose, purge - Chamber to vsv |
| 4 | 18564-73KA0-000 | Hose, purge - Vsv to inmf | Hose, purge - Vsv to inmf |
| 16 | 18566-83E00-000 | Filter | Filter |
| 17 | 18567-62J01-000 | Hose, purge air suction | Hose, purge air suction |
| 16 | 18570-62J00-000 | Bracket | Bracket |
| 23 | 18590-73KA0-000 | SENSOR,MAP | SENSOR,MAP |
