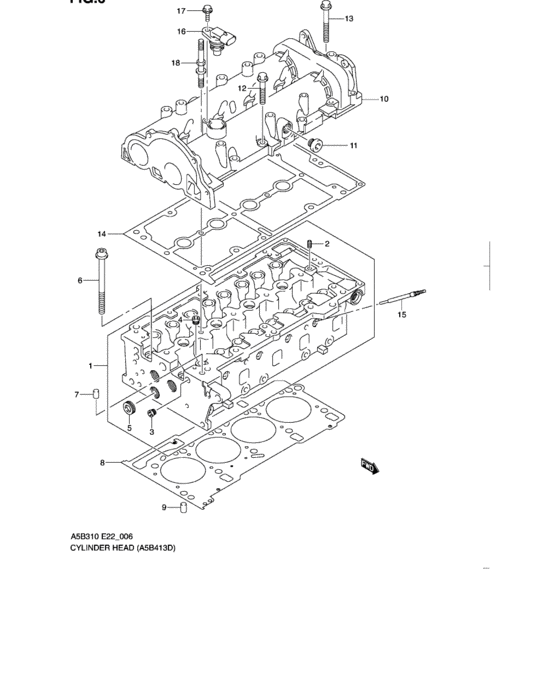

Cylinder head (A5B413D) 17 / 17
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 11100-M86J0-000 | Head assy, cylinder | Head assy, cylinder |
| 2 | 11281-M86J0-000 | Plug - M8 | Plug - M8 |
| 3 | 11282-M86J0-000 | Plug - M10 | Plug - M10 |
| 4 | 11283-M86J0-000 | Plug - M12 | Plug - M12 |
| 5 | 11284-N86J0-000 | Plug - M20 | Plug - M20 |
| 6 | 11117-N86J0-000 | Bolt, cylinder head - 10x119 | Bolt, cylinder head - 10x119 |
| 7 | 11129-N86J0-000 | Pin, camshaft hsg - M8 | Pin, camshaft hsg - M8 |
| 9 | 11288-M86J0-000 | Pin, cyl head to block | Pin, cyl head to block |
| 10 | 11171-M86J0-000 | Case, camshaft hsg | Case, camshaft hsg |
| 11 | 11297-M86J0-000 | Plug, cmshft hsg timing - M16 | Plug, cmshft hsg timing - M16 |
| 12 | 11178-N86J0-000 | Bolt, camshaft hsg short | Bolt, camshaft hsg short |
| 13 | 11179-N86J0-000 | Bolt, camshaft hsg long | Bolt, camshaft hsg long |
| 14 | 11189-N86J0-000 | Gasket, camshaft hsg | Gasket, camshaft hsg |
| 15 | 18550-M86J0-000 | Plug, glow | Plug, glow |
| 16 | 33220-N86J0-000 | Sensor assy, ckp | Sensor assy, ckp |
| 17 | 15756-N86J0-000 | Screw, cmp sensor | Screw, cmp sensor |
| 18 | 15716-N86J0-000 | Stud bolt - M8 | Stud bolt - M8 |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 11100-M86J0-000 | Head assy, cylinder | Head assy, cylinder |
| 6 | 11117-N86J0-000 | Bolt, cylinder head - 10x119 | Bolt, cylinder head - 10x119 |
| 7 | 11129-N86J0-000 | Pin, camshaft hsg - M8 | Pin, camshaft hsg - M8 |
| 10 | 11171-M86J0-000 | Case, camshaft hsg | Case, camshaft hsg |
| 12 | 11178-N86J0-000 | Bolt, camshaft hsg short | Bolt, camshaft hsg short |
| 13 | 11179-N86J0-000 | Bolt, camshaft hsg long | Bolt, camshaft hsg long |
| 14 | 11189-N86J0-000 | Gasket, camshaft hsg | Gasket, camshaft hsg |
| 2 | 11281-M86J0-000 | Plug - M8 | Plug - M8 |
| 3 | 11282-M86J0-000 | Plug - M10 | Plug - M10 |
| 4 | 11283-M86J0-000 | Plug - M12 | Plug - M12 |
| 5 | 11284-N86J0-000 | Plug - M20 | Plug - M20 |
| 9 | 11288-M86J0-000 | Pin, cyl head to block | Pin, cyl head to block |
| 11 | 11297-M86J0-000 | Plug, cmshft hsg timing - M16 | Plug, cmshft hsg timing - M16 |
| 18 | 15716-N86J0-000 | Stud bolt - M8 | Stud bolt - M8 |
| 17 | 15756-N86J0-000 | Screw, cmp sensor | Screw, cmp sensor |
| 15 | 18550-M86J0-000 | Plug, glow | Plug, glow |
| 16 | 33220-N86J0-000 | Sensor assy, ckp | Sensor assy, ckp |
