Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 23 of 3,419 shared
A5B412
Suzuki SPLASH — 23 of 3,419 shared

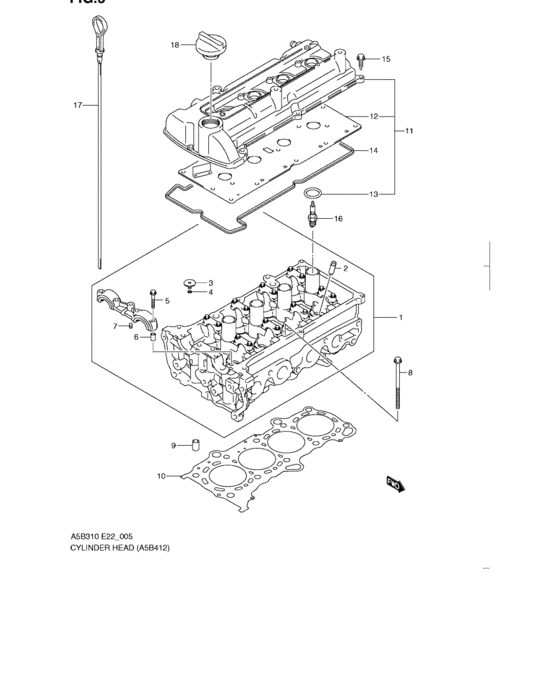

Cylinder head (A5B412) 23 / 23
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 11100-73K00-000 | HEAD ASSY,CYLINDER | HEAD ASSY,CYLINDER |
| 1 | 11100-73KG0-000 | HEAD ASSY,CYLINDER | HEAD ASSY,CYLINDER |
| 2 | 11115-77G00-001 | GUIDE,VALVE | GUIDE,VALVE |
| 3 | 09248-18011-000 | PLUG(18X8) - Plug, oil gallery | PLUG(18X8) - Plug, oil gallery |
| 4 | 11216-77E00-000 | GASKET,M18 PLUG | GASKET,M18 PLUG |
| 5 | 11128-69G01-000 | BOLT,CAMSHAFT HOUSING 6X39 | BOLT,CAMSHAFT HOUSING 6X39 |
| 6 | 09206-08001-000 | PIN(8X11) | PIN(8X11) |
| 7 | 11112-53A00-000 | PLUG,OIL VENTURI | PLUG,OIL VENTURI |
| 8 | 11117-69J00-000 | BOLT,CYLINDER HEAD | BOLT,CYLINDER HEAD |
| 9 | 09206-13020-000 | PIN(10.4X13X18) | PIN(10.4X13X18) |
| 10 | 11141-73K01-000 | GASKET,CYL HEAD | GASKET,CYL HEAD |
| 11 | 11170-73K01-000 | Cover,cylinder head | Cover,cylinder head |
| 12 | 11172-73K00-000 | PLATE,BREATHER | PLATE,BREATHER |
| 13 | 11179-79F01-000 | O-RING | O-RING |
| 14 | 11189-73K00-000 | GASKET,CYL HEAD COVER | GASKET,CYL HEAD COVER |
| 15 | 01550-0625A-000 | Bolt | Bolt |
| 16 | 09482-00602-000 | PLUG,SPARK(DENSO ZXU20PR11) | PLUG,SPARK(DENSO ZXU20PR11) |
| 16 | 09482-00603-000 | PLUG,SPARK(NGK IKR6G11) | PLUG,SPARK(NGK IKR6G11) |
| 17 | 16910-51K00-000 | Gauge comp,oil level | Gauge comp,oil level |
| 17 | 16910-51K01-000 | GAUGE COMP,OIL LEVEL | GAUGE COMP,OIL LEVEL |
| 18 | 16920-83G10-000 | Cap comp,oil filler | Cap comp,oil filler |
| 18 | 16920-83G00-000 | Cap,oil filler | Cap,oil filler |
| 18 | 16920-83G01-000 | CAP OIL FILLER | CAP OIL FILLER |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 15 | 01550-0625A-000 | Bolt | Bolt |
| 6 | 09206-08001-000 | PIN(8X11) | PIN(8X11) |
| 10 | 09206-13020-000 | PIN(10.4X13X18) | PIN(10.4X13X18) |
| 5 | 09248-18011-000 | PLUG(18X8) - Plug, oil gallery | PLUG(18X8) - Plug, oil gallery |
| 16 | 09482-00602-000 | PLUG,SPARK(DENSO ZXU20PR11) | PLUG,SPARK(DENSO ZXU20PR11) |
| 16 | 09482-00603-000 | PLUG,SPARK(NGK IKR6G11) | PLUG,SPARK(NGK IKR6G11) |
| 1 | 11100-73K00-000 | HEAD ASSY,CYLINDER | HEAD ASSY,CYLINDER |
| 1 | 11100-73KG0-000 | HEAD ASSY,CYLINDER | HEAD ASSY,CYLINDER |
| 7 | 11112-53A00-000 | PLUG,OIL VENTURI | PLUG,OIL VENTURI |
| 2 | 11115-77G00-001 | GUIDE,VALVE | GUIDE,VALVE |
| 8 | 11117-69J00-000 | BOLT,CYLINDER HEAD | BOLT,CYLINDER HEAD |
| 5 | 11128-69G01-000 | BOLT,CAMSHAFT HOUSING 6X39 | BOLT,CAMSHAFT HOUSING 6X39 |
| 10 | 11141-73K01-000 | GASKET,CYL HEAD | GASKET,CYL HEAD |
| 11 | 11170-73K01-000 | Cover,cylinder head | Cover,cylinder head |
| 12 | 11172-73K00-000 | PLATE,BREATHER | PLATE,BREATHER |
| 13 | 11179-79F01-000 | O-RING | O-RING |
| 14 | 11189-73K00-000 | GASKET,CYL HEAD COVER | GASKET,CYL HEAD COVER |
| 4 | 11216-77E00-000 | GASKET,M18 PLUG | GASKET,M18 PLUG |
| 17 | 16910-51K00-000 | Gauge comp,oil level | Gauge comp,oil level |
| 17 | 16910-51K01-000 | GAUGE COMP,OIL LEVEL | GAUGE COMP,OIL LEVEL |
| 18 | 16920-83G00-000 | Cap,oil filler | Cap,oil filler |
| 18 | 16920-83G01-000 | CAP OIL FILLER | CAP OIL FILLER |
| 18 | 16920-83G10-000 | Cap comp,oil filler | Cap comp,oil filler |
