Search › Compare › A5B310 × A5B412
A5B310
Suzuki SPLASH — 11 of 3,419 shared
A5B412
Suzuki SPLASH — 11 of 3,419 shared

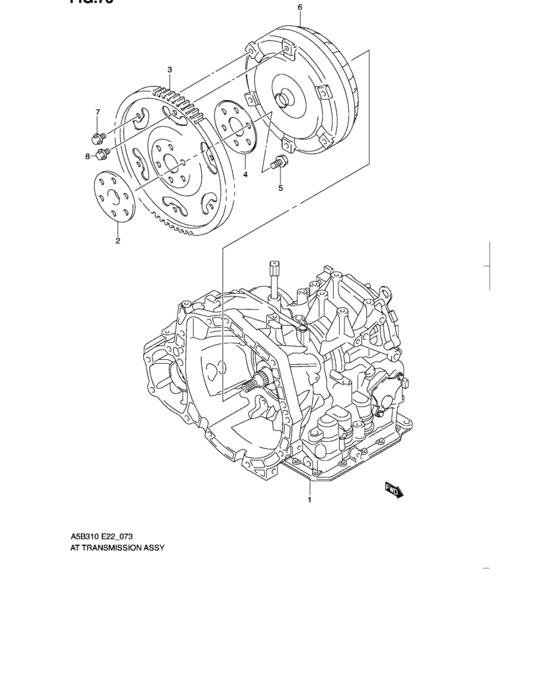

At transmission assy (AT) 11 / 11
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 1 | 20002-51K11-000 | T/M ASSY,AUTOMATIC | T/M ASSY,AUTOMATIC |
| 2 | 22611-73KR0-000 | Flange,t/c drive plate front | Flange,t/c drive plate front |
| 2 | 22611-70LR0-000 | FLANGE,T/C DRIVE PLATE FRONT | FLANGE,T/C DRIVE PLATE FRONT |
| 3 | 22620-73KR0-000 | Plate comp,t/c drive | Plate comp,t/c drive |
| 3 | 22620-73KR1-000 | PLATE,T/C DRIVE | PLATE,T/C DRIVE |
| 4 | 22631-82J10-000 | PLATE,TC DRIVE REAR | PLATE,TC DRIVE REAR |
| 5 | 09103-10305-000 | BOLT(10X18.5) | BOLT(10X18.5) |
| 5 | 09100-10275-000 | BOLT(10X18.5) | BOLT(10X18.5) |
| 6 | 22710-51K10-000 | CONVERTER,TORQUE | CONVERTER,TORQUE |
| 7 | 09103-08516-000 | BOLT(8X9.5) | BOLT(8X9.5) |
| 8 | 09103-08517-000 | BOLT(8X9.5) | BOLT(8X9.5) |
| # | OEM | A5B310 | A5B412 |
|---|---|---|---|
| 5 | 09100-10275-000 | BOLT(10X18.5) | BOLT(10X18.5) |
| 7 | 09103-08516-000 | BOLT(8X9.5) | BOLT(8X9.5) |
| 8 | 09103-08517-000 | BOLT(8X9.5) | BOLT(8X9.5) |
| 5 | 09103-10305-000 | BOLT(10X18.5) | BOLT(10X18.5) |
| 1 | 20002-51K11-000 | T/M ASSY,AUTOMATIC | T/M ASSY,AUTOMATIC |
| 2 | 22611-70LR0-000 | FLANGE,T/C DRIVE PLATE FRONT | FLANGE,T/C DRIVE PLATE FRONT |
| 2 | 22611-73KR0-000 | Flange,t/c drive plate front | Flange,t/c drive plate front |
| 3 | 22620-73KR0-000 | Plate comp,t/c drive | Plate comp,t/c drive |
| 3 | 22620-73KR1-000 | PLATE,T/C DRIVE | PLATE,T/C DRIVE |
| 4 | 22631-82J10-000 | PLATE,TC DRIVE REAR | PLATE,TC DRIVE REAR |
| 6 | 22710-51K10-000 | CONVERTER,TORQUE | CONVERTER,TORQUE |
