ZZT245

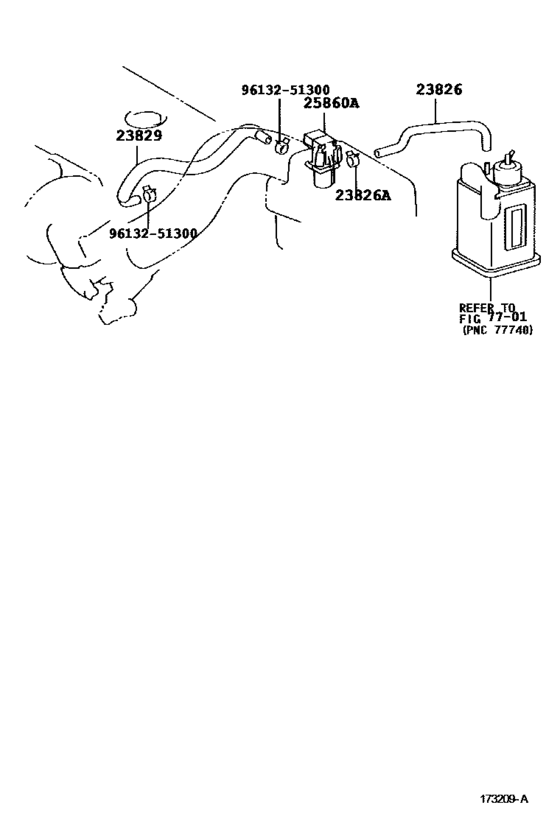

Vacuum Piping ([12.2004 - ] (0112-0412)1ZZFE ; (0412- )1ZZFE..ZZT245) 6
| # | OEM | Part name |
|---|---|---|
| 23826 | 23826-22100 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 96132-41100 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23826 | 96132-51100 | Clip (For Hose) |
| 23829 | 23829-22080 | Hose, Fuel Vapor Feed, No.3 |
| 25860 | 90910-12257 | Valve, Vacuum Switching |
| 9613251300 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| OEM | Part name | Category |
|---|---|---|
| 23826-22100 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([12.2004 - ] (0112-0412)1ZZFE ; (0412- )1ZZFE..ZZT245) |
| 23829-22080 | Hose, Fuel Vapor Feed, No.3 | Vacuum Piping ([12.2004 - ] (0112-0412)1ZZFE ; (0412- )1ZZFE..ZZT245) |
| 90910-12257 | Valve, Vacuum Switching | Vacuum Piping ([12.2004 - ] (0112-0412)1ZZFE ; (0412- )1ZZFE..ZZT245) |
| 96132-41100 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([12.2004 - ] (0112-0412)1ZZFE ; (0412- )1ZZFE..ZZT245) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([12.2004 - ] (0112-0412)1ZZFE ; (0412- )1ZZFE..ZZT245) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([12.2004 - ] (0112-0412)1ZZFE ; (0412- )1ZZFE..ZZT245) |
