ZZT245

Toyota PREMIO-ALLION · 2001 · 4,981 parts · 224 categories

4,981 items

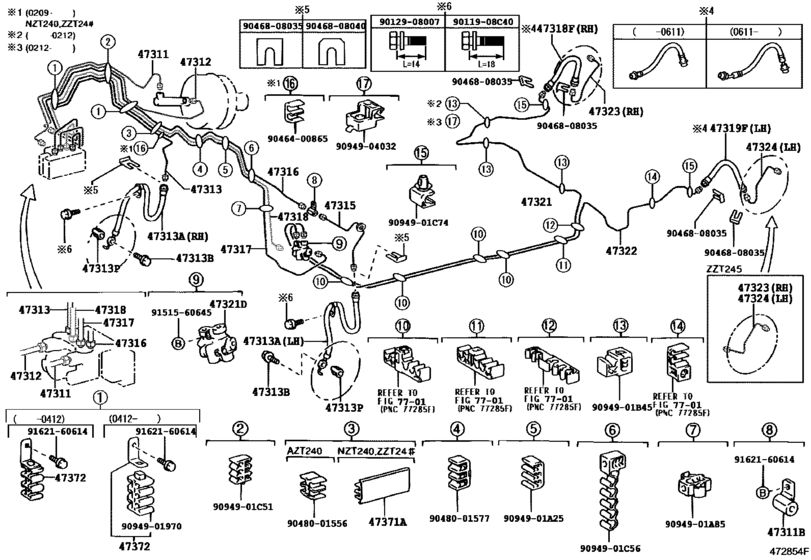

Brake Tube & Clamp ([12.2001 - ] (0112- )) 47

#	OEM	Part name
44510	44050-20070	Actuator Assy, Brake
44510	44050-20090	Actuator Assy, Brake
44510	44050-20091	Actuator Assy, Brake
44545	44545-63010	Bolt, Union(For Brake Actuator)
44546	44546-63010	Spacer, Air Inlet
44590	44590-63010	Bracket Assy, Brake Actuator
47311	47311-2B330	Tube, Front Brake, No.1
47311	90412-10167	Way(For Front Brake Tube)
47312	47312-20410	Tube, Front Brake, No.2
47313	47313-2B020	Tube, Front Brake, No.3
47313	90947-02C47	Hose, Flexible, No.1(For Front)
47313	90947-02C48	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47315	47315-12490	Tube, Front Brake, No.5
47316	47316-20670	Tube, Front Brake, No.6
47317	47317-20320	Tube, Front Brake, No.7
47318	47318-20410	Tube, Front Brake, No.8
47318	90947-02C25	Hose, Flexible(For Rear Rh)
47321	47321-20460	Tube, Rear Brake, No.1
47321	90412-10140	Valve Assy, Proportioning
47322	47322-20560	Tube, Rear Brake, No.2
47323	47323-63030	Tube, Rear Brake, No.3
47324	47324-63030	Tube, Rear Brake, No.4
47371	47371-12230	Clamp, Brake Tube, No.1
47372	47374-12050	Clamp, Brake Tube, No.1
9011908	90119-08C40	New Genuine Part
9094901	90949-01A25	Clamp, Brake Tube, No.1
9094901	90949-01A85	New Genuine Part
9094901	90949-01B45	Clamp(For Clutch Master Cylinder Tube)
9094901	90949-01C51	Clamp, Brake Tube, No.1
9094901	90949-01C56	Clamp, Brake Tube, No.2
9094901	90949-01C74	Clamp, Brake Tube, No.8
9012908007	90129-08007	New Genuine Part
9017906074	90179-06074	Nut(For Suspension Control Oil Cooler)
9017908249	90179-08249	New Genuine Part
9046400865	90464-00865	New Genuine Part
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9046808040	90468-08040	CLIP
9048001556	90480-01556	Grommet, No.2(For Front Brake Tube)
9048001577	90480-01577	GROMMET
9094901970	90949-01970	Clamp, Brake Tube, No.3
9094904032	90949-04032	Clamp, Brake Tube, No.7
9151560645	91515-60645	New Genuine Part
9162160614	91621-60614	Bolt(For Transaxle & Engine Setting)
9163160816	91631-60816	BOLT

OEM	Part name	Category
44050-20070	Actuator Assy, Brake	Brake Tube & Clamp ([12.2001 - ] (0112- ))
44050-20090	Actuator Assy, Brake	Brake Tube & Clamp ([12.2001 - ] (0112- ))
44050-20091	Actuator Assy, Brake	Brake Tube & Clamp ([12.2001 - ] (0112- ))
44545-63010	Bolt, Union(For Brake Actuator)	Brake Tube & Clamp ([12.2001 - ] (0112- ))
44546-63010	Spacer, Air Inlet	Brake Tube & Clamp ([12.2001 - ] (0112- ))
44590-63010	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47311-2B330	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47312-20410	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47313-2B020	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47315-12490	Tube, Front Brake, No.5	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47316-20670	Tube, Front Brake, No.6	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47317-20320	Tube, Front Brake, No.7	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47318-20410	Tube, Front Brake, No.8	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47321-20460	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47322-20560	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47323-63030	Tube, Rear Brake, No.3	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47324-63030	Tube, Rear Brake, No.4	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47371-12230	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47374-12050	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2001 - ] (0112- ))
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90119-08C40	New Genuine Part	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90129-08007	New Genuine Part	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90179-06074	Nut(For Suspension Control Oil Cooler)	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90179-08249	New Genuine Part	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90412-10140	Valve Assy, Proportioning	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90412-10167	Way(For Front Brake Tube)	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90464-00865	New Genuine Part	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90468-08035	CLIP	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90468-08040	CLIP	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90468-A0007	New Genuine Part	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90480-01556	Grommet, No.2(For Front Brake Tube)	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90480-01577	GROMMET	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90947-02C25	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90947-02C47	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90947-02C48	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90949-01970	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90949-01A25	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90949-01A85	New Genuine Part	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90949-01B45	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90949-01C51	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90949-01C56	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90949-01C74	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([12.2001 - ] (0112- ))
90949-04032	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([12.2001 - ] (0112- ))
91515-60645	New Genuine Part	Brake Tube & Clamp ([12.2001 - ] (0112- ))
91621-60614	Bolt(For Transaxle & Engine Setting)	Brake Tube & Clamp ([12.2001 - ] (0112- ))
91631-60816	BOLT	Brake Tube & Clamp ([12.2001 - ] (0112- ))
