ZZT231

Toyota CELICA · 1999 · 4,010 parts · 221 categories

4,010 items

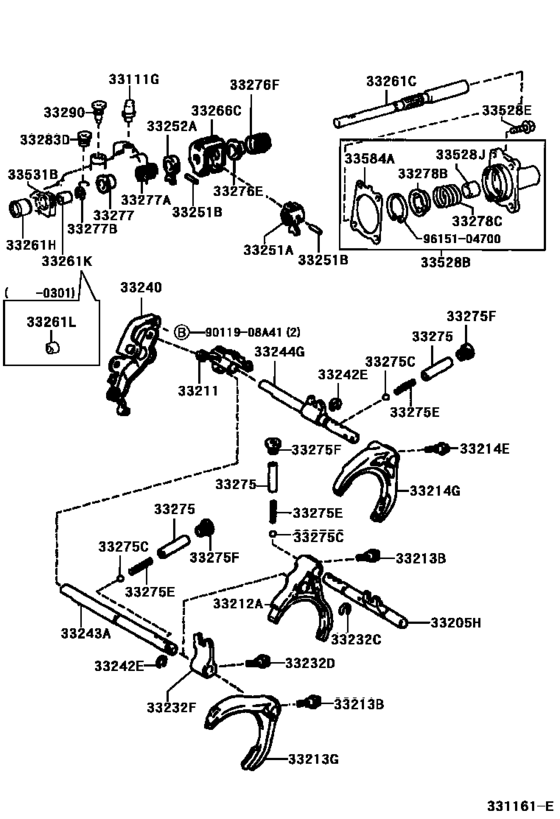

Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509)) 59

#	OEM	Part name
33111	90930-03133	Plug, Breather
33205	33205-20020	Shaft Sub-Assy, Gear Shift Fork, No.1
33205	33205-20021	Shaft Sub-Assy, Gear Shift Fork, No.1
33211	33211-12050	Fork, Reverse Shift
33212	33212-10013	Fork, Gear Shift, No.1
33213	90105-06115	Bolt(For Shift Fork Set)
33213	33213-20050	Fork, Gear Shift, No.2
33214	33230-20010	Fork, Gear Shift, No.3
33232	90520-12003	Ring(For Reverse Shift Head)
33232	33232-12012	Head, Gear Shift, No.1
33232	33232-20020	Head, Gear Shift, No.1
33240	33240-20030	Bracket Assy, Reverse Shift Arm
33243	33243-20070	Shaft, Gear Shift Fork, No.2
33244	33244-20050	Shaft, Gear Shift Fork, No.3
33244	33244-20051	Shaft, Gear Shift Fork, No.3
33251	33251-20060	Lever, Shift, Inner No.1
33251	33251-20080	Lever, Shift, Inner No.1
33251	90254-05016	Pin, Slotted Spring(For Shift Lever Shaft Set)
33251	90254-04005	Pin, Slotted Spring (For Reverse Restrict Pin)
33252	33252-20030	Lever, Shift, Inner No.2
33252	33252-20040	Lever, Shift, Inner No.2
33261	33261-20080	Shaft, Shift & Select Lever
33261	33261-20081	Shaft, Shift & Select Lever
33261	33261-20083	Shaft, 5th Shift Arm
33261	90310-15002	Seal, Oil (For Shift & Select Lever Shaft)
33261	90310-15004	Seal, Oil (For Shift & Select Lever Shaft)
33261	90369-15001	Bearing, Needle Roller (For Shift & Select Lever Shaft)
33261	90384-15002	Bush, Bimetal Formed(For Outer Select Lever)
33266	33266-20030	Plate, Shift Inter Lock
33266	33266-20040	Plate, Shift Inter Lock
33275	33275-12041	Seat, Shift Detent Ball Spring, No.1
33275	90360-10003	Ball(For Transmission Oil Pump Cover)
33275	90501-12173	Spring, Compression (For Shift Detent Ball)
33275	90341-12004	Plug, Oil Pan(For Oil Cooler)
33276	33276-12030	Seat, Select Spring, No.1
33276	90501-16167	Spring, Compression, No.1 (For Select Return)
33276	90501-27035	Spring, Compression, No.1 (For Select Return)
33277	33277-12020	Seat, Select Spring, No.2
33277	90501-16152	Spring, Compression, No.2 (For Select Return)
33277	90523-12003	Ring, E(For Reverse Restrict Pin)
33277	90501-18123	Spring, Compression, No.2 (For Select Return)
33278	33278-12020	Support, Shift & Select Lever Shaft
33278	90501-26089	Spring, Shift & Select Lever Shaft
33278	90501-18127	Spring, Shift & Select Lever Shaft
33283	90341-14008	Plug, W/head Taper Screw, No.1
33290	33290-33011	Ball Assy, Lock, No.1
33290	33290-52040	Ball Assy, Lock, No.1
33528	33506-20280	Cover, Control Shaft
33528	33506-20281	Cover, Control Shaft
33528	90119-10288	Bolt (For Control Shaft Cover)
33528	91611-61025	Bolt(For Transaxle & Engine Setting)
33528	91612-61025	Bolt (For Control Shaft Cover)
33528	90384-18017	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33528	33506-20302	Cover, Control Shaft
33528	33506-20303	Cover, Control Shaft
33531	33531-17010	Boot, Dust (For Control Shift Lever)
33584	33584-12060	Gasket, Control Shift Lever Retainer
9011908	90119-08A41	New Genuine Part
9615104700	96151-04700	Ring, Shaft Snap (For Select Spring No.1 Seat)

OEM	Part name	Category
33205-20020	Shaft Sub-Assy, Gear Shift Fork, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33205-20021	Shaft Sub-Assy, Gear Shift Fork, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33211-12050	Fork, Reverse Shift	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33212-10013	Fork, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33213-20050	Fork, Gear Shift, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33230-20010	Fork, Gear Shift, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33232-12012	Head, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33232-20020	Head, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33240-20030	Bracket Assy, Reverse Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33243-20070	Shaft, Gear Shift Fork, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33244-20050	Shaft, Gear Shift Fork, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33244-20051	Shaft, Gear Shift Fork, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33251-20060	Lever, Shift, Inner No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33251-20080	Lever, Shift, Inner No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33252-20030	Lever, Shift, Inner No.2	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33252-20040	Lever, Shift, Inner No.2	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33261-20080	Shaft, Shift & Select Lever	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33261-20081	Shaft, Shift & Select Lever	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33261-20083	Shaft, 5th Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33266-20030	Plate, Shift Inter Lock	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33266-20040	Plate, Shift Inter Lock	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33275-12041	Seat, Shift Detent Ball Spring, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33276-12030	Seat, Select Spring, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33277-12020	Seat, Select Spring, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33278-12020	Support, Shift & Select Lever Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33290-33011	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33290-52040	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33506-20280	Cover, Control Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33506-20281	Cover, Control Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33506-20302	Cover, Control Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33506-20303	Cover, Control Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33531-17010	Boot, Dust (For Control Shift Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
33584-12060	Gasket, Control Shift Lever Retainer	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90105-06115	Bolt(For Shift Fork Set)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90119-08A41	New Genuine Part	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90119-10288	Bolt (For Control Shaft Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90254-04005	Pin, Slotted Spring (For Reverse Restrict Pin)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90254-05016	Pin, Slotted Spring(For Shift Lever Shaft Set)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90310-15002	Seal, Oil (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90310-15004	Seal, Oil (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90341-12004	Plug, Oil Pan(For Oil Cooler)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90341-14008	Plug, W/head Taper Screw, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90360-10003	Ball(For Transmission Oil Pump Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90369-15001	Bearing, Needle Roller (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90384-15002	Bush, Bimetal Formed(For Outer Select Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90384-18017	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90501-12173	Spring, Compression (For Shift Detent Ball)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90501-16152	Spring, Compression, No.2 (For Select Return)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90501-16167	Spring, Compression, No.1 (For Select Return)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90501-18123	Spring, Compression, No.2 (For Select Return)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90501-18127	Spring, Shift & Select Lever Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90501-26089	Spring, Shift & Select Lever Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90501-27035	Spring, Compression, No.1 (For Select Return)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90520-12003	Ring(For Reverse Shift Head)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90523-12003	Ring, E(For Reverse Restrict Pin)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
90930-03133	Plug, Breather	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
91611-61025	Bolt(For Transaxle & Engine Setting)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
91612-61025	Bolt (For Control Shaft Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
96151-04700	Ring, Shaft Snap (For Select Spring No.1 Seat)	Gear Shift Fork & Lever Shaft (Mtm) ([08.1999 - 09.2005] C63,64 (9908-0509))
