Search › Model › ZZT231

ZZT231

Toyota CELICA · 1999 · 4,010 parts · 221 categories

4,010 items

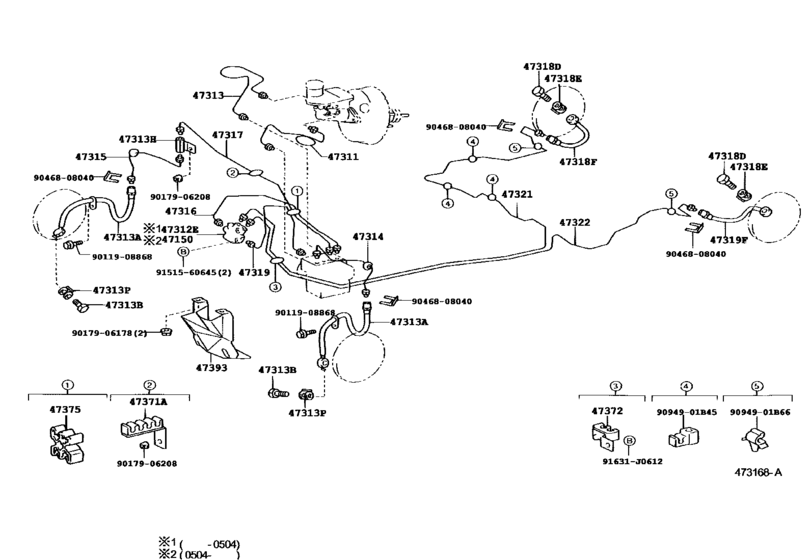

Brake Tube & Clamp ([08.2002 - ] (0208- )LHD) 36

#	OEM	Part name
47150	47150-20250	Valve Assy, Proportioning
47311	47311-2B290	Tube, Front Brake, No.1
47311	47311-2B380	Tube, Front Brake, No.1
47312	90904-12084	Way, No.2(For Front Brake Tube)
47313	47313-20880	Tube, Front Brake, No.3
47313	47313-2B070	Tube, Front Brake, No.3
47313	90947-02C23	Hose, Flexible, No.1(For Front)
47313	90947-02C24	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90412-10167	Way(For Front Brake Tube)
47313	90412-10234	Way, No.3(For Front Brake Tube)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-20720	Tube, Front Brake, No.4
47314	47314-20790	Tube, Front Brake, No.4
47315	47315-20760	Tube, Front Brake, No.5
47316	47316-20660	Tube, Front Brake, No.6
47316	47316-20720	Tube, Front Brake, No.6
47317	47317-20310	Tube, Front Brake, No.7
47317	47317-20370	Tube, Front Brake, No.7
47318	90947-02A37	Hose, Flexible(For Rear Rh)
47319	47319-20200	Tube, Front Brake, No.9
47319	47319-20240	Tube, Front Brake, No.9
47321	47321-20440	Tube, Rear Brake, No.1
47322	47322-20540	Tube, Rear Brake, No.2
47371	47371-20760	Clamp, Brake Tube, No.1
47372	47371-10200	Clamp, Brake Tube, No.2
47375	47375-35120	Clamp, Brake Tube, No.8 - BRAKE TUBE, NO.5
47393	47393-20010	Insulator, Brake Tube Heat
91631	91631-J0612	BRACKET
9094901	90949-01B45	Clamp(For Clutch Master Cylinder Tube)
9094901	90949-01B66	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9017906208	90179-06208	NUT
9046808040	90468-08040	CLIP
9151560645	91515-60645	New Genuine Part

OEM	Part name	Category
47150-20250	Valve Assy, Proportioning	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47311-2B290	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47311-2B380	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47313-20880	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47313-2B070	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47314-20720	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47314-20790	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47315-20760	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47316-20660	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47316-20720	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47317-20310	Tube, Front Brake, No.7	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47317-20370	Tube, Front Brake, No.7	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47319-20200	Tube, Front Brake, No.9	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47319-20240	Tube, Front Brake, No.9	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47321-20440	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47322-20540	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47371-10200	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47371-20760	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47375-35120	Clamp, Brake Tube, No.8 - BRAKE TUBE, NO.5	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
47393-20010	Insulator, Brake Tube Heat	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90179-06178	Nut (For Rear Wiper Arm Setting)	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90179-06208	NUT	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90412-10167	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90412-10234	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90468-08040	CLIP	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90904-12084	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90947-02A37	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90947-02C23	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90947-02C24	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90949-01B45	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
90949-01B66	New Genuine Part	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
91515-60645	New Genuine Part	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)
91631-J0612	BRACKET	Brake Tube & Clamp ([08.2002 - ] (0208- )LHD)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 221
Collected: 2026-08-02
