Search › Model › ZZE172
ZZE172

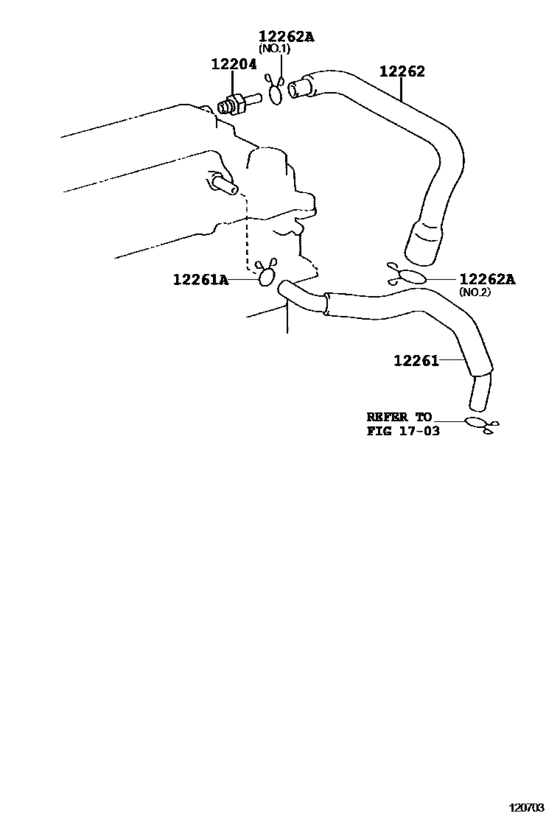

Ventilation Hose ([10.2013 - ] (1310- )1ZZFE) 6
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-22051 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-0D120 | Hose, Ventilation |
| 12261 | 90467-21152 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-22130 | Hose, Ventilation, No.2 |
| 12262 | 90466-18002 | Clip(For Ventilation Hose No.2) |
| 12262 | 90467-13103 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-22051 | Valve Sub-Assy, Ventilation | Ventilation Hose ([10.2013 - ] (1310- )1ZZFE) |
| 12261-0D120 | Hose, Ventilation | Ventilation Hose ([10.2013 - ] (1310- )1ZZFE) |
| 12262-22130 | Hose, Ventilation, No.2 | Ventilation Hose ([10.2013 - ] (1310- )1ZZFE) |
| 90466-18002 | Clip(For Ventilation Hose No.2) | Ventilation Hose ([10.2013 - ] (1310- )1ZZFE) |
| 90467-13103 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([10.2013 - ] (1310- )1ZZFE) |
| 90467-21152 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([10.2013 - ] (1310- )1ZZFE) |
