| 04474-12050 |
Cylinder Kit, Rear Wheel |

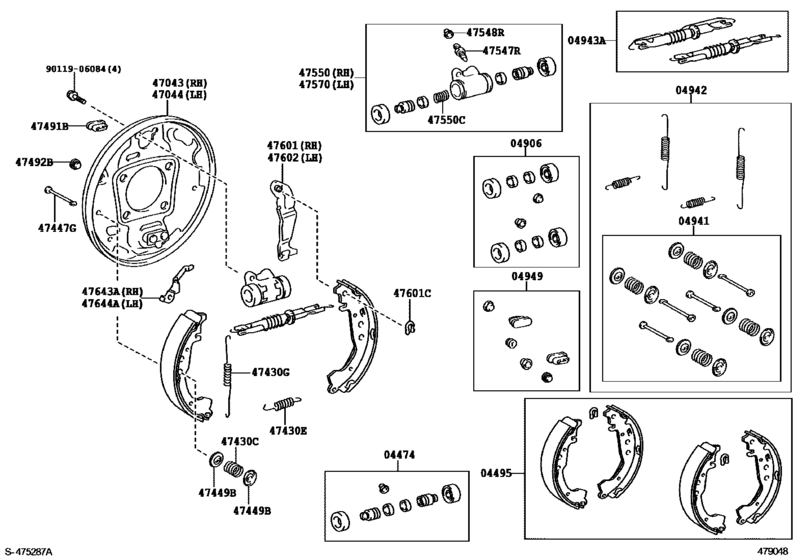

Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 04495-52120 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 04495-52121 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 04906-33030 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 04941-28010 |
Spring Kit, Rear Brake Shoe Hold Down |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 04942-13030 |
Spring Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 04943-12040 |
Strut Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 04949-13010 |
Plug Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 31478-30010 |
Bleeder Plug Cap |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47043-12490 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47044-12490 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47447-20030 |
Pin, Shoe Hold Down Spring |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47449-30020 |
Cup, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47491-20011 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47492-06010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47492-28010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47547-27030 |
Plug, Bleeder(For Front Disc Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47550-12120 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47601-12480 |
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47602-12480 |
Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47643-52120 |
Lever, Rear Brake Automatic Adjust, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 47644-52120 |
Lever, Rear Brake Automatic Adjust, Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 90119-06084 |
Bolt(For Rear Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 90213-06013 |
Washer, Type C(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 90501-09079 |
Spring, Compression(For Rear Wheel Brake Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 90501-20756 |
Spring(For Front Brake Shoe Hold Down) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 90506-18076 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
| 90506-18087 |
Spring, Tension(For Rear Brake Automatic Adjust Lever) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2013 - 04.2014] (1310-1404)ZZE172..XLI ; (1310-1404)16E,16G,18G, XLI..GCC,IDN,PHL) |
