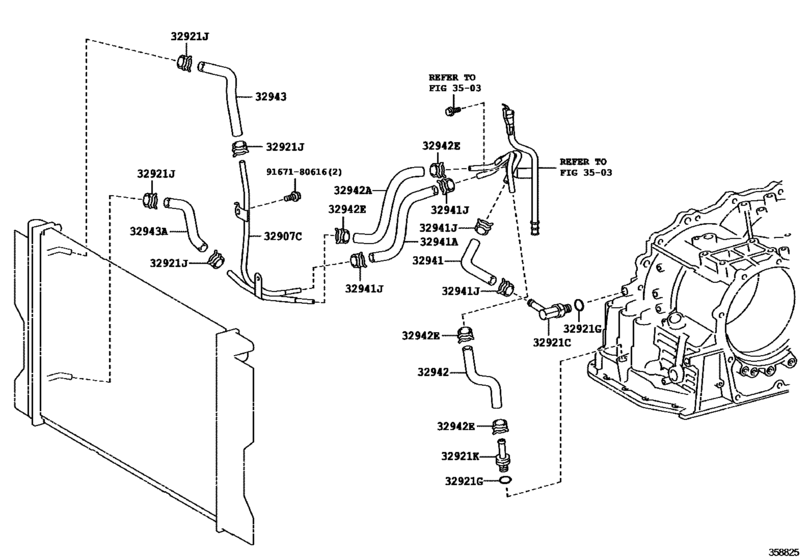

| 32907-02300 |
Tube Sub-Assy, Oil Cooler W/o Hose, No.1 |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 32943-02420 |
Hose, Transmission Oil Cooler, No.1 |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 32943-02520 |
Hose, Transmission Oil Cooler, No.2 |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 32943-02590 |
Hose, Oil Cooler Outlet, No.1 |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 32943-02600 |
Hose, Oil Cooler Inlet, No.1 |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 90301-10018 |
Ring, O(For Oil Cooler Tube Union) |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 90404-13005 |
Union(For Oil Cooler Tube) |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 90404-13007 |
Union(For Oil Cooler Tube) - NO.2(FOR OIL COOLER TUBE) |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 90445-T0021 |
Hose, Oil Cooler Inlet, No.2 |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 90445-T0022 |
Hose, Oil Cooler Outlet, No.2 |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 90466-16004 |
Clip(For Ventilation Hose No.2) |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 91671-80616 |
BOLT FLANGE |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
| 96137-41501 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Oil Cooler & Tube (Atm) ([10.2013 - ] U341E (1310- )ZZE172..4FC) |
