Search › Model › ZZE172
ZZE172

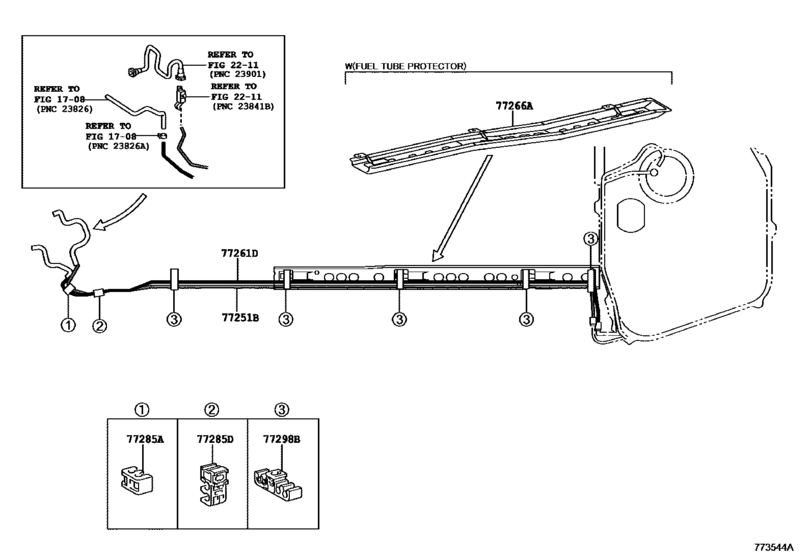

Fuel Tank & Tube ([10.2013 - ] FUEL TUBE (1310- )HTWC,HTWCF,HTWVM) 6
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-02730 | Tube, Fuel Main |
| 77261 | 77261-02530 | Tube, Fuel Tank To Canister |
| 77266 | 77266-02040 | Protector, Fuel Tube, No.1 |
| 77285 | 77285-42110 | Support, Fuel Return And Main Tube |
| 77285 | 77285-50040 | Clamp, Fuel Tube, No.1 |
| 77298 | 77298-52070 | Clamp, Fuel Tube, No.3 |
| OEM | Part name | Category |
|---|---|---|
| 77251-02730 | Tube, Fuel Main | Fuel Tank & Tube ([10.2013 - ] FUEL TUBE (1310- )HTWC,HTWCF,HTWVM) |
| 77261-02530 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([10.2013 - ] FUEL TUBE (1310- )HTWC,HTWCF,HTWVM) |
| 77266-02040 | Protector, Fuel Tube, No.1 | Fuel Tank & Tube ([10.2013 - ] FUEL TUBE (1310- )HTWC,HTWCF,HTWVM) |
| 77285-42110 | Support, Fuel Return And Main Tube | Fuel Tank & Tube ([10.2013 - ] FUEL TUBE (1310- )HTWC,HTWCF,HTWVM) |
| 77285-50040 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([10.2013 - ] FUEL TUBE (1310- )HTWC,HTWCF,HTWVM) |
| 77298-52070 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([10.2013 - ] FUEL TUBE (1310- )HTWC,HTWCF,HTWVM) |
